Outputs 4 - 20 mA, 0 - 10 V, RS232, RS485 and relays
Sensors and regulators

Terminal for power and signal RS485/RS232 - for more details please see electrical wiring below on the page.

Relay - the device is equipped with two relay outputs for alarming or controlling of external devices. It is possible to assign any input value to each relay, to set comparing limit, delay, hysteresis, acoustic alarm or change its status by means of Modbus communication protocol.

Keypad - two output relays can be configurated by means of keypad. Then any input value can be assigned, set comparing limits, hysteresis, delay or audible alarm.

Acoustic alarm - triggered alarm can be deactivated by pressing ”ESC”. This possibility can be disabled and the acoustic alarm is active for the duration alarm condition.

Three binary inputs - these inputs are not galvanic isolated, connection terminals +U are internally connected to the device power supply i.e. the +U terminals provide the same voltage level as power supply.

Design - measuring elements can be integrated into the body of device or may be on the cable with lengths of up to four meters. External probe may be designed for pressure of 25 bar.

LED signalization - visualization of binary inputs is done by three LED diodes. Other two diodes signed as ALARM 1 and 2 show alarm state and relay status.

Main features

accurate measurement of
- temperature
- humidity
- dew point
- atmospheric pressure
- two-state events
- CO₂
industrial design with protection up to IP65
- integrated sensors
- with external probe
- duct mount design
interior design
ATEX design for potentially explosive atmospheres (zone 2) on selected models
relays output 250Vac / 8A or 50 V on selected models

Applications

Building
management

Industry

Meteorology

Environments

Pharmaceuiticals
and laboratories

Sensors with Ethernet output
Web Sensors

Main features

accurate measurement of
- temperature
- humidity
- dew point
- atmospheric pressure
- two-state events
- CO₂
communication protocols
- SNMP
- Modbus TCP
- SOAP
- XML
webserver to display current and the recorded values
alarm indication via e-mail
PoE on selected models
data analysis software Comet Database

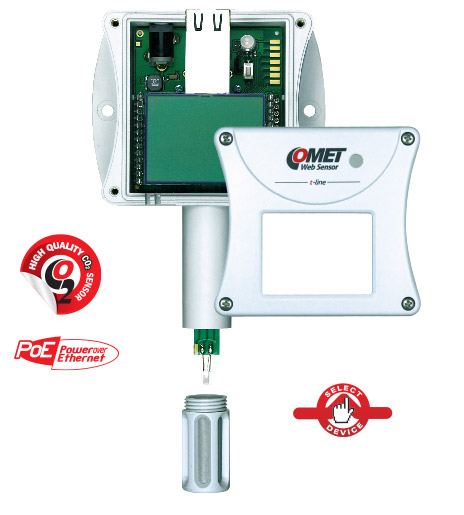

Accurate Web Sensor t-line

Connector for power adapter with output voltage 9-30 Vdc

The Ethernet RJ45 connector for cable connection

Limits of LED indication may be changed by user.

0 to 1000 ppm

1000 to 1200 ppm

1200
to 2000/10 000 ppm

Case of sensor is made of ABS which is very resistant to mechanical damage.

RTD Pt1000 temperature sensor together with state-of-the-art capacitive polymer sensor.

Sensor cover with filter from stainless steel mesh. Filtering ability is 0.025mm.

Air intakes for CO₂ measurement.

Display for current measured values.

External mounting holes for easy and fast mounting without the need to take off lid cover.

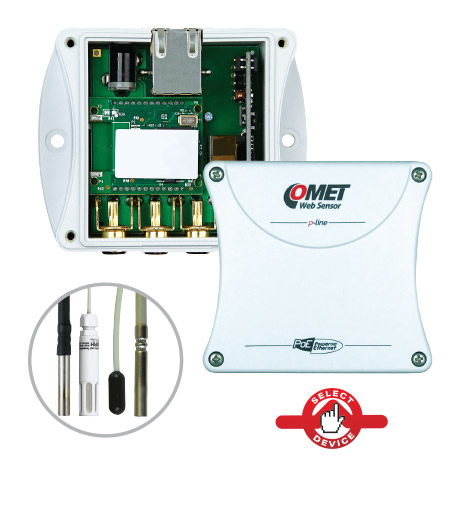

Cost effective Web Sensor p-line

Connector for power adapter with output voltage 4.9V - 6.1 Vdc

The Ethernet RJ45 connector for cable connection

Case of sensor is made of ABS which is very resistant to mechanical damage.

All temperature proves and temperature, humidity probes you can find on www.cometsystem.com

Connectors for connection external temperature and combinated temperature and humidity probes

External mounting holes for easy and fast mounting without the need to take off lid cover

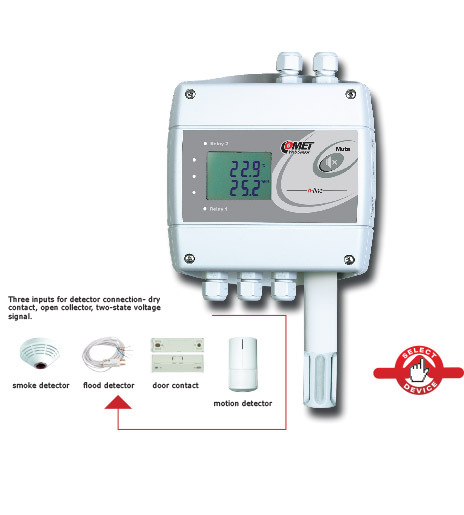

Web Sensor h-line with relays and two-state inputs

Wall mounted design

Mounting holes for mounting the unit on the wall

Network port RJ45

Power port for 9-30 Vdc

2 x relay outputs.

Button for deactivation of audible

Temperature and humidity sensor

Sensor cover with filter from stainless steel mesh. Filtering ability is 0,025mm

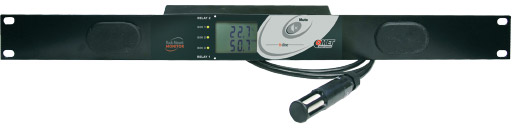

Rack mounted design

Visualization of two - state inputs is done by three LED diodes. Each relay status is indicated with other two LED diodes described as ALARM1 and ALARM2 shown also on LCD.

Glands for cables

Ethernet RJ45 connector for cable connection

Mounting brackets to rack 19″

RTD Pt1000 temperature sensor together with state-of-the-art capacitive polymer sensor

Display with keypad for setting

Web browser interface

Current measured values and sensor settings can be accessed directly through the web interface from your web browser.

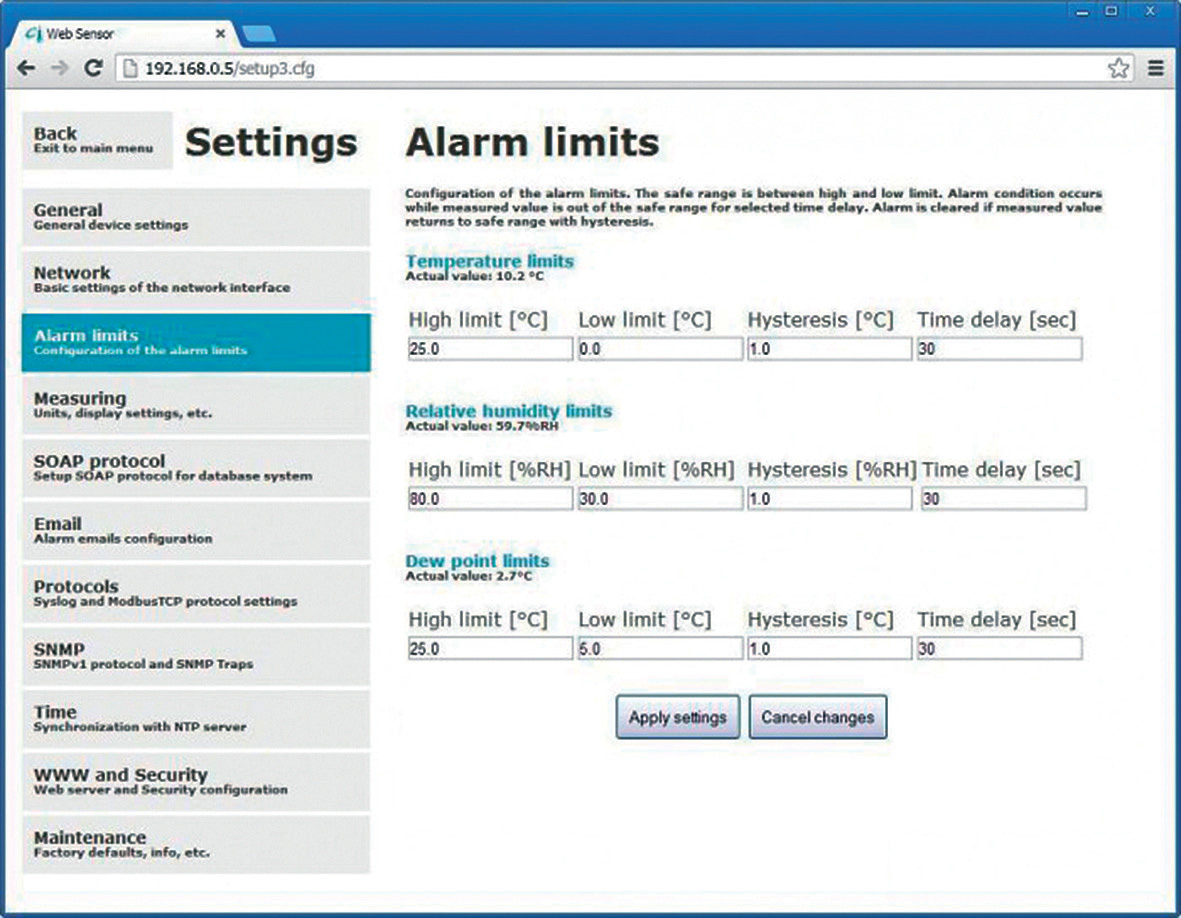

Sensor settings can also be done directly in a web browser in your PC, smartphone or tablet. All you need to do is enter the IP address of the sensor, open Settings and set up everything from communication to alarm e-mails.

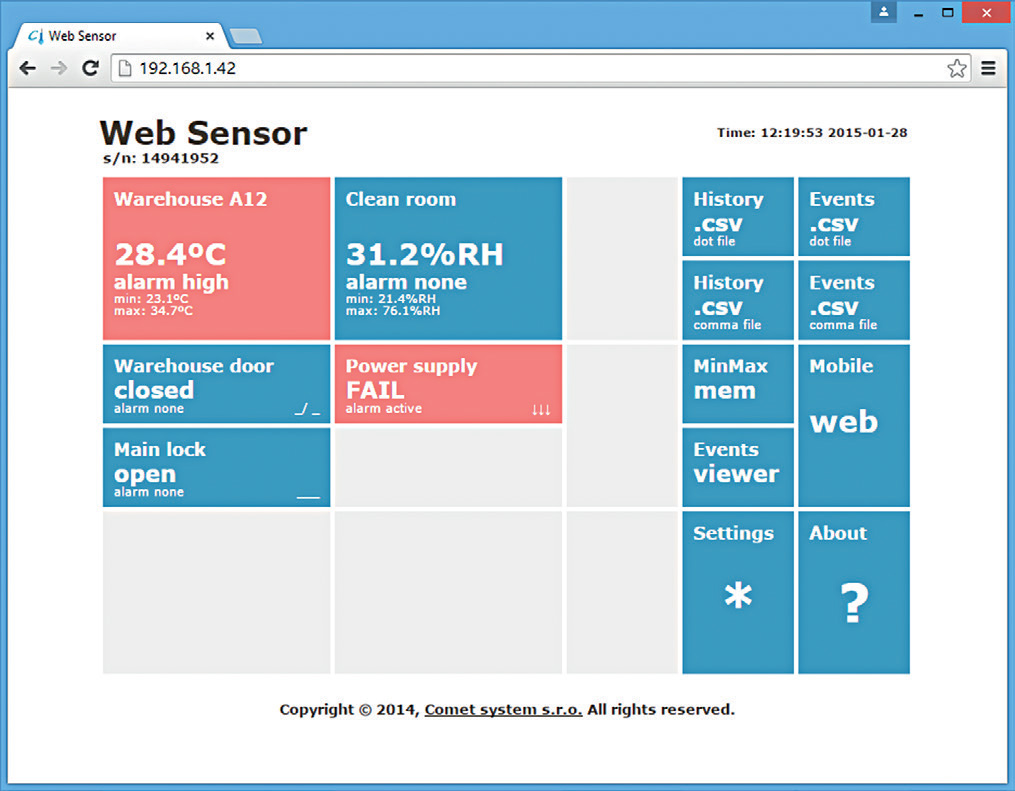

Current measured values are available on-line directly on a web browser from anywhere, all you need to do is enter the IP address. Alarms are indicated by a red field.

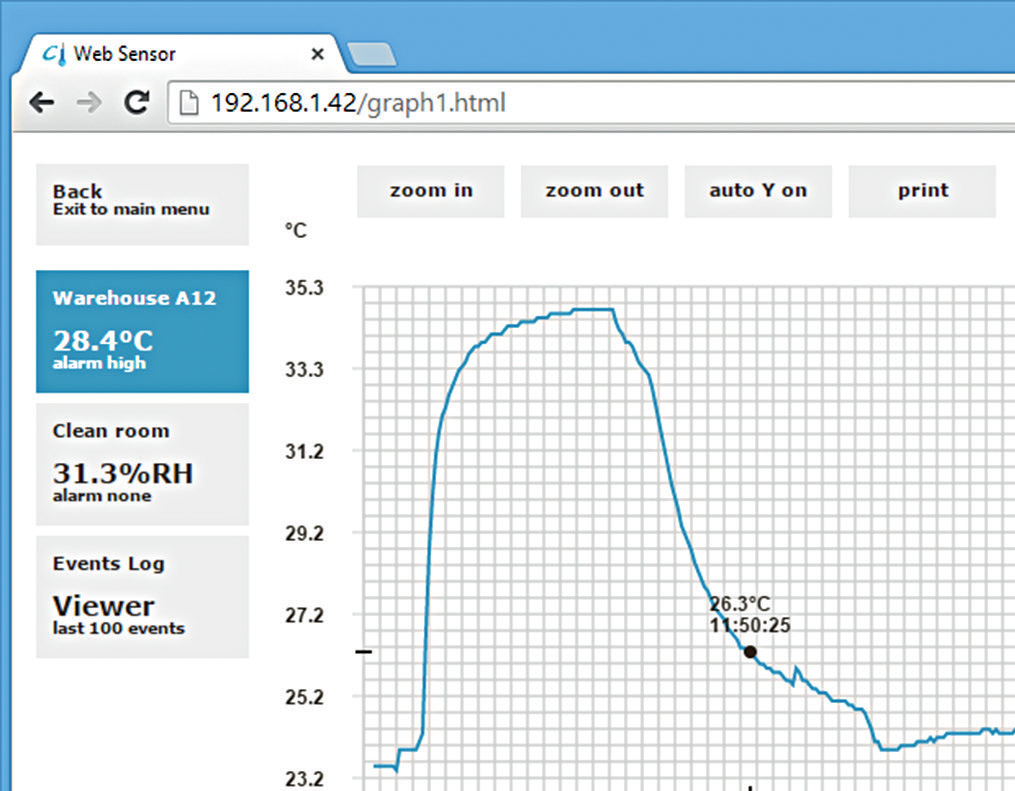

Graphs of actual values can also be displayed through a Web browser. You can display up to one thousand measured values.

Record and Analyzation

data sorage in CSV file or in the Comet Database software based on MS SQL

Comet Database software offers:

data stored in one place and accessible
with Comet Database Viewer
to provide data in table and graph
to print and export data
alarms via SMS texts and emails
acoustic and visual signalization of alarms
compatibility with all Comet System devices
and 3rd party devices
displaying of online values

Applications

Building
management

Industry

Meteorology

Environments

Pharmaceuiticals
and laboratories
