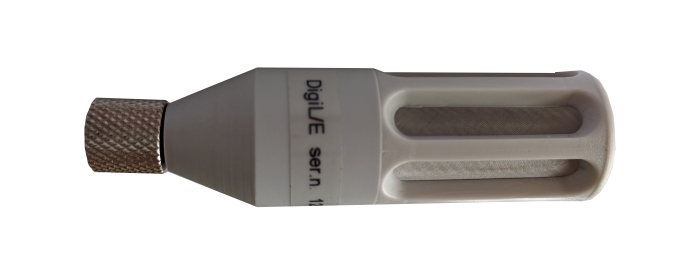

Digital temperature/humidity probe
Digital probe with connector ELKA, direct insertion.
Stainless steel mesh filter.
The probe is supplied with a calibration certificate.
The probe is interchangeable without calibration to a specific device and regardless of the length of the cable.
Optionally also available with cable of various lengths. Other cable lengths you can find in optional accessories.
-
codeDIGIL/E
Technical data
Measured value
Temperature
Relative humidity
TEMPERATURE SENSOR
Measuring range
-20 to +80 °C
Accuracy
±0.4 °C
Response time
t90 < 15 min, temperature step 20 °C, air flow 1 m/s
HUMIDITY SENSOR
Measuring range
0 to 100 % RV
Accuracy
±1.8 %RV in the range of 0 to 90 % RH at 23 °C
Response time
t90 < 9 s (humidity step 60 %RH, constant temperature)
Hysteresis
±1 % RV
Linearity
±1 % RV
DEW POINT
Measuring range
-60 to +80 °C
Accuracy
see the manual
GENERAL TECHNICAL DATA
Operating temperature
-20 to +80 °C
Protection class
IP40
Connector
ELKA

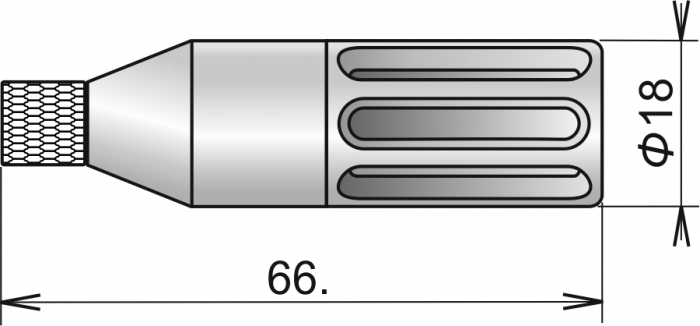

Dimensions
66 x 18 mm
Weight
cca 10 g
Warranty
3 years
Optional accessories and download
Extension cable for DIGIS and DIGIL probes, ELKA connector, cable 1 meter
code
SDP001-1
Extension cable for DIGIS and DIGIL probes with ELKA connector - 10 meters
code
SDP001-10
Extension cable for DIGIS and DIGIL probes with ELKA connector - 15 meters
code
SDP001-15
Extension cable for DIGIS and DIGIL probes with ELKA connector - 2 meters
code
SDP001-2
Extension cable for DIGIS and DIGIL probes with ELKA connector - 5 meters
code
SDP001-5
sintered bronze sensor cover
code
F0000
plastic sensor protection with stainless filter (gray)
code
F5200
PTFE sensor protection, white
code
F5300
Manuals
Instruction Manual
Declaration of Conformity
Confirmation of the functioning principles of digital probes made by COMET
