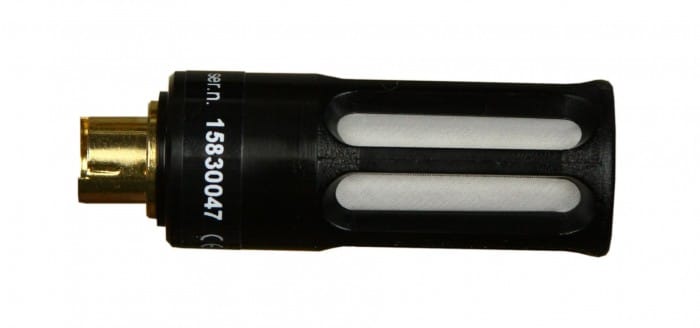

Digital temperature/humidity probe, for direct insertion

Digital temperature/humidity probe, for direct insertion
Digital temperature/humidity probe, for direct insertion
Digital temperature/humidity probe, for direct insertion
Digital temperature/humidity probe, for direct insertion

Digital probe with connector MiniDIN.

Stainless steel mesh filter.

The probe is supplied with a calibration certificate.
The probe is interchangeable without calibration to a specific device and regardless of the length of the cable.

Optionally also available with cable of various lengths. For other cable lengths use the selector.

  • code
    DIGIL/M
Add to quote

Technical data

Measured value

Temperature
Relative humidity

TEMPERATURE SENSOR

Measuring range -10 to +60 °C
Accuracy ±0.4 °C
Response time t90 < 15 min, temperature step 20 °C, air flow 1 m/s

HUMIDITY SENSOR

Measuring range 0 to 100 % RV
Accuracy ±1.8 %RV in the range of 0 to 90 % RH at 23 °C
Response time t90 < 9 s (humidity step 60 %RH, constant temperature)
Hysteresis ±1 % RV
Linearity ±1 % RV

DEW POINT

Measuring range -60 to +60 °C
Accuracy see the manual

GENERAL TECHNICAL DATA

Operating temperature -10 to +60 °C
Protection class IP40
Connector MiniDin

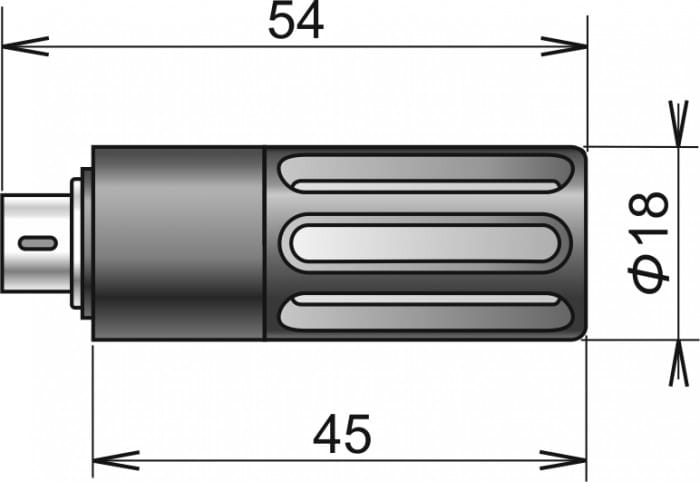

Dimensions (without cable) 54 x 18 mm
Weight cca 10 g
Warranty 3 years

Optional accessories and download

sintered bronze sensor cover

sintered bronze sensor cover

code F0000
plastic sensor protection with stainless filter (gray)

plastic sensor protection with stainless filter (gray)

code F5200
PTFE sensor protection, white

PTFE sensor protection, white

code F5300

Manuals

download-icon Instruction Manual
192.68 KB
download-icon Declaration of Conformity
63.65 KB
download-icon Confirmation of the functioning principles of digital probes made by COMET
190.69 KB
