Temperature transmitter with RS485 output
Temperature transmitter for Pt1000 sensors with two relay outputs. Outdoor, indoor use.
For external Pt1000 temperature probe. Three two-state inputs.
-
codeH4431
-
Warranty3 years
Technical data
Measured value
Temperature
Two-state signal
TEMPERATURE SENSOR - external probe Pt1000
Measuring range
-200 to +600 °C
Accuracy
±0.2 °C
Resolution
0.1 °C
RELAY OUTPUTS
Quantity
2
Maximal voltage
50 V
Maximal current
2 A
Maximal power
60 VA
BINARY INPUTS
Quantity
3
Signal for binary inputy
dry contact, open collector or two-state voltage signal.
Inputs are not galvanically isolated.
Inputs are not galvanically isolated.
Minimum pulse duration on binary input
500 ms
Voltage across open contact
< 3,3 V
Low voltage level
0 to +0,5 V
High voltage level
+3,0 to +30 V
GENERAL TECHNICAL DATA
Operating temperature
-30 to +80 °C
Channels
1x external temperature probe
Acoustic alarm
from built-in beeper - switchable
Output
RS485
Range of humidity sensor temperature compensation
all temperature range
Available temperature units
degrees Celsius, degrees Fahrenheit
Communication protocol
ModBus RTU, ARION, Advantech ADAM
Power
9-30 Vdc
Protection class
IP65 electronics; IP40 sensors
Dimensions
136 x 160 x 45 mm; stem length 75mm
Weight
approx. 350 g
Warranty
3 years
Features
Applications:
Production facilities and warehouses - Monitoring of storage conditions and production processes in the temperature range -200 ° C to + 600 ° C.
Metrology - COMET sensors together with COMET radiationshields are the ideal basis for weather stations for long-term weather, climate and air monitoring.
Healtcare and laboratories - -200 °C.
Industry and production - monitoring temperature and humidity in food, pharmaceutical, aerospace etc.
Food industry - Monitoring of critical processes according to the HACCP standard with the possibility of prompt notification of unforeseen events that could lead to the degradation of the goods.
Building management - Our instruments which measure temperature, humidity, atmospheric pressure and CO2 are an integral part of these industry-leading solutions.
Features description:
* the features may vary depending on the device type● accurate measurement of Temperature, Relative humidity, Dew point, Atmospheric pressure, CO2, Two-state events
● industrial or interior design with protection up to IP65
● industrial or interior design with protection up to IP65
● integrated sensors, external probe, duct mount design
● relays output 250Vac / 8A or 50 V on selected models
● relays output 250Vac / 8A or 50 V on selected models
Optional accessories and download
Pt1000TG8/0, temperature probe
Temperature range: -80 to 200°C
code
SN104
Pt1000TG8/0, temperature probe, cable 2 m
Temperature range: -80 to 200°C
code
SN105
Pt1000TG8/0, temperature probe, cable 5 m
Temperature range: -80 to 200°C
code
SN108
Pt1000TG8/0, temperature probe, cable 10 m
Temperature range: -80 to 200°C
code
SN113
2061-250/0 Temperature probe
Temperature range: -30 to 250°C
code
SN147
2061-250/0 2 m Temperature probe
Temperature range: -30 to 250°C
code
SN148

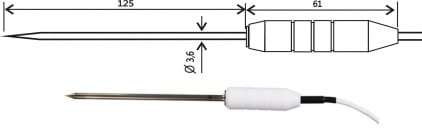

2061-250/0 5 m Temperature probe
Temperature range: -30 to 250°C
code
SN151
2061-250/0 10 m Temperature probe
Temperature range: -30 to 250°C
code
SN156
Pt1000TG7/0, temperature probe
Temperature range: -50 to 200°C
code
SN164
Pt1000TG7/0, temperature probe, cable 2 m
Temperature range: -50 to 200°C
code
SN165
Pt1000TG7/0, temperature probe, cable 5 m
Temperature range: -50 to 200°C
code
SN166
Pt1000TG7/0, temperature probe, cable 10 m
Temperature range: -50 to 200°C
code
SN167

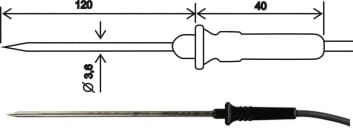

2301-220/0, temperature probe, cable 1 m
Temperature range: -30 to 220°C
code
SN168
2021-150/0, temperature probe, cable 1 m
Temperature range: -30 to 150°C
code
SN169
PTS350A-2/0, temperature probe, cable 2 m
Temperature range: -30 to 130°C
code
SN170
2034-220/0, temperature probe, cable 1 m
Temperature range: -30 to 150°C
code
SN175
2061-200/0, temperature probe, cable 1 m
Temperature range: -50 to 200°C
code
SN178
2061-200/0, temperature probe, cable 2 m
Temperature range: -50 to 200°C
code
SN179
2061-200/0, temperature probe, cable 5 m
Temperature range: -50 to 200°C
code
SN180
2061-200/0, temperature probe, cable 10 m
Temperature range: -50 to 200°C
code
SN181
PTS350A-5/0, temperature probe, cable 5 m
Temperature range: -30 to 130°C
code
SN182
PTS350A-10/0, temperature probe, cable 10 m
Temperature range: -30 to 130°C
code
SN183
Pt1000TGL40/0, temperature probe, cable 1 m
Temperature range: -30 to 80°C
code
SN185
Pt1000TGL40/0, temperature probe, cable 2 m
Temperature range: -30 to 80°C
code
SN186
Pt1000TGL40/0, temperature probe, cable 5 m
Temperature range: -30 to 80°C
code
SN187
Pt1000TGL40/0, temperature probe, cable 10 m
Temperature range: -30 to 80°C
code
SN188
Pt1000TR160/0, temperature probe, cable 1 m
Temperature range: -30 to 80°C
code
SN199
Pt1000TR160/0, temperature probe, cable 2 m
Temperature range: -30 to 80°C
code
SN200
Pt1000TR160/0, temperature probe, cable 5 m
Temperature range: -30 to 80°C
code
SN201
Pt1000TR160/0, temperature probe, cable 10 m
Temperature range: -30 to 80°C
code
SN202
Pt1000TR160/0, temperature probe, cable 15 m
Temperature range: -30 to 80°C
code
SN203
Pt1000TR160/0, temperature probe, cable 20 m
Temperature range: -30 to 80°C
code
SN204
PTS380K/0 temperature sensor with a stainless steel connection head and connector
Temperature range: -30 to 100°C
code
SN205
2091-250/0, Stick-in probe, cable 1 m
Temperature range: -50 to 250°C
code
SN210
2091-250/0, Stick-in probe, cable 2 m
Temperature range: -50 to 250°C
code
SN211
2091-250/0, Stick-in probe, cable 5 m
Temperature range: -50 to 250°C
code
SN212
2091-250/0, Stick-in probe, cable 10 m
Temperature range: -50 to 250°C
code
SN213
2071-030/0, special probe with CINCH connector
Temperature range: -30 to 80°C
code
SN214
Pt1000TG68/0, temperature probe, cable 2 m
Temperature range: -50 to 200°C
code
SN232
Pt1000TG68/0, temperature probe, cable 5 m
Temperature range: -50 to 200°C
code
SN233
Pt1000TG68/0, temperature probe, cable 10 m
Temperature range: -50 to 200°C
code
SN234
Pt1000TR125/0, temperature probe, cable 1 m
Temperature range: -190 to 150°C
code
SN239
Pt1000TR125/0, temperature probe, cable 2 m
Temperature range: -190 to 150°C
code
SN240
Pt1000TR125/0, temperature probe, cable 5 m
Temperature range: -190 to 150°C
code
SN241
Pt1000TR125/0, cryogenic temperature probe, cable 10 m
Temperature range: -190 to 150°C
code
SN242
Pt1000TR050S/0, temperature probe, cable 1 m
Temperature range: -50 to 400°C
Discontinued
Pt1000TR050S/0, temperature probe, cable 2 m
Temperature range: -50 to 400°C
Discontinued
Pt1000TR050S/0, temperature probe, cable 5 m
Temperature range: -50 to 400°C
Discontinued
Ultra thin temperature probe Pt1000TG3/0, without connector
Temperature range: -50 to 200°C
code
SN252
Ultra thin temperature probe Pt1000TG3/0, without connector, cable 2 meters
Temperature range: -50 to 200°C
code
SN254
Ultra thin temperature probe Pt1000TG3/0, without connector, cable 5 meters
Temperature range: -50 to 200°C
code
SN255
Ultra thin temperature probe Pt1000TG3/0, without connector, cable 10 meters
Temperature range: -50 to 200°C
code
SN256
Temperature probe Pt1000TR050S/0, without connector, cable 10 meters
Temperature range: -50 to 400°C
Discontinued
Ambient temperature probe, 201-80/C
Temperature range: -30 to 80°C
code
SN258
Temperature probe Pt1000TG8Ex/0, without connector, for ATEX zone II
Temperature range: -30 to 180°C
code
SN263
Temperature probe Pt1000TG8Ex/0, without connector, for ATEX zone II, cable 2 meters
Temperature range: -30 to 180°C
code
SN264
Temperature probe Pt1000TG8Ex/0, without connector, for ATEX zone II, cable 5 meters
Temperature range: -30 to 180°C
code
SN265
Temperature probe Pt1000TG8Ex/0, without connector, for ATEX zone II, cable 10 meters
Temperature range: -30 to 180°C
code
SN266
Temperature probe Pt1000TG8Ex/0, without connector, for ATEX zone II, cable 15 meters
Temperature range: -30 to 180°C
code
SN267
Pt1000TR050M/0, temperature probe, cable 1 m
Temperature range: -50 to 400°C
code
SN270
Pt1000TR050M/0, temperature probe, cable 5 m
Temperature range: -50 to 400°C
code
SN272
Pt1000TR050M/0, temperature probe, cable 10 m
Temperature range: -50 to 400°C
code
SN273
Ac/dc adapter 12V/450mA stabilized, EU
code
A1510eu
Ac/dc adapter 12V/450mA stabilized, UK
code
A1510uk
Ac/dc adapter 12V/450mA stabilized, US
code
A1510us
Holder for mounting the COMET Transmitter on magnetic surfaces
code
SP103
Motion detector JS20
code
JS20
The LD-12 flood detector
code
LD12
Magnetic door contact SA-200-A
code
SA200A
Magnetic door contact with cable length 10m
code
SA200A-10
Magnetic door contact with cable length 15m
code
SA200A-15
Magnetic door contact with cable length 2m
code
SA200A-2
Magnetic door contact with cable length 20m
code
SA200A-20
Magnetic door contact with cable length 30m
code
SA200A-30
Magnetic door contact with cable length 5m
code
SA200A-5
The optical smoke detector SD-283ST
code
SD280
Power detector SP008
code
SP008
Tool for easy connection to WAGO terminals 233 for serial output transmitters
code
SP006
code
BM512
code
PPO001
Software
Comet Database One Click Installer (21.1-V)
Database Viewer 3.20.0.0 dbapi 21.1
TSensor (3-5-5-0)
Sensor Reader (2-0-8-0)
Sensor RS485/232 utility (1-0-0-18)
Conversions - application for recalculation of values
Others
Terms and Conditions COMET System s.r.o.
Manuals
Instruction Manual
Quick Start Manual
Declaration of Conformity
Description of communication protocols of Hx3xx and Hx4xx transmitters with RS232 and RS485 communication interface
Catalogs
CATALOG - Digital sensors and regulators with serial RS485/RS232 output
Catalogue Sheets - COMET Regulators
