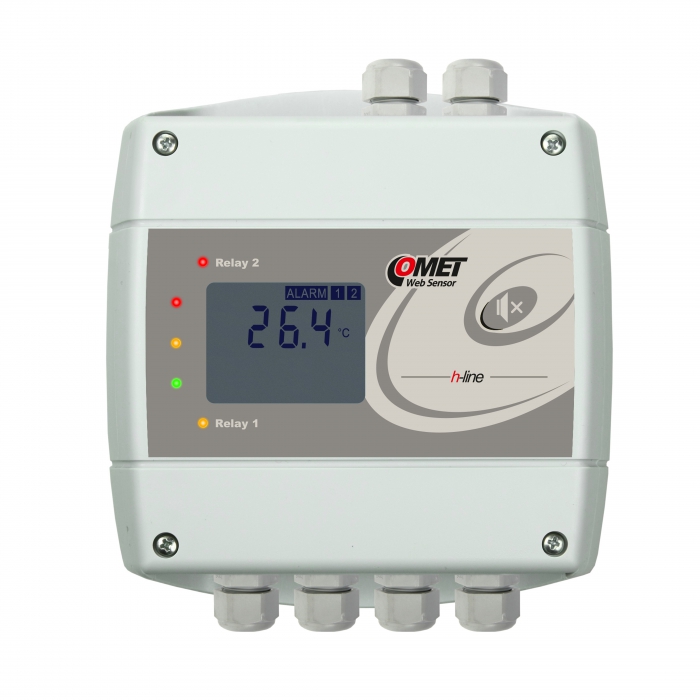

Thermometer with Ethernet interface and relays
Temperature Ethernet sensor for Pt1000 sensors with two relay outputs.
Sensor H4531 is designed for online monitoring of temperature. Three binary inputs to detection of two-states signals are the advantage. Other devices are controlled by two relay outputs.
Processing and analysis of measured data:
- online in COMET Cloud
- COMET Database software
- integration into 3-party systems
-
codeH4531
-
Warranty3 years
Technical data
Measured value
Temperature
Two-state signal
TEMPERATURE SENSOR - external probe Pt1000
Measuring range
-200 to +600 °C
Accuracy
±0.2 °C
Resolution
0.1 °C
RELAY OUTPUTS
Quantity
2
Maximal voltage
50 V
Maximal current
2 A
Maximal power
60 VA
BINARY INPUTS
Quantity
3
Signal for binary inputy
dry contact, open collector or two-state voltage signal.
Inputs are not galvanically isolated.
Inputs are not galvanically isolated.
Minimum pulse duration on binary input
500 ms
Voltage across open contact
< 3,3 V
Low voltage level
0 to +0,5 V
High voltage level
+3,0 to +30 V
GENERAL TECHNICAL DATA
Operating temperature
-30 to +80 °C
Channels
1x external temperature probe
Acoustic alarm
from built-in beeper - switchable
Output
Ethernet
Measuring interval
2 s
Range of humidity sensor temperature compensation
all temperature range
Available temperature units
degrees Celsius, degrees Fahrenheit
Communication protocol
WWW, ModbusTCP, SNMPv1, SOAP, XML
Alarm protocols
E-mail (SMTP authentication is supported), SNMP Trap, Syslog
Power
9-30 Vdc
Protection class
IP40
Dimensions
136 x 117 x 45 mm
Weight
approx. 340 g
Warranty
3 years
Optional accessories and download
Pt1000TG8/0, temperature probe
Temperature range: -80 to 200°C
code
SN104
Pt1000TG8/0, temperature probe, cable 2 m
Temperature range: -80 to 200°C
code
SN105
Pt1000TG8/0, temperature probe, cable 5 m
Temperature range: -80 to 200°C
code
SN108
Pt1000TG8/0, temperature probe, cable 10 m
Temperature range: -80 to 200°C
code
SN113

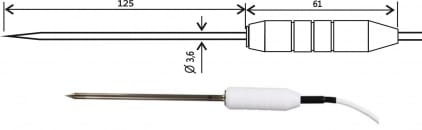

2061-250/0 Temperature probe
Temperature range: -30 to 250°C
code
SN147
2061-250/0 2 m Temperature probe
Temperature range: -30 to 250°C
code
SN148
2061-250/0 5 m Temperature probe
Temperature range: -30 to 250°C
code
SN151
2061-250/0 10 m Temperature probe
Temperature range: -30 to 250°C
code
SN156
Pt1000TG7/0, temperature probe
Temperature range: -50 to 200°C
code
SN164
Pt1000TG7/0, temperature probe, cable 2 m
Temperature range: -50 to 200°C
code
SN165
Pt1000TG7/0, temperature probe, cable 5 m
Temperature range: -50 to 200°C
code
SN166
Pt1000TG7/0, temperature probe, cable 10 m
Temperature range: -50 to 200°C
code
SN167

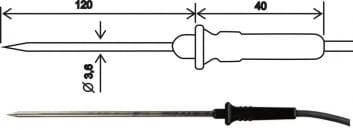

2301-220/0, temperature probe, cable 1 m
Temperature range: -30 to 220°C
code
SN168
2021-150/0, temperature probe, cable 1 m
Temperature range: -30 to 150°C
code
SN169
PTS350A-2/0, temperature probe, cable 2 m
Temperature range: -30 to 130°C
code
SN170
2034-220/0, temperature probe, cable 1 m
Temperature range: -30 to 150°C
code
SN175
2061-200/0, temperature probe, cable 1 m
Temperature range: -50 to 200°C
code
SN178
2061-200/0, temperature probe, cable 2 m
Temperature range: -50 to 200°C
code
SN179
2061-200/0, temperature probe, cable 5 m
Temperature range: -50 to 200°C
code
SN180
2061-200/0, temperature probe, cable 10 m
Temperature range: -50 to 200°C
code
SN181
PTS350A-5/0, temperature probe, cable 5 m
Temperature range: -30 to 130°C
code
SN182
PTS350A-10/0, temperature probe, cable 10 m
Temperature range: -30 to 130°C
code
SN183
Pt1000TGL40/0, temperature probe, cable 1 m
Temperature range: -30 to 80°C
code
SN185
Pt1000TGL40/0, temperature probe, cable 2 m
Temperature range: -30 to 80°C
code
SN186
Pt1000TGL40/0, temperature probe, cable 5 m
Temperature range: -30 to 80°C
code
SN187
Pt1000TGL40/0, temperature probe, cable 10 m
Temperature range: -30 to 80°C
code
SN188
Pt1000TR160/0, temperature probe, cable 1 m
Temperature range: -30 to 80°C
code
SN199
Pt1000TR160/0, temperature probe, cable 2 m
Temperature range: -30 to 80°C
code
SN200
Pt1000TR160/0, temperature probe, cable 5 m
Temperature range: -30 to 80°C
code
SN201
Pt1000TR160/0, temperature probe, cable 10 m
Temperature range: -30 to 80°C
code
SN202
Pt1000TR160/0, temperature probe, cable 15 m
Temperature range: -30 to 80°C
code
SN203
Pt1000TR160/0, temperature probe, cable 20 m
Temperature range: -30 to 80°C
code
SN204
PTS380K/0 temperature sensor with a stainless steel connection head and connector
Temperature range: -30 to 100°C
code
SN205
2091-250/0, Stick-in probe, cable 1 m
Temperature range: -50 to 250°C
code
SN210
2091-250/0, Stick-in probe, cable 2 m
Temperature range: -50 to 250°C
code
SN211
2091-250/0, Stick-in probe, cable 5 m
Temperature range: -50 to 250°C
code
SN212
2091-250/0, Stick-in probe, cable 10 m
Temperature range: -50 to 250°C
code
SN213
2071-030/0, special probe with CINCH connector
Temperature range: -30 to 80°C
code
SN214
Pt1000TG68/0, temperature probe, cable 2 m
Temperature range: -50 to 200°C
code
SN232
Pt1000TG68/0, temperature probe, cable 5 m
Temperature range: -50 to 200°C
code
SN233
Pt1000TG68/0, temperature probe, cable 10 m
Temperature range: -50 to 200°C
code
SN234
Pt1000TR125/0, temperature probe, cable 1 m
Temperature range: -190 to 150°C
code
SN239
Pt1000TR125/0, temperature probe, cable 2 m
Temperature range: -190 to 150°C
code
SN240
Pt1000TR125/0, temperature probe, cable 5 m
Temperature range: -190 to 150°C
code
SN241
Pt1000TR125/0, cryogenic temperature probe, cable 10 m
Temperature range: -190 to 150°C
code
SN242
Pt1000TR050S/0, temperature probe, cable 1 m
Temperature range: -50 to 400°C
Discontinued
Pt1000TR050S/0, temperature probe, cable 2 m
Temperature range: -50 to 400°C
Discontinued
Pt1000TR050S/0, temperature probe, cable 5 m
Temperature range: -50 to 400°C
Discontinued
Ultra thin temperature probe Pt1000TG3/0, without connector
Temperature range: -50 to 200°C
code
SN252
Ultra thin temperature probe Pt1000TG3/0, without connector, cable 2 meters
Temperature range: -50 to 200°C
code
SN254
Ultra thin temperature probe Pt1000TG3/0, without connector, cable 5 meters
Temperature range: -50 to 200°C
code
SN255
Ultra thin temperature probe Pt1000TG3/0, without connector, cable 10 meters
Temperature range: -50 to 200°C
code
SN256
Temperature probe Pt1000TR050S/0, without connector, cable 10 meters
Temperature range: -50 to 400°C
Discontinued
Ambient temperature probe, 201-80/C
Temperature range: -30 to 80°C
code
SN258
Temperature probe Pt1000TG8Ex/0, without connector, for ATEX zone II
Temperature range: -30 to 180°C
code
SN263
Temperature probe Pt1000TG8Ex/0, without connector, for ATEX zone II, cable 2 meters
Temperature range: -30 to 180°C
code
SN264
Temperature probe Pt1000TG8Ex/0, without connector, for ATEX zone II, cable 5 meters
Temperature range: -30 to 180°C
code
SN265
Temperature probe Pt1000TG8Ex/0, without connector, for ATEX zone II, cable 10 meters
Temperature range: -30 to 180°C
code
SN266
Temperature probe Pt1000TG8Ex/0, without connector, for ATEX zone II, cable 15 meters
Temperature range: -30 to 180°C
code
SN267
Pt1000TR050M/0, temperature probe, cable 1 m
Temperature range: -50 to 400°C
code
SN270
Pt1000TR050M/0, temperature probe, cable 2 m
Temperature range: -50 to 400°C
code
SN271
Pt1000TR050M/0, temperature probe, cable 5 m
Temperature range: -50 to 400°C
code
SN272
Pt1000TR050M/0, temperature probe, cable 10 m
Temperature range: -50 to 400°C
code
SN273
ac/dc adapter 230Vac to 12Vdc/1A, EU
code
A1515eu
ac/dc adapter 230Vac to 12Vdc/1A, UK
code
A1515uk
ac/dc adapter 230Vac to 12Vdc/1A, US
code
A1515us
KIT-GSM with modem
code
KIT-GSM-W
TL-POE10R - PoE splitter
code
TL-POE
300Mbps Wireless N Nano Router
code
TL-WIFI
Holder for mounting the COMET Transmitter on magnetic surfaces
code
SP103
COMET Database
code
CDB
COMET Cloud
code
cloud
Database Viewer for Comet Database
code
DBV
Motion detector JS20
code
JS20
The LD-12 flood detector
code
LD12
Magnetic door contact SA-200-A
code
SA200A
Magnetic door contact with cable length 10m
code
SA200A-10
Magnetic door contact with cable length 15m
code
SA200A-15
Magnetic door contact with cable length 2m
code
SA200A-2
Magnetic door contact with cable length 20m
code
SA200A-20
Magnetic door contact with cable length 30m
code
SA200A-30
Magnetic door contact with cable length 5m
code
SA200A-5
The optical smoke detector SD-283ST
code
SD280
Power detector SP008
code
SP008
Tool for easy connection to WAGO terminals 233 for serial output transmitters
code
SP006
Software
Comet Database One Click Installer (21.1-V)
Database Viewer 3.20.0.0 dbapi 21.1
TSensor (3-5-5-0)
Sensor Reader (2-0-8-0)
Conversions - application for recalculation of values
COMET Cloud Lite - Android (Google Play)
COMET Cloud Lite - iOS (App Store)
Others
Terms and Conditions COMET System s.r.o.
Manuals
Quick Start Manual
Declaration of Conformity
How to add WebSensor to COMET Cloud
MIB
Software development kit (SDK)
Catalogs
CATALOG - WebSensors with Ethernet output and relay Catalog
Catalogue Sheets - COMET Premium WebSensors & Regulators
Related products
COMET Database
code
CDB
Database Viewer for Comet Database
code
DBV
Thermometer with Ethernet interface and relays
code
H0530

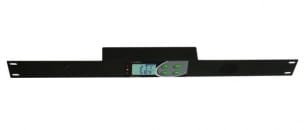

Rack mount thermometer with Ethernet interface and relays
