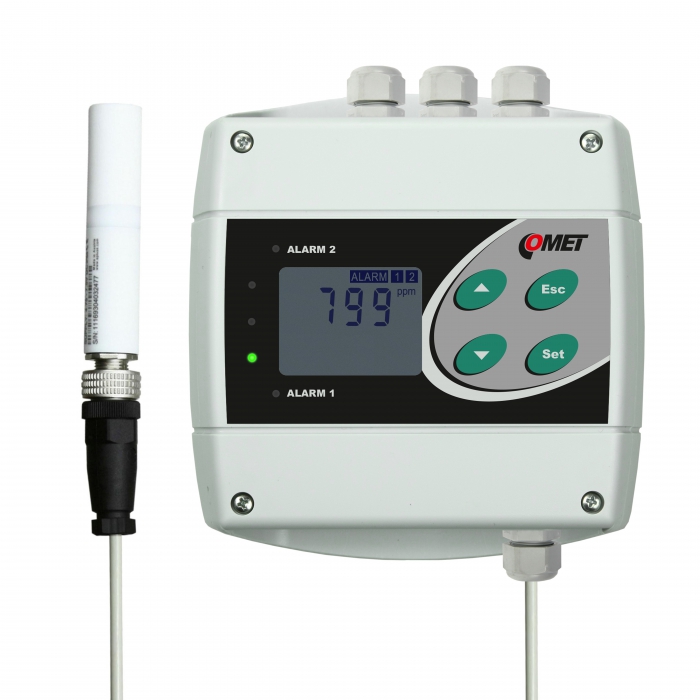

CO2 concentration transmitter with two relay outputs

CO2 concentration transmitter with two relay outputs

CO2 level transmitter with two output relays.

The device is supplied with CO2 probe with 1m cable. Cable lengths 2 or 4 meters available optionally.

Green LED shines - CO2 concentration 0 to 1000 ppm

Yellow LED shines - CO2 concentration 1001 to 1200 ppm

Red LED shines - CO2 concentration 1201 ppm and more



  • code
    H5021
  • Warranty
    3 years
Add to quote

Technical data

Measured value

CO2

CO2 SENSOR

Measuring range 0 to 10 000 ppm
Accuracy ±(100ppm +5% from reading) at 25°C and 1013hPa
Resolution 1 ppm

RELAY OUTPUTS

Quantity 2
Maximal voltage 50 V
Maximal current 2 A
Maximal power 60 VA

GENERAL TECHNICAL DATA

Operating temperature -30 to +60 °C
Channels 1x external CO2 sensor
Acoustic alarm from built-in beeper - switchable
Power 9-30 Vdc
Protection class IP65
Dimensions 136 x 150 x 45 mm
External probe cable length CO2 1 meter (optionally 2 or 4 meters)
Weight approx. 360 g
Warranty 3 years
