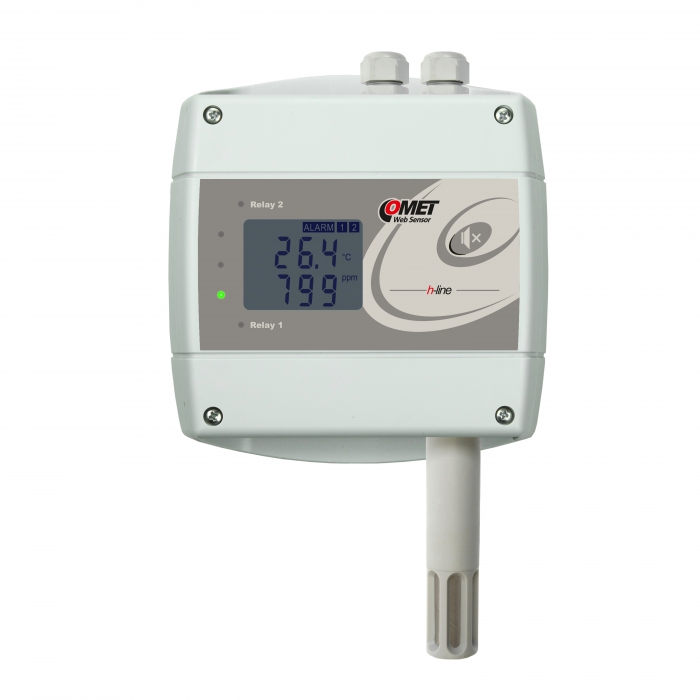

Remote CO2 concentration thermometer hygrometer with Ethernet interface and two relays

Temperature, humidity, CO2 level sensor with two output relays.

Sensor H6520 is designed for online monitoring of temperature, relative humidity and CO₂ of air without aggressive substances. Other devices are controlled by two relay outputs.

High precision capacitive polymer sensor ensures excellent long term calibration stability and ultimate accuracy. Measured values are also converted to other humidity interpretation: dew point temperature, absolute humidity, specific humidity, mixing ratio and specific enthalpy.

The CO₂ measurement is based on a 2-source, 2-beam process. CO₂ measurement with long-term stability is guaranteed thanks to the proven non-dispersive infrared (NDIR) CO₂ measurement cell. The unique patented auto-calibration procedure compensates for aging of the infrared source and guarantees high reliability, long term stability and eliminates the need of periodical recalibration in the field.

The CO2 concentration is shown on the display or signaled by a color LED.

Processing and analysis of measured data:

Possibility to extend the measuring range for an additional charge:

Measuring range: 0 to 10 000 ppm
Accuracy: 100 ppm + 5% of the measured value at 25 °C and 1013 hPa

code

H6520
Warranty

3 years

Add to quote

Technical data

Measured value

Temperature

Relative humidity

Counted values (dew point…)

CO2

TEMPERATURE SENSOR

Measuring range -30 to +80 °C

Accuracy ±0.4 °C

Resolution 0.1 °C

HUMIDITY SENSOR

Measuring range 0 to 100 % RH

Accuracy ±2.5 % RH from 5 to 95 % at 23 °C

Resolution 0.1% RH

DEW POINT

Measuring range -60 to +80 °C

Accuracy ±1.5 °C at ambient temperature T <25 °C and RH >30 %

Resolution 0.1 °C

CO₂ SENSOR

Measuring range 0 to 2000 ppm

Accuracy ±(50ppm +2% from reading) at 25°C and 1013hPa

Resolution 1 ppm

RELAY OUTPUTS

Quantity 2

Maximal voltage 50 V

Maximal current 2 A

Maximal power 60 VA

GENERAL TECHNICAL DATA

Operating temperature -30 to +60 °C

Channels internal temperature, humidity and CO₂ sensor

Counted values dew point, absolute humidity, specific humidity, mixing ratio, specific enthalpy

Acoustic alarm from built-in beeper - switchable

Output Ethernet

Measuring interval 2 s; CO₂ 15 s

Available temperature units degrees Celsius, degrees Fahrenheit

Communication protocol WWW, ModbusTCP, SNMPv1, SOAP, XML

Alarm protocols E-mail (SMTP authentication is supported), SNMP Trap, Syslog

Power 9-30 Vdc

Protection class IP30

Dimensions 136 x 213 x 45 mm; stem length 75mm

Weight approx. 340 g

Warranty 3 years

Features

Applications:

Production facilities and warehouses - Monitoring of storage conditions and production processes in the temperature range -200 ° C to + 600 ° C. Sending data to COMET Database or SCADA third-party systems.

Data centers, server rooms - Temperature and humidity monitoring, data center monitoring, RACK stands, including flood status reports, opening / closing of doors (windows), motion, smoke. SNMP monitoring, remote alarms by email and Syslog.

Healtcare and laboratories - -200 °C.

Industry and production - monitoring temperature and humidity in food, pharmaceutical, aerospace etc.

Food industry - Monitoring of critical processes according to the HACCP standard with the possibility of prompt notification of unforeseen events that could lead to the degradation of the goods.

Features description:

* the features may vary depending on the device type

● accurate measurement of Temperature, Relative humidity, Dew point, Atmospheric pressure, CO₂, Two-state events

● communication protocols SNMP, Modbus TCP, SOAP, XML

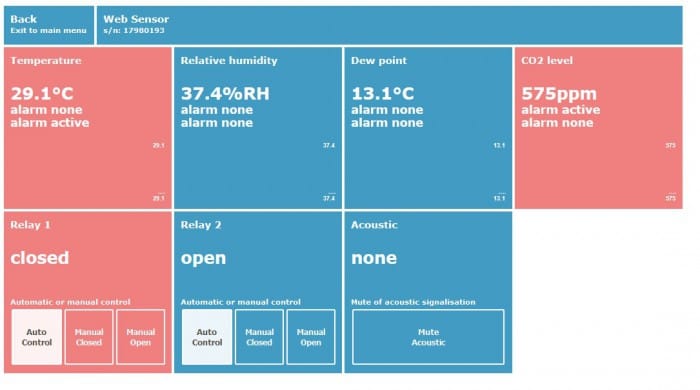

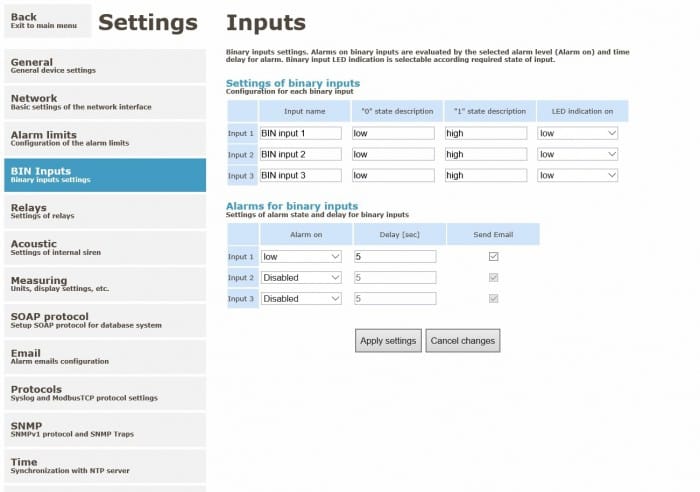

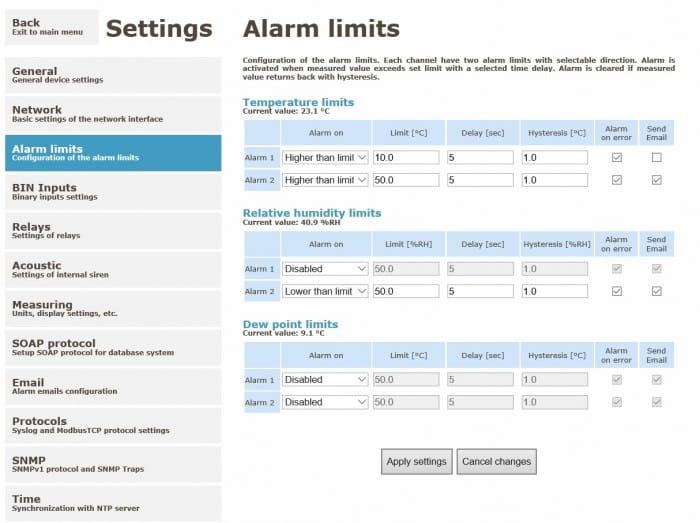

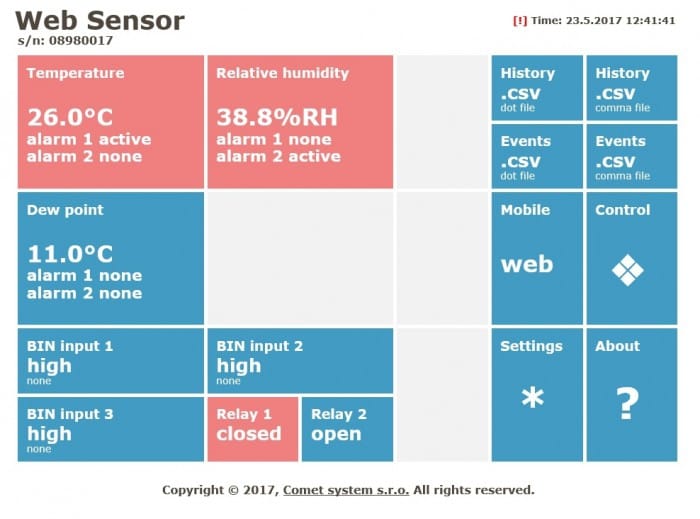

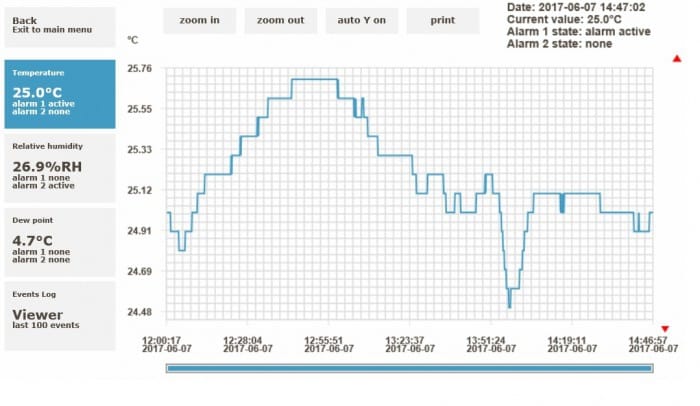

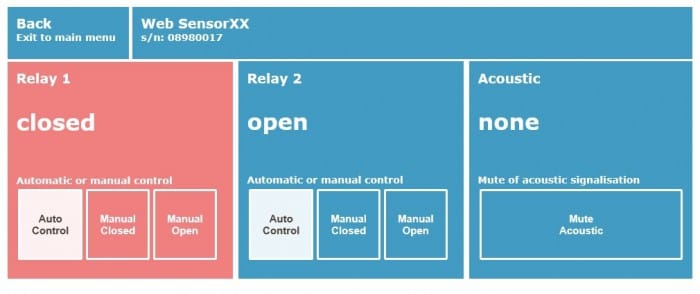

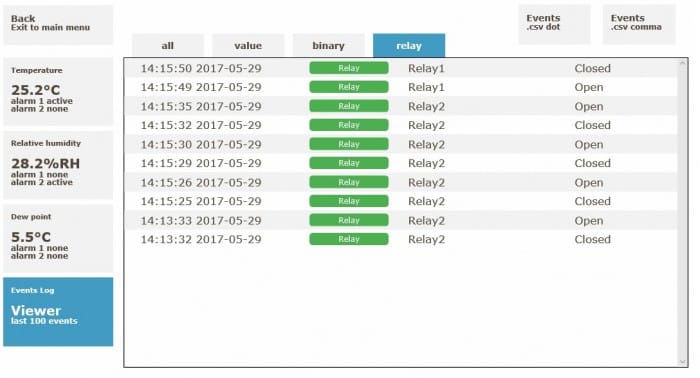

● webserver to display current and recorded values

● alarm indication via email

● selected models with PoE

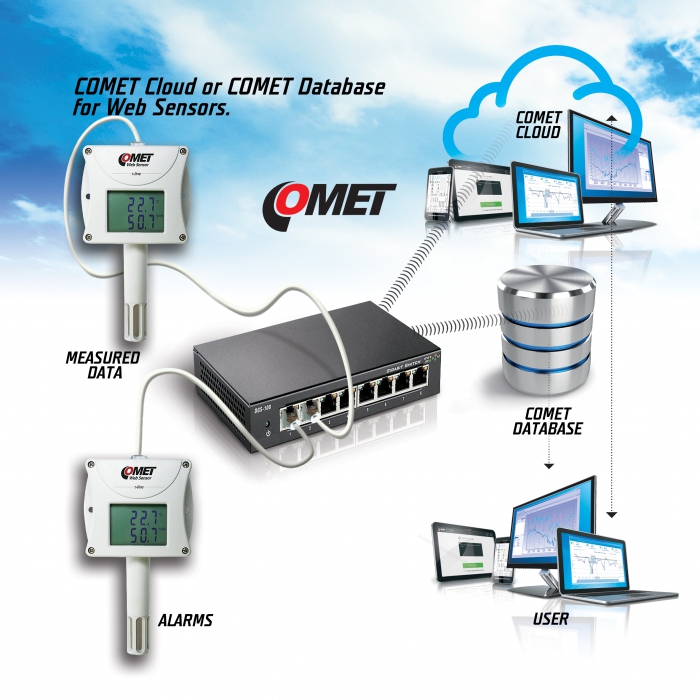

● data analysis in COMET Database software
