Sixteen Channel Data Logger with Alarms

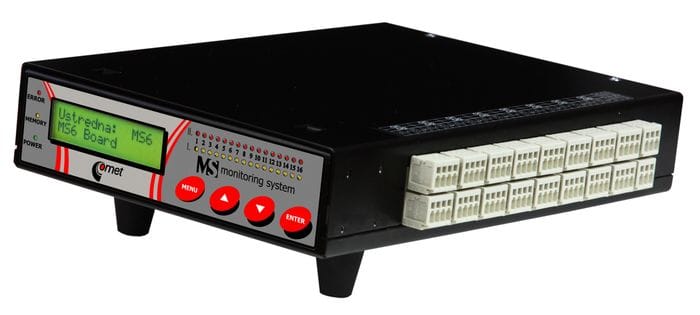

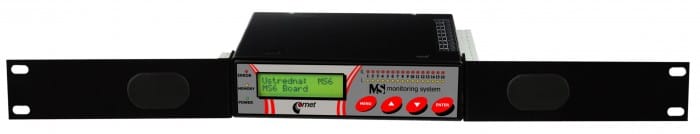

The complete solution for monitoring of temperature, humidity, pressure, CO2, voltage, current, pulses, events and other signals. Universal configurable inputs and outputs. For desktop use with rubber feet - see Optional accessories. For mounting to 19" rack - one rack unit 1U.

Data loggers are designed for measuring, recording, evaluation and subsequent processing of input electrical signals, which are subject to relatively slow changes (> 1s). In conjunction with the appropriate sensors and transducers are suitable for monitoring physical quantities.

The device includes traceable calibration certificate with declared metrological traceability of etalons is based on requirements of EN ISO / IEC 17025. The calibration sheet is always loaded as modules.
If the defined required configuration of inputs by, calibration certificate proves calibration inputs according to the required configuration - more than one range for each of the 16 inputs.

Processing and analysis of measured data (with connected optional Ethernet module):

online in COMET Cloud
COMET Database software

code

MS6R
Warranty

3 years

Add to quote

Technical data

Measured value

Temperature

Relative humidity

Current

Voltage

Two-state signal

Frequency

Resistance

Event logging

GENERAL TECHNICAL DATA

Operating temperature 0 to +50 °C

Channels 1 to 16 inputs - software configurable

Memory 2MB (up to 480 000 values)

Memory type internal SRAM, backed-up by Lithium battery

Recording interval adjustable individually for all input channels from 1 second to 24 hours

Recording interval noncyclic - data logging stops after filling the memory
cyclic - after filling memory oldest data is overwritten by new

Real time clock year, leap year, month, day, hour, minute, second, backed-up by Lithium battery

Resolution of the AD converter (analog channels) 16 bits, conversion duration approximately 60ms/channel

Communication speed 9600, 19200, 57600, 115200 Bd, 230400* Bd (* pro USB, Ethernet)

Communication protocol www, XML, SNMP, SOAP, ModbusTCP

Alarm protocols email, SNMP trap, Syslog

Power 24 Vdc

Protection class IP20

Dimensions (including connectors) 225 x 230 x 44 mm - one rack unit 1U

Dimensions without rack holders 225 x 230 x 44 mm - one rack unit 1U

Weight approx. 800 g

Warranty 3 years

Parameters of configurable inputs

Download

Features

Device enables:

to measure and process 1 to 16 input signals
to acquire autonomous time record of measured values
create alarm states
to perform other actions based on created alarms (audible, visual indication, controlling of relay outputs, sending SMS message, controlling of telephone dialer, sending of messages via several protocols of the Ethernet interface etc.)
to monitor on-line measured values and states
independent hysteresis setting, delay (for each channel separately)
setting up to four alarm conditions (for each channel separately)

Applications:

Building management - Our instruments which measure temperature, humidity, atmospheric pressure and CO2 are an integral part of these industry-leading solutions.

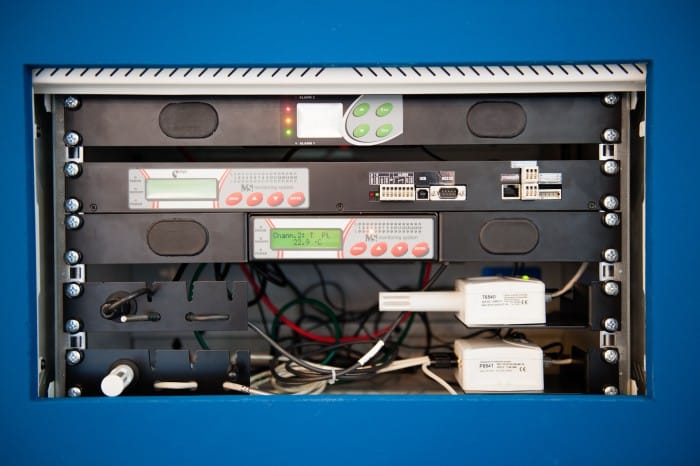

Data centers, server rooms - Temperature and humidity monitoring, data center monitoring, RACK stands, including flood status reports, opening / closing of doors (windows), motion, smoke. SNMP monitoring, remote alarms by email and Syslog.

Registration of temperature, carbon dioxide (CO₂) and other critical parameters in the context of GLP or GMP regulations.

Industry and production - monitoring temperature and humidity in food, pharmaceutical, aerospace etc.

Food industry - Monitoring of critical processes according to the HACCP standard with the possibility of prompt notification of unforeseen events that could lead to the degradation of the goods.

Registration and tracking of processes, registration of various parameters.

Common connectivity options:

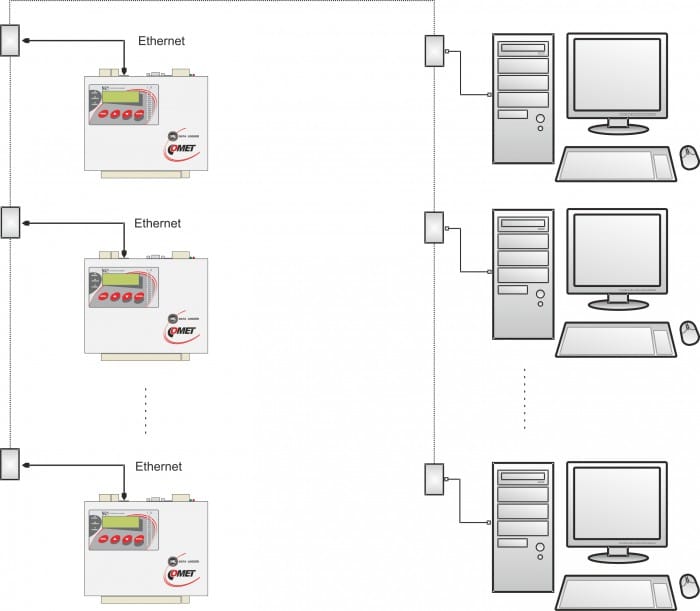

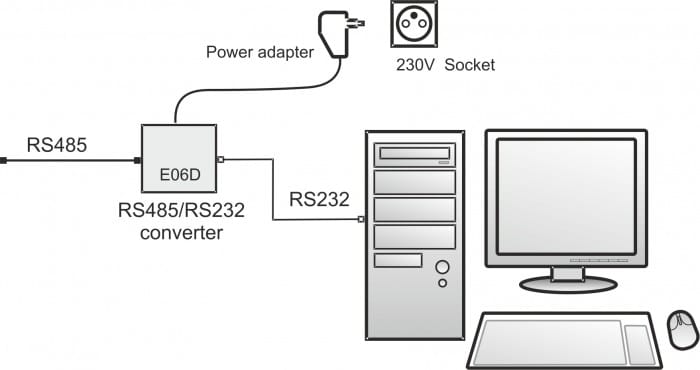

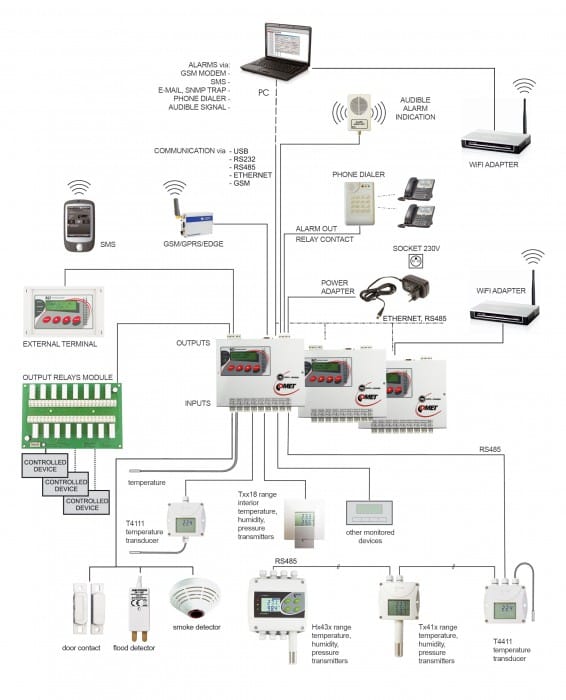

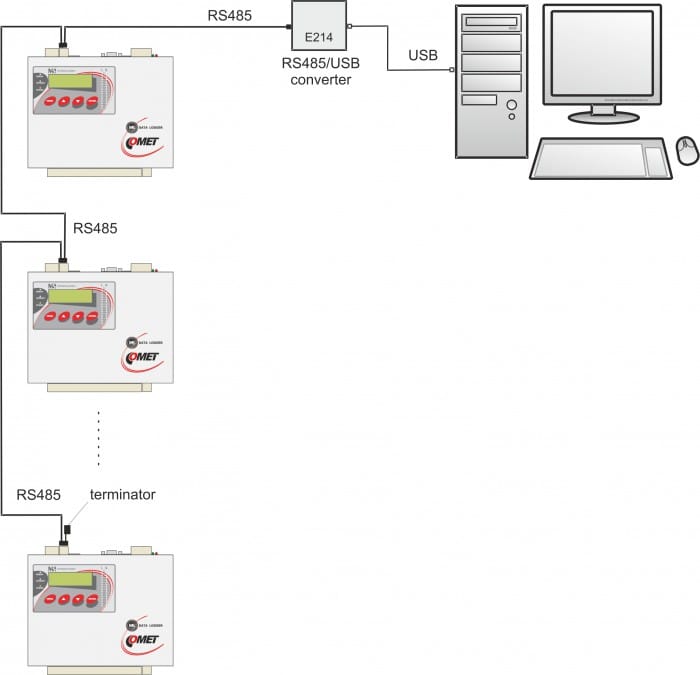

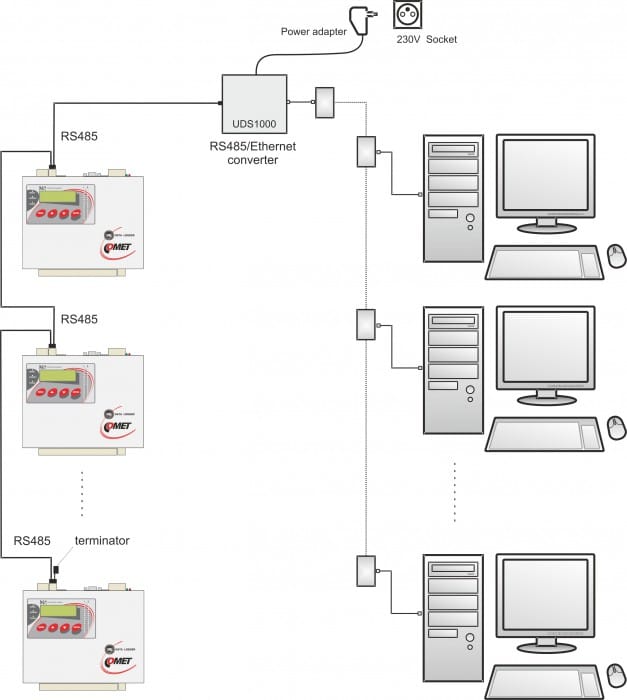

Monitoring system MS may be configured for almost any desired measurement application. Sensors can be wired to datalogger in star-like connection as well as in serial. Combination of both is also possible. The monitoring system MS is characterized by a wide range of communication interfaces such as the RS232, RS485, USB, Ethernet and GSM or GPRS modem. Thanks to Wi-Fi routers several measuring systems MS can be wirelessly connected to a network.

Parameters and measuring ranges of configurable inputs MS6D

The monitoring systems MS6xx is equipped with 16 freely programmable universal inputs. Each of them can be set to the input signal according to the table below. The monitoring system is thus very flexible and offers ease of use. The RS485 input must be ordered separately if you want to use the Modbus or Advantech communication interface.

Measured Values		Range	Accuracy	Note
current	DC	4 to20 mA	±0.1% FS (±0.02mA)	It is possible to connect pasive sensors (powered by monitoring system) or active sensor with its own power supply. Input resistance about 110 Ohms.
voltage	DC	-10V to +10V	±0.1% FS (±10 mV)	input resistance about 10MOhms
		-1V to +1V	±0.1% FS (±1 mV)
		-100mV to +100mV	±0.1% FS (±100 uV)
		-18mV to +18mV	±0,1% FS (±18 uV)
resistance	two-wire resistance measurement	0 to 300 Ohms	±0.1% FS (±0.3 Ohms)	measuring current approximately 0.8 mA @ 50ms pulse
		0 to 3000 Ohms	±0.1% FS (±3 Ohms)	measuring voltage approximately 0.5mA @ 50ms pulse
		0 to 10000 Ohms	±0.1% FS (±10 Ohms)	measuring current approximately 0.1mA @ 50ms pulse
temperature probes Pt and Ni	Ni1000	-50°C to +250°C	±0.2°C (-50°C to 100°C)	Ni1000/6180 ppm, two-wire connectioní
			±0.2% MH (100°C to 250°C)	measuring current approximately 0.5mA @ 50ms pulse
	Pt100	-200°C to +600°C	±0.2°C (-200°C to +100°C)	Pt100/3850 ppm, two-wire connection
			±0.2% MH (+100°C to +600°C)	measuring current approximately 0.8mA @ 50ms pulse
	Pt1000	-200°C to +600°C	±0.2°C (-200°C to+100°C)	Pt1000/3850 ppm, two-wire connection
			±0.2% MH (+100°C až +600°C)	measuring current about 0.5mA @ 50ms pulse
thermocouple	K (NiCr-Ni)	-200°C to 1300°C	±0.3% MV + 1.5°C*	linearized, with cold junction compensation, datalogger must be placed in recommendend working position
	T (Cu-CuNi)	-200°C to 400°C
	J (Fe-Co)	-200°C to 750°C
	S (Pt10%Rh-Pt)	0 to 1700°C
	N (NiCrSi-NiSiMg)	-200°C to 1300°C
	B (Pt30%Rh-Pt)	100°C to 1800°C	±0.3% MV+1.0°C (300°C to 1800°C)	linearized without cold junction compensation
thermistor	NTC with selectable formula	up to maximum thermistor resistance 11 000 ohms	according to used resistance range (see measurement of resistance)	the same characteristics for all connected thermistors
				default settings: R25=2252Ω, R80=282.7Ω
binary signal	potential-less contact	binary signal		input voltage for state "L" (IN-COM) < 0.8 V
				input voltage for state "H" (IN-COM) > 2 V
	open collector			resistance of closed contact for state "L" (IN-COM) < 1 kOhms
	voltage levels			resistance of closed contact for state "H" (IN-COM) > 10 kOhms
				minimum duration for sensing of change: 200ms
RS485	input for serial signal RS485	on request		input serves for reading from devices supporting protocol ModBus RTU or Advantech
				connected to terminals next to terminals for channel 15 and 16
				input can work with 16 devicesi
				Galvanically isolated.

Main features:

● software configurable inputs for temperature sensors Pt and Ni, thermocouples and thermistors, voltage and current, two-state events, resistance, sensors with RS485 output
