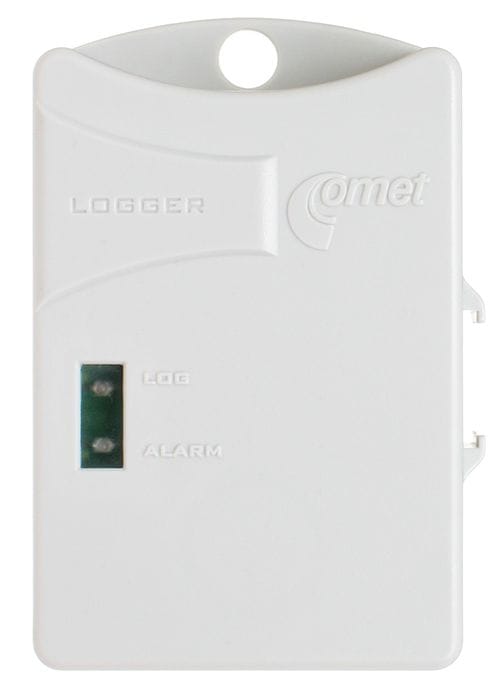

Datalogging Thermometer

Temperature datalogger is designed for record of temperature. Values are stored to a non volatile electronic memory. Data transfer to the personal computer for further analysis is performed via USB, RS232, GSM.

The device includes Traceable calibration certificate with declared metrological traceability of etalons is based on requirements of EN ISO/IEC 17025 standard.

For communication with the PC must be from Optional accessories ordered USB adapter or COM adapter or start/stop magnet if is needed to control logging the other way than directly from computer.

code

R0110
Warranty

3 years

Add to quote

Technical data

Measured value

Temperature

TEMPERATURE SENSOR

Measuring range -40 to +80 °C

Accuracy ±0.4 °C

Resolution 0.1 °C

GENERAL TECHNICAL DATA

Operating temperature -40 to +80 °C

Channels internal temperature sensor

Memory 32,000 values (non-cyclic record)

Recording interval adjustable from 10 s to 24 h

Display and alarm refresh each 10 s

Recording mode noncyclic - data logging stops after filling the memory
cyclic - after filling memory oldest data is overwritten by new

Real time clock year, leap year, month, day, hour, minute, second

Power lithium battery 3.6 V; size AA

Battery life 7 years

Protection class IP67

Dimensions 93 x 64 x 27 mm

Weight (including batteries) approx. 100 g

Warranty 3 years

Features

Applications:

Healtcare and laboratories - Monitoring of storage areas at temperatures up to -90 ° C.

Food industry - Monitoring of critical processes according to the HACCP standard with the possibility of prompt notification of unforeseen events that could lead to the degradation of the goods.

Industry and production - monitoring temperature and humidity in food, pharmaceutical, aerospace etc.

Production facilities and warehouses - Monitoring of storage conditions and production processes in the temperature range -90 ° C to + 260 ° C.

Metrology - COMET sensors together with COMET radiationshields are the ideal basis for weather stations for long-term weather, climate and air monitoring.

Features description:

* the features may vary depending on the device type

● accurate measurement of Temperature, Humidity, Dew point, Current (4 – 20 mA), Voltage (0 – 5 V, 0 – 10 V), Pulses, Events
● nonvolatile memory for 32 000 values
● indication of alarm conditions via email, SMS or visually
● software for data analysis on PC
● communication interfaces - USB, RS232, GSM modem, Ethernet
● rugged design with protection up to IP67
● battery life up to 7 years
