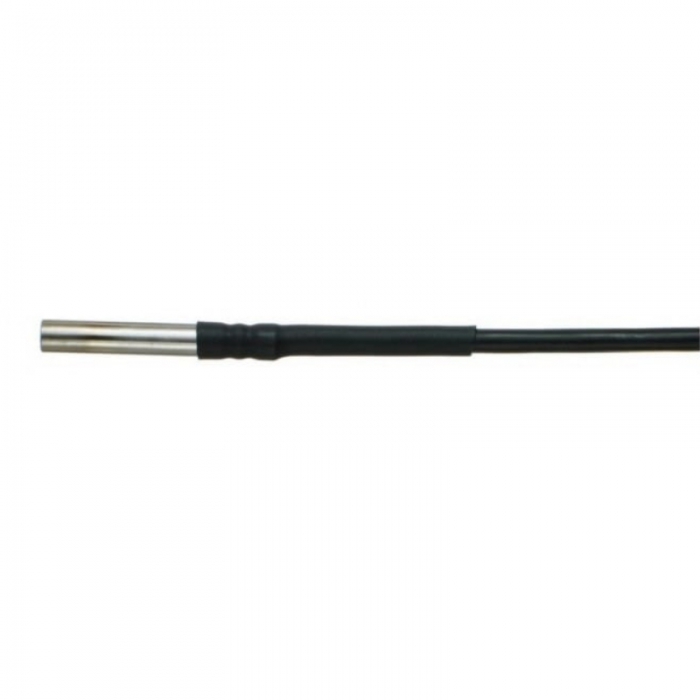

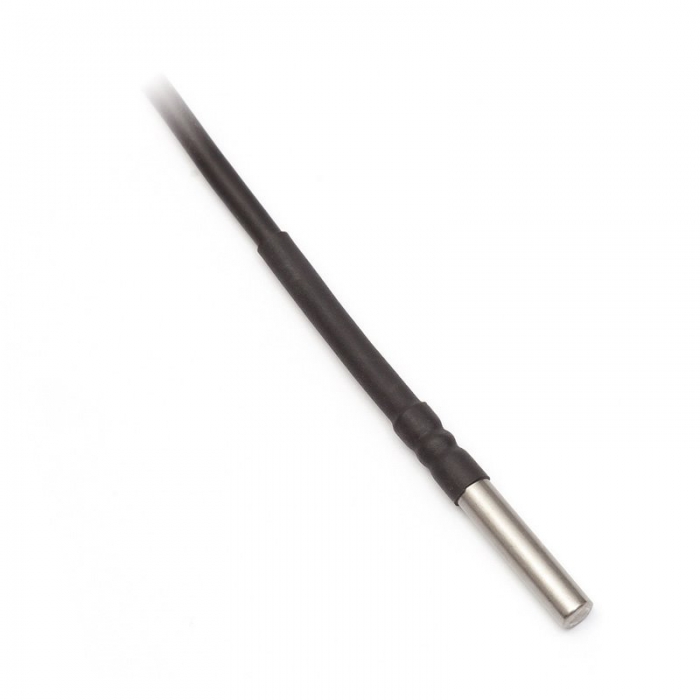

Pt1000TG8/E, temperature probe, cable 5 m
Multi-purpose watertight IP67 probe -80 to +200°C.

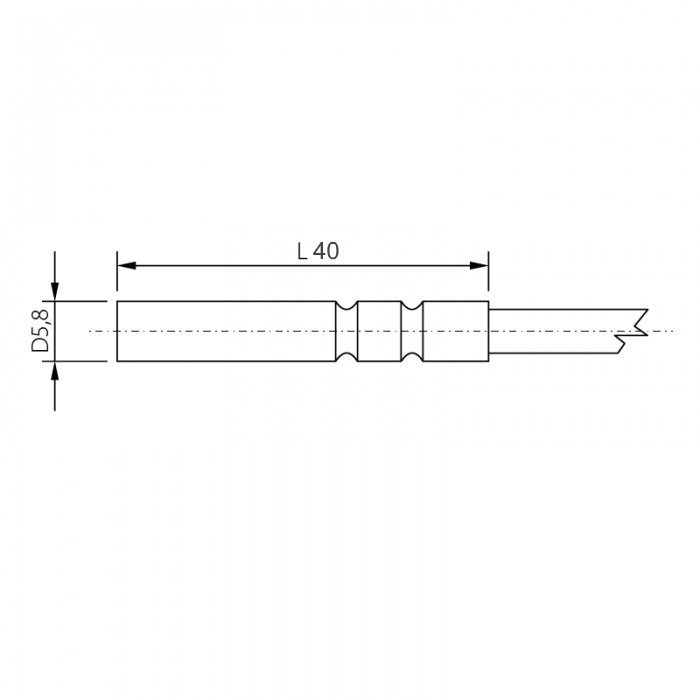

Stainless steel 17241 with silicone cable of specified length, with ELKA connector. Diameter 5.7mm, length 40mm. Time response t63<10s, t95<30s, measured in fluid. Time response t63<60s, t95<150s, measured in airflow 1m/s.
Measuring range: -50°C** to 200°C
** For static position of lead-in cable, the sensor can operate in temperatures from -80 °C
Optionally also available with cable of various lengths. For other cable lengths use the selector.
-
codeSN108E
Technical data
Measured value
Temperature
TEMPERATURE SENSOR
Measuring range
-50 to +200 °C
-80 to +200 °C (for static position of lead-in cable)
-80 to +200 °C (for static position of lead-in cable)
Accuracy
± (0.15 + 0.002 t) at °C
Accuracy class
A
Time response
t0.5 <7 s (in flowing water at > 0.2 m/s)
t63 <10s, t95 <30s (in liquid)
t63 <60s, t95 <150s (air flow 1m/s)
t63 <10s, t95 <30s (in liquid)
t63 <60s, t95 <150s (air flow 1m/s)
Type of sensing element
Pt1000
Temperature coefficient
3850 ppm / °C
GENERAL TECHNICAL DATA
Wire connection
2-wire connection
Material of the case
stainless steel DIN 1.4301
Dimensions of the case
length 40 mm;
diameter 5.7 ± 0.1 mm
diameter 5.7 ± 0.1 mm
Lead-in cable
silicone shielded
Length of lead-in cable
5 meters
Connector
ELKA
IP protection
IP67
Warranty
30 months
