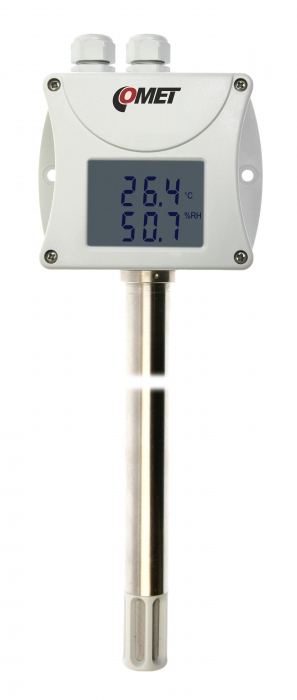

Temperature and humidity bar type transmitter with RS485 output

Humidity, temperature transmitter. Outdoor, indoor use. Bar type.

Relative humidity, temperature sensors at 700mm stem. Measured values are also converted to other humidity interpretation: dew point temperature, absolute humidity, specific humidity, mixing ratio, specific enthalpy.

code

T3417
Warranty

3 years

Add to quote

Technical data

Measured value

Temperature

Relative humidity

Counted values (dew point…)

TEMPERATURE SENSOR

Measuring range -30 to +125 °C

Accuracy ±0.4 °C

Resolution 0.1 °C

HUMIDITY SENSOR

Measuring range 0 to 100 % RH

Accuracy ±2.5 % RH from 5 to 95 % at 23 °C

Resolution 0.1% RH

DEW POINT

Measuring range -60 to +80 °C

Accuracy ±1.5 °C at ambient temperature T <25 °C and RH >30 %

Resolution 0.1 °C

GENERAL TECHNICAL DATA

Operating temperature -30 to +80 °C

Channels internal temperature and humidity sensor

Counted values dew point, absolute humidity, specific humidity, mixing ratio, specific enthalpy

Output RS485

Range of humidity sensor temperature compensation all temperature range

Available temperature units degrees Celsius, degrees Fahrenheit

Communication protocol ModBus RTU, ARION, Advantech ADAM

Power 9-30 Vdc

Protection class IP65 electronics; IP40 sensors

Dimensions 88,5 x 94 x 39,5 mm; stem length 700 mm

Weight approx. 580 g

Warranty 3 years

Features

Applications:

Production facilities and warehouses - Monitoring of storage conditions and production processes in the temperature range -200 ° C to + 600 ° C.

Metrology - COMET sensors together with COMET radiationshields are the ideal basis for weather stations for long-term weather, climate and air monitoring.

Healtcare and laboratories - -200 °C.

Industry and production - monitoring temperature and humidity in food, pharmaceutical, aerospace etc.

Food industry - Monitoring of critical processes according to the HACCP standard with the possibility of prompt notification of unforeseen events that could lead to the degradation of the goods.

Building management - Our instruments which measure temperature, humidity, atmospheric pressure and CO2 are an integral part of these industry-leading solutions.

Features description:

* the features may vary depending on the device type

● accurate measurement of Temperature, Relative humidity, Dew point, Atmospheric pressure, CO₂, Two-state events
● industrial or interior design with protection up to IP65

● integrated sensors, external probe, duct mount design
● relays output 250Vac / 8A or 50 V on selected models
