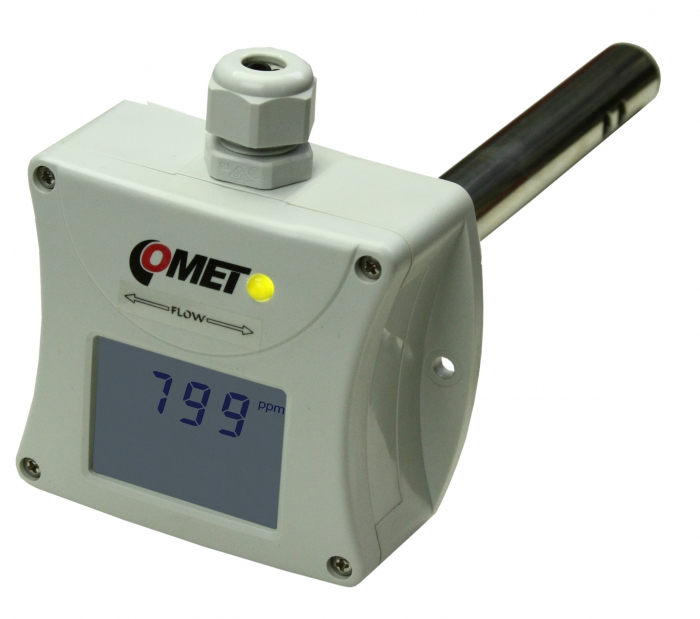

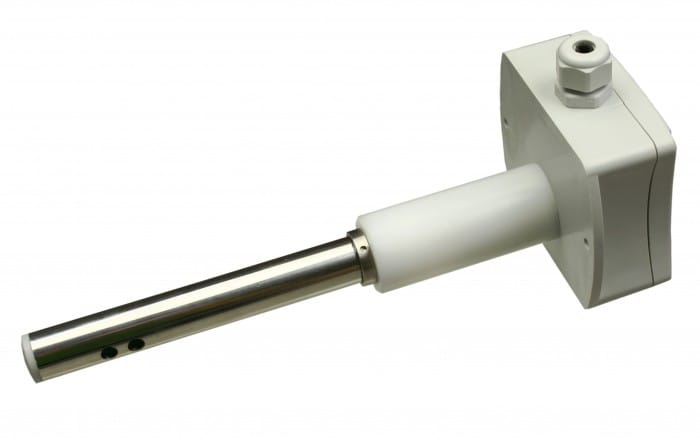

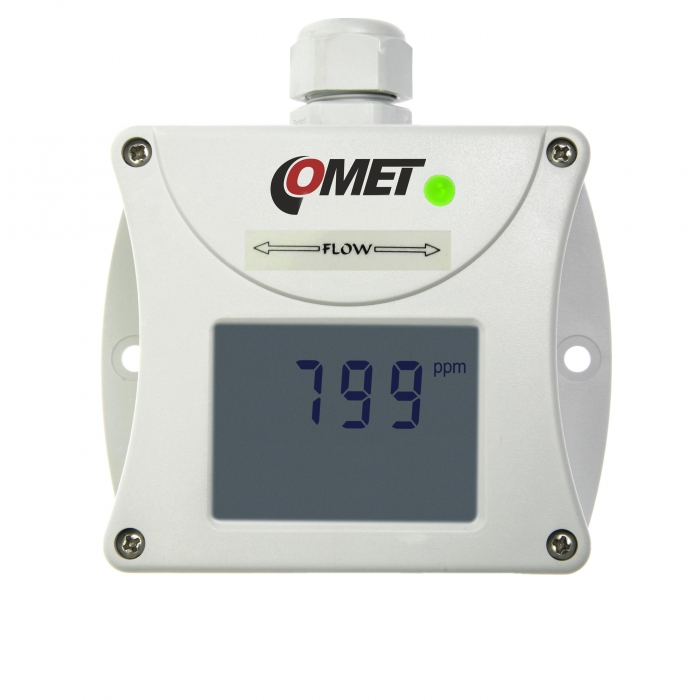

CO2 concentration transmitter with 0-10 V output, duct mount
Duct mount CO2 concentration transmitter with 0-10 V output.
Green LED shines - CO2 concentration 0 to 1000 ppm
Yellow LED shines - CO2 concentration 1001 to 1200 ppm
Red LED shines - CO2 concentration 1201 ppm and more
Possibility to extend the measuring range for an additional charge:
- Measuring range: 0 to 10 000 ppm
- Accuracy: 100 ppm + 5% of the measured value at 25 °C and 1013 hPa
-
codeT5245
-
Warranty3 years
Technical data
Measured value
CO2 SENSOR
GENERAL TECHNICAL DATA
Features
Applications:
Production facilities and warehouses - Monitoring of storage conditions and production processes in the temperature range -200 ° C to + 600 ° C.
Metrology - COMET sensors together with COMET radiationshields are the ideal basis for weather stations for long-term weather, climate and air monitoring.
Healtcare and laboratories - Monitoring of sterile environments and storage areas at temperatures up to -200 °C. COMET sensors can serve well even in these demanding and wide range of applications focusing on monitoring temperature, CO2 and other critical parameters in the context of GLP and GMP regulations.
Industry and manufacturing - such as the chemical, oil, paper and steel industries - is distinguished by its capital demands. A competition across the market is still growing and creates additional pressure on the prices. Our company has a good understanding of this situation and thus provides very reliable and precise products for a very competitive price.
Food industry - wherever there is a need to monitor critical variables in relation to HACCP regulations, COMET sensors and transducers may be used. Along with other COMET products such monitoring systems MS6 and MS55D, it is possible to create a comprehensive system for collecting, recording, analyzing and alerting.
Building management - Our instruments which measure temperature, humidity, atmospheric pressure and CO2 are an integral part of these industry-leading solutions.
Potentially explosive environments - Selected devices comply with the requirements of the ATEX directive for use in potentially explosive environments (zone 2).
Features description:
* the features may vary depending on the device type● industrial or interior design with protection up to IP65
● ATEX design for potentially explosive atmospheres (zone 2) on selected models
● relays output 250Vac / 8A or 50 V on selected models
