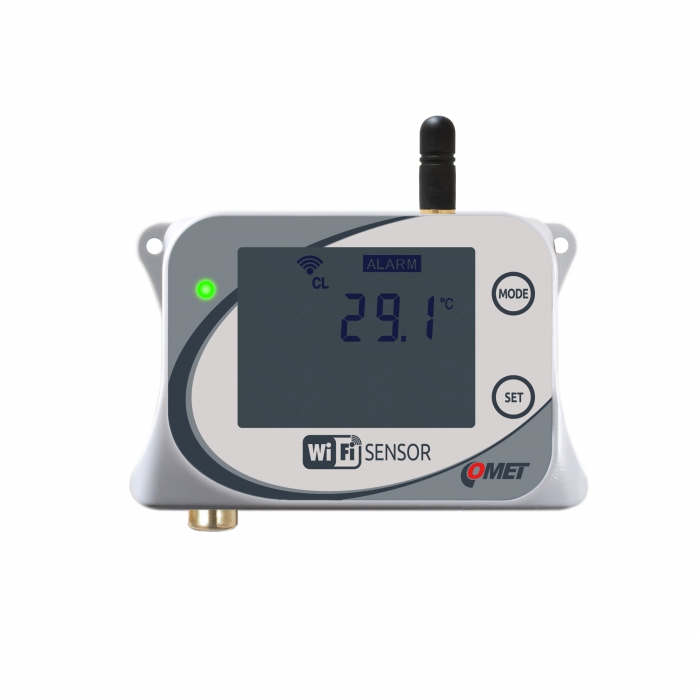

WiFi temperature sensor for one external Pt1000 probe

WiFi temperature sensor for one external Pt1000 probe
WiFi temperature sensor for one external Pt1000 probe
WiFi temperature sensor for one external Pt1000 probe
WiFi temperature sensor for one external Pt1000 probe
WiFi temperature sensor for one external Pt1000 probe
WiFi temperature sensor for one external Pt1000 probe
WiFi temperature sensor for one external Pt1000 probe
WiFi temperature sensor for one external Pt1000 probe

Sensors with WiFi interface are designed to measure the temperature from a connected temperature sensor (optional accessories).

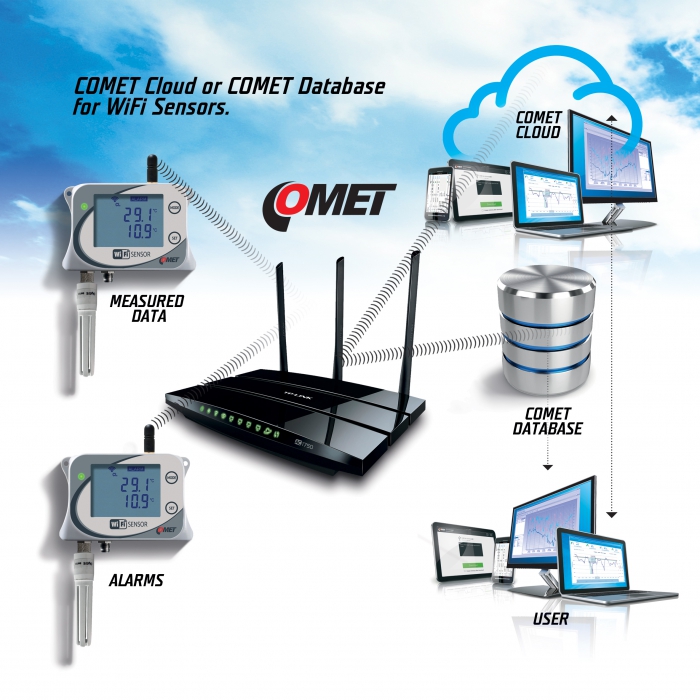

Communication with the sensor is done via a wireless WiFi network. The device allows sending measured values ​​to the online COMET Cloud or COMET Database storage with the shortest interval of 5 minutes. The values ​​can be displayed on integrated web pages and provided to third party systems using the Modbus TCP protocol. The measured values ​​are displayed on the LCD display.

The device continuously evaluates the alarm limits of the measured values ​​and in case of exceeding them, it can send an e-mail or inform by means of acoustic or optical signaling. Two alarm limits are supported for each measurement channel.

The main advantage of sensors with WiFi interface is the simplicity of deployment in places where WiFi infrastructure is already available. Just place the sensor in the desired location and connect it to the WiFi network. WiFi sensor in conjunction with COMET Cloud or COMET Database offers a comprehensive solution for monitoring and alarm without the need for a server solution on the part of the user. If necessary, however, the sensor can also be connected to third-party systems, either using the Modbus TCP protocol or by sending JSON data to an http server.
Thanks to these unique features, the WiFi sensor will find applications and a wide range of application areas.

  • code
    W0711
  • Warranty
    3 years
Add to quote

Technical data

Measured value

Temperature

TEMPERATURE SENSOR - external probe Pt1000

Measuring range -90 to +260 °C
Accuracy ±0.2 °C in the range -90 to +100 °C; ±0.2 % from reading from +100 to +260 °C
Resolution 0.1 °C

GENERAL TECHNICAL DATA

Operating temperature -30 to +60 °C
Channels 1x external temperature probe (Pt1000), CINCH connector
Measuring interval 1 s
Sending interval to COMET Cloud adjustable 5 minutes to 12 hours
Communication protocols HTTP(S), SMTP, ModbusTCP, SNMP (v1, v2c, v3), HTTP POST, HTTP GET (JSON, XML)
Alarm signalization e-mail, acoustic, LED
Power 5.0 to 5.4 VDC; consumption 150 mA (max. 500 mA); USB-C connector
Radio section frequency: 2.4 GHz; max. transmit power: 18 dBm; standard: IEEE 802.11 b/g/n
WiFi security Open, WEP, WPA, WPA2, WPA2-PMF, WPA3, WPA2-EAP
Protection class IP30
Dimensions 81 x 93 x 32 mm
Weight 115 g
Warranty 3 years

Optional accessories and download

Pt1000TG8/C, temperature probe

Pt1000TG8/C, temperature probe

Temperature range: -80 to 200°C
code SN104C
Pt1000TG8/C, temperature probe, cable 2 m

Pt1000TG8/C, temperature probe, cable 2 m

Temperature range: -80 to 200°C
code SN105C
Pt1000TG8/C, temperature probe, cable 5 m

Pt1000TG8/C, temperature probe, cable 5 m

Temperature range: -80 to 200°C
code SN108C
Pt1000TG8/C, temperature probe, cable 10 m

Pt1000TG8/C, temperature probe, cable 10 m

Temperature range: -80 to 200°C
code SN113C
Pt1000TG7/C, temperature probe

Pt1000TG7/C, temperature probe

Temperature range: -50 to 200°C
code SN164C
Pt1000TG7/C, temperature probe, cable 2 m

Pt1000TG7/C, temperature probe, cable 2 m

Temperature range: -50 to 200°C
code SN165C
Pt1000TG7/C, temperature probe, cable 5 m

Pt1000TG7/C, temperature probe, cable 5 m

Temperature range: -50 to 200°C
code SN166C
Pt1000TG7/C, temperature probe, cable 10 m

Pt1000TG7/C, temperature probe, cable 10 m

Temperature range: -50 to 200°C
code SN167C
2301-220/C, temperature probe, cable 1 m

2301-220/C, temperature probe, cable 1 m

Temperature range: -30 to 220°C
code SN168C
2021-150/C, temperature probe, cable 1 m

2021-150/C, temperature probe, cable 1 m

Temperature range: -30 to 150°C
code SN169C
PTS350A-2/0, temperature probe, cable 2 m

PTS350A-2/0, temperature probe, cable 2 m

Temperature range: -30 to 130°C
code SN170C
2034-220/C, temperature probe, cable 1 m

2034-220/C, temperature probe, cable 1 m

Temperature range: -30 to 150°C
code SN175C
2061-200/C, temperature probe, cable 1 m

2061-200/C, temperature probe, cable 1 m

Temperature range: -50 to 200°C
code SN178C
2061-200/C, temperature probe, cable 2 m

2061-200/C, temperature probe, cable 2 m

Temperature range: -50 to 200°C
code SN179C
2061-200/C, temperature probe, cable 5 m

2061-200/C, temperature probe, cable 5 m

Temperature range: -50 to 200°C
code SN180C
2061-200/C, temperature probe, cable 10 m

2061-200/C, temperature probe, cable 10 m

Temperature range: -50 to 200°C
code SN181C
PTS350A-5/C, temperature probe, cable 5 m

PTS350A-5/C, temperature probe, cable 5 m

Temperature range: -30 to 130°C
code SN182C
PTS350A-10/C, temperature probe, cable 10 m

PTS350A-10/C, temperature probe, cable 10 m

Temperature range: -30 to 130°C
code SN183C
Pt1000TGL40/C, temperature probe, cable 1 m

Pt1000TGL40/C, temperature probe, cable 1 m

Temperature range: -30 to 80°C
code SN185C
Pt1000TGL40/C, temperature probe, cable 2 m

Pt1000TGL40/C, temperature probe, cable 2 m

Temperature range: -30 to 80°C
code SN186C
Pt1000TGL40/C, temperature probe, cable 5 m

Pt1000TGL40/C, temperature probe, cable 5 m

Temperature range: -30 to 80°C
code SN187C
Pt1000TGL40/C, temperature probe, cable 10 m

Pt1000TGL40/C, temperature probe, cable 10 m

Temperature range: -30 to 80°C
code SN188C
Pt1000TR160/C, temperature probe, cable 1 m

Pt1000TR160/C, temperature probe, cable 1 m

Temperature range: -30 to 80°C
code SN199C
Pt1000TR160/C, temperature probe, cable 2 m

Pt1000TR160/C, temperature probe, cable 2 m

Temperature range: -30 to 80°C
code SN200C
Pt1000TR160/C, temperature probe, cable 5 m

Pt1000TR160/C, temperature probe, cable 5 m

Temperature range: -30 to 80°C
code SN201C
Pt1000TR160/C, temperature probe, cable 10 m

Pt1000TR160/C, temperature probe, cable 10 m

Temperature range: -30 to 80°C
code SN202C
Pt1000TR160/C, temperature probe, cable 15 m

Pt1000TR160/C, temperature probe, cable 15 m

Temperature range: -30 to 80°C
code SN203C
Pt1000TR160/C, temperature probe, cable 20 m

Pt1000TR160/C, temperature probe, cable 20 m

Temperature range: -30 to 80°C
code SN204C
2091-250/C, Stick-in probe, cable 1 m

2091-250/C, Stick-in probe, cable 1 m

Temperature range: -50 to 250°C
code SN210C
2091-250/C, Stick-in probe, cable 2 m

2091-250/C, Stick-in probe, cable 2 m

Temperature range: -50 to 250°C
code SN211C
2091-250/C, Stick-in probe, cable 5 m

2091-250/C, Stick-in probe, cable 5 m

Temperature range: -50 to 250°C
code SN212C
2091-250/C, Stick-in probe, cable 10 m

2091-250/C, Stick-in probe, cable 10 m

Temperature range: -50 to 250°C
code SN213C
Pt1000TR125/C, temperature probe, cable 1 m

Pt1000TR125/C, temperature probe, cable 1 m

Temperature range: -190 to 150°C
code SN239C
Pt1000TR125/C, temperature probe, cable 2 m

Pt1000TR125/C, temperature probe, cable 2 m

Temperature range: -190 to 150°C
code SN240C
Pt1000TR125/C, temperature probe, cable 5 m

Pt1000TR125/C, temperature probe, cable 5 m

Temperature range: -190 to 150°C
code SN241C
Pt1000TR125/C, temperature probe, cable 10 m

Pt1000TR125/C, temperature probe, cable 10 m

Temperature range: -190 to 150°C
code SN242C
Pt1000TR050S/C, temperature probe, cable 1 m

Pt1000TR050S/C, temperature probe, cable 1 m

Temperature range: -50 to 400°C
Discontinued
Ultra thin temperature probe Pt1000TG3/C, CINCH connector

Ultra thin temperature probe Pt1000TG3/C, CINCH connector

Temperature range: -50 to 200°C
code SN252C
Temperature probe Pt1000TR050S/C, CINCH connector, cable 10 meters

Temperature probe Pt1000TR050S/C, CINCH connector, cable 10 meters

Temperature range: -50 to 400°C
Discontinued
Ambient temperature probe, 201-80/C

Ambient temperature probe, 201-80/C

Temperature range: -30 to 80°C
code SN258
Temperature probe Pt1000TG8Ex/C, CINCH connector, for ATEX zone II

Temperature probe Pt1000TG8Ex/C, CINCH connector, for ATEX zone II

Temperature range: -30 to 180°C
code SN263C
Temperature probe Pt1000TG8Ex/C, CINCH connector, for ATEX zone II, cable 2 meters

Temperature probe Pt1000TG8Ex/C, CINCH connector, for ATEX zone II, cable 2 meters

Temperature range: -30 to 180°C
code SN264C
Temperature probe Pt1000TG8Ex/C, CINCH connector, for ATEX zone II, cable 5 meters

Temperature probe Pt1000TG8Ex/C, CINCH connector, for ATEX zone II, cable 5 meters

Temperature range: -30 to 180°C
code SN265C
Temperature probe Pt1000TG8Ex/C, CINCH connector, for ATEX zone II, cable 10 meters

Temperature probe Pt1000TG8Ex/C, CINCH connector, for ATEX zone II, cable 10 meters

Temperature range: -30 to 180°C
code SN266C
Temperature probe Pt1000TG8Ex/C, CINCH connector, for ATEX zone II, cable 15 meters

Temperature probe Pt1000TG8Ex/C, CINCH connector, for ATEX zone II, cable 15 meters

Temperature range: -30 to 180°C
code SN267C
Temperature probe Pt1000TR050M/C, CINCH connector, cable 1 meter

Temperature probe Pt1000TR050M/C, CINCH connector, cable 1 meter

Temperature range: -50 to 400°C
code SN270C
Temperature probe Pt1000TR050M/C, CINCH connector, cable 2 meters

Temperature probe Pt1000TR050M/C, CINCH connector, cable 2 meters

Temperature range: -50 to 400°C
code SN271C
Temperature probe Pt1000TR050M/C, CINCH connector, cable 5 meters

Temperature probe Pt1000TR050M/C, CINCH connector, cable 5 meters

Temperature range: -50 to 400°C
code SN272C

Accredited temperature calibration

Accredited temperature calibration

code SLU001

USB-C cable, 1 meter

USB-C cable, 1 meter

code MP053

wall holder for datalogger - kopie

wall holder for datalogger - kopie

code LP100
Holder for mounting the Datalogger "U" on magnetic surfaces

Holder for mounting the Datalogger "U" on magnetic surfaces

code LP102

COMET Cloud

COMET Cloud

code cloud
Database Viewer for Comet Database

Database Viewer for Comet Database

code DBV

Software

download-icon Comet Database One Click Installer (21.1-V)
487.31 MB
download-icon COMET Cloud Lite - Android (Google Play)
download-icon COMET Cloud Lite - iOS (App Store)

Others

download-icon Terms and Conditions COMET System s.r.o.
133.12 KB

Manuals

download-icon Instruction Manual
3.55 MB
download-icon Quick Start Manual
1.40 MB
download-icon Safety Information
274.30 KB
download-icon Calibration manual
457.30 KB
download-icon Declaration of Conformity
59.42 KB
download-icon MIB
577.77 KB

Firmware and SDK

download-icon Firmware version 10-0-6-0 (2022-04-25)
2.12 MB
download-icon Software development kit (SDK)
22.49 KB

Catalogs

download-icon CATALOG - WiFi Sensors
3.55 MB
download-icon Catalogue Sheets - COMET WiFi Sensors
1.48 MB

Related products

COMET Cloud

COMET Cloud

code cloud
COMET Database

COMET Database

code CDB
WiFi temperature sensor with integrated probe

WiFi temperature sensor with integrated probe

code W0710
WiFi temperature sensor for 4 external Pt1000 probes

WiFi temperature sensor for 4 external Pt1000 probes

code W0741
WiFi temperature and relative humidity sensor with integrated probe

WiFi temperature and relative humidity sensor with integrated probe

code W3710
WiFi temperature and relative humidity sensor for two external probes

WiFi temperature and relative humidity sensor for two external probes

code W3721
WiFi temperature, relative humidity, CO2 and atmospheric pressure sensor with integrated probe

WiFi temperature, relative humidity, CO2 and atmospheric pressure sensor with integrated probe

code W4710
WiFi CO2 sensor with integrated probe

WiFi CO2 sensor with integrated probe

code W5714
WiFi temperature, relative humidity and atmospheric pressure sensor with integrated probe

WiFi temperature, relative humidity and atmospheric pressure sensor with integrated probe

code W7710

Contact

COMET AFRICA
Suite 32, Cornerstone Business Park
Brackengate, Hamman Road
Brackenfell, 7560
Cape Town, South Africa

E-mail: info@comet-africa.com

Telephone customer support
Phone: +27 21 975 2111

What we do

COMET AFRICA specialises in the supply, design and implementation of cold chain management solutions. With many years’ experience in cold chain management, COMET AFRICA has grown by adding new products to its market offering, namely: SMS notification, GPRS Remote Data Access, Online Data Hosting, IOT sensors and Custom Software for turnkey solutions.

We have a number of distribution points throughout Africa, including Kenya, Uganda, Ghana, Zambia, Botswana and Lesotho.

We offer a wide range of products from Hand Held devices and Loggers, to fully integrated Temperature, Humidity, CO2 and Pressure monitoring, recording, alarming and notifying systems.

The business philosophy of COMET AFRICA is to continually expand by upgrading products and services to keep up with changing technology.

The Success of COMET AFRICA to date has resulted from the delivery of high end products and solutions to the industrial sector with continued attention to customer service.



© Copyright 2024 COMET SYSTEM, s.r.o. | Webdesign by Spaneco
