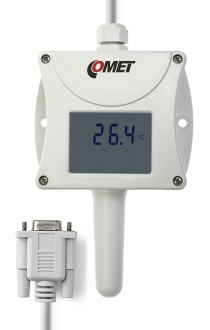

Temperature transmitter with RS232 output

Ambient temperature transmitter. Outdoor, indoor use.

Temperature transmitter is built in a durable watertight case. Degrees Celsius and Fahrenheit are user selectable. Large dual line LCD is an advantage. Display is possible to switch off. Computerized design ensures maximum long term stability and fail indication.



  • code
    T0310
  • Warranty
    3 years

Technical data

Measured value

Temperature

TEMPERATURE SENSOR

Measuring range -30 to +80 °C
Accuracy ±0.4 °C
Resolution 0.1 °C

GENERAL TECHNICAL DATA

Operating temperature -30 to +80 °C
Channels internal temperature sensor
Output RS232
Available temperature units degrees Celsius, degrees Fahrenheit
Communication protocol ModBus RTU and Advantech ADAM compatible protocol
Power 9-30 Vdc
Protection class IP65
Dimensions 88,5 x 148 x 39,5 mm; stem length 53 mm
Weight approx. 140 g
Warranty 3 years

Features

Applications:

Aplikace - Sklady

Production facilities and warehouses - Monitoring of storage conditions and production processes in the temperature range -200 ° C to + 600 ° C.

Aplikace - Serverovny a datová centra

Metrology - COMET sensors together with COMET radiationshields are the ideal basis for weather stations for long-term weather, climate and air monitoring.

Aplikace - Zdravotnictví a laboratoře

Healtcare and laboratories - -200 °C.

Aplikace - Průmysl

Industry and production - monitoring temperature and humidity in food, pharmaceutical, aerospace etc.

Aplikace - Sklady

Food industry - Monitoring of critical processes according to the HACCP standard with the possibility of prompt notification of unforeseen events that could lead to the degradation of the goods.

Aplikace - Sklady

Building management - Our instruments which measure temperature, humidity, atmospheric pressure and CO2 are an integral part of these industry-leading solutions.



Features description:

* the features may vary depending on the device type
● accurate measurement of Temperature, Relative humidity, Dew point, Atmospheric pressure, CO2, Two-state events
● industrial or interior design with protection up to IP65
● integrated sensors, external probe, duct mount design
● relays output 250Vac / 8A or 50 V on selected models

Záruka 3 roky Kalibrační list Teplotní čidlo Teplotní čidlo Teplotní čidlo Tlakové čidlo Rosný bod Dvouřádkový LCD displej Výstup RS232 Výstup RS485

Komunikační protokol MODBUS Komunikační protokol Komunikační protokol


Optional accessories and download

Ac/dc adapter 12V/450mA stabilized, EU

Ac/dc adapter 12V/450mA stabilized, EU

code A1510eu
Ac/dc adapter 12V/450mA stabilized, UK

Ac/dc adapter 12V/450mA stabilized, UK

code A1510uk
Ac/dc adapter 12V/450mA stabilized, US

Ac/dc adapter 12V/450mA stabilized, US

code A1510us

Accredited temperature calibration

Accredited temperature calibration

code SLU001

Transducer USB/RS232 complete

Transducer USB/RS232 complete

code MP006

COMETEO Professional Multi-Plate Radiation Shield for Weather Sensors

COMETEO Professional Multi-Plate Radiation Shield for Weather Sensors

code F8000

Female connector ELKA 4012PG7 for TxxxxL

Female connector ELKA 4012PG7 for TxxxxL

code K1427
Tool for easy connection to WAGO terminals 233 for serial output transmitters

Tool for easy connection to WAGO terminals 233 for serial output transmitters

code SP006
Transmitter version with watertight male connector

Transmitter version with watertight male connector

code TxxxxL

code BM512

code PPO001

Software

download-icon Comet Database One Click Installer (21.1-V)
487.31 MB
download-icon Database Viewer 3.20.0.0 dbapi 21.1
24.33 MB
download-icon TSensor (3-5-5-0)
2.90 MB
download-icon Sensor Reader (2-0-8-0)
2.78 MB
download-icon Sensor RS485/232 utility (1-0-0-18)
2.05 MB
download-icon Conversions - application for recalculation of values
694.50 KB

Others

download-icon 3D model T0310
1.44 MB
download-icon Terms and Conditions COMET System s.r.o.
133.12 KB

Manuals

download-icon Instruction Manual
622.10 KB
download-icon Quick Start Manual
800.21 KB
download-icon Declaration of Conformity
103.18 KB
download-icon Description of communication protocols of Tx3xx and Tx4xx transmitters with RS232 and RS485 communication interface
508.93 KB

Catalogs

download-icon CATALOG - Digital sensors and regulators with serial RS485/RS232 output
7.49 MB
download-icon Catalogue Sheets - COMET Transmitters
1.17 MB
