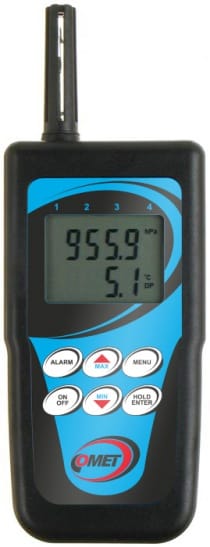

Thermo-hygrometer
Thermometer, hygrometer is designed for measurement and datalogging of temperature, relative humidity into the internal non-volatile memory.
Free PC program enables to transfer recorded data to the computer for evaluation. LCD backlight.
Audio and optical alarm of measured values.
Memory of minimum and maximum measured values.
Function Hold - manual storing of actual values for later displaying.
Simultaneous reading of temperature and relative humidity, dew point temperature reading selectable, built-in sensors.
Data logger is connected to the PC through included USB cable only for data trasfer from the memory. During connection with the PC no measurement and record is enabled.
-
codeD3120
-
Warranty3 years
Technical data
Measured value
Temperature
Relative humidity
TEMPERATURE SENSOR
Measuring range
-10 to +60 °C
Accuracy
±0.4 °C
Resolution
0.1 °C
HUMIDITY SENSOR
Measuring range
5 to 95 % RH
Accuracy
±2.5 % RH from 5 to 95 % at 23 °C
Resolution
0.1% RH
DEW POINT
Measuring range
-40 to +60 °C
Accuracy
±1.5 °C at ambient temperature T <25 °C and RH >30 %
Resolution
0.1 °C
GENERAL TECHNICAL DATA
Operating temperature
-10 to +60 °C
Channels
internal temperature and humidity sensor
Acoustic signalization + backlit LCD
YES
Memory
16,000 values (non-cyclic record)
Recording interval
adjustable from 10 s to 24 h
Measuring interval and display reading refresh
0.7 to 5 s
Recording mode
noncyclic - data logging stops after filling the memory
cyclic - after filling memory oldest data is overwritten by new
cyclic - after filling memory oldest data is overwritten by new
Real time clock
year, leap year, month, day, hour, minute, second
Power
battery 9 V or 12 Vss adaptor with NiMH 9 V battery
Battery life
approx. 6 months
Protection class
IP20
Dimensions (without connectors)
191 x 71 x 27 mm
Weight (including batteries)
approx. 155 g
Warranty
3 years
