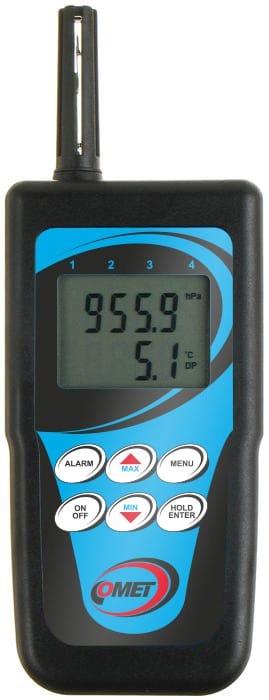

Thermometer-hygrometer with magnetic temperature probe for measuring surface temperatures
Thermometer, hygrometer is designed for measurement and datalogging of temperature, relative humidity into the internal non-volatile memory.
Free PC program enables to transfer recorded data to the computer for evaluation.
LCD backlight. Audio and visual alarm for indication of the temperature difference.
Data logger is connected to the PC through included USB cable only for data trasfer from the memory. During connection with the PC no measurement and record is enabled.

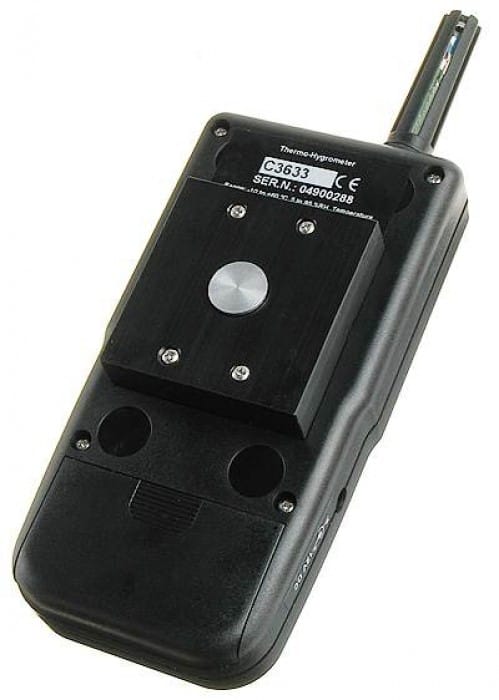

Simultaneous reading of temperature and air relative humidity, dew point temperature reading selectable, built-in sensors. Surface temperature probe with attaching magnets on the instrument bottom. Indication of temperature difference of surface probe and dew point.
-
codeD3633
-
Warranty3 years
Technical data
Measured value
Temperature
Relative humidity
TEMPERATURE SENSOR
Measuring range
-10 to +60 °C
Accuracy
±0.4 °C
Resolution
0.1 °C
HUMIDITY SENSOR
Measuring range
5 to 95 % RH
Accuracy
±2.5 % RH from 5 to 95 % at 23 °C
Resolution
0.1% RH
DEW POINT
Measuring range
-40 to +60 °C
Accuracy
±1.5 °C at ambient temperature T <25 °C and RH >30 %
Resolution
0.1 °C
GENERAL TECHNICAL DATA
Operating temperature
-10 to +60 °C
Channels
internal temperature and humidity sensor + internal temperature sensor
Acoustic signalization + backlit LCD
YES
Memory
16,000 values (non-cyclic record)
Recording interval
adjustable from 10 s to 24 h
Measuring interval and display reading refresh
0.7 to 5 s
Recording mode
noncyclic - data logging stops after filling the memory
cyclic - after filling memory oldest data is overwritten by new
cyclic - after filling memory oldest data is overwritten by new
Real time clock
year, leap year, month, day, hour, minute, second
Power
battery 9 V or 12 Vss adaptor with NiMH 9 V battery
Battery life
approx. 6 months
Protection class
IP20
Dimensions (without connectors)
191 x 71 x 27 mm
Weight (including batteries)
approx. 155 g
Warranty
3 years
