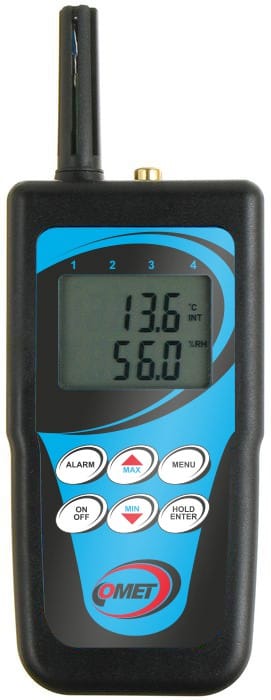

Thermo-hygrometer

Thermometer, hygrometer is designed for measurement and datalogging of temperature, relative humidity into the internal non-volatile memory.

Free PC program enables to transfer recorded data to the computer for evaluation. LCD backlight.

Data logger is connected to the PC through included USB cable only for data trasfer from the memory. During connection with the PC no measurement and record is enabled.

Temperature and air relative humidity reading, dew point temperature reading selectable, built-in sensors. A Cinch connector for connection of an external RTD Ni1000/6180ppm temperature probe.

Surface, pointed-tip, insertion and other probes with Cinch connector are available. Indication of temperature difference of external probe and dew point. Audio and visual alarm for the temperature difference e.g. for monitoring of condensation or mould creation.

code

D3631
Warranty

3 years

Add to quote

Technical data

Measured value

Temperature

Relative humidity

TEMPERATURE SENSOR

Measuring range -10 to +60 °C

Accuracy ±0.4 °C

Resolution 0.1 °C

TEMPERATURE SENSOR - external probe Ni1000

Measuring range -50 to +250 °C

Accuracy ±0.2°C from -50 to +100°C
±0.2% from reading from +100 to +250°C

Resolution 0.1 °C

HUMIDITY SENSOR

Measuring range 5 to 95 % RH

Accuracy ±2.5 % RH from 5 to 95 % at 23 °C

Resolution 0.1% RH

DEW POINT

Measuring range -40 to +60 °C

Accuracy ±1.5 °C at ambient temperature T <25 °C and RH >30 %

Resolution 0.1 °C

GENERAL TECHNICAL DATA

Operating temperature -10 to +60 °C

Channels internal temperature and humidity sensor, 1x external temperature probe

Acoustic signalization + backlit LCD YES

Memory 16,000 values (non-cyclic record)

Recording interval adjustable from 10 s to 24 h

Measuring interval and display reading refresh 0.7 to 5 s

Recording mode noncyclic - data logging stops after filling the memory
cyclic - after filling memory oldest data is overwritten by new

Real time clock year, leap year, month, day, hour, minute, second

Power battery 9 V or 12 Vss adaptor with NiMH 9 V battery

Battery life approx. 6 months

Protection class IP20

Dimensions (without connectors) 191 x 71 x 27 mm

Weight (including batteries) approx. 155 g

Warranty 3 years
