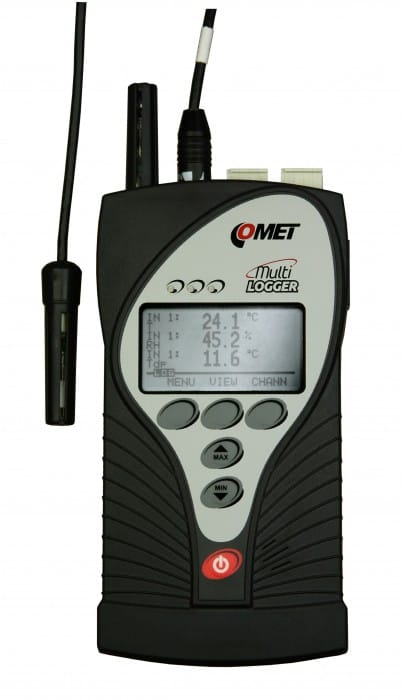

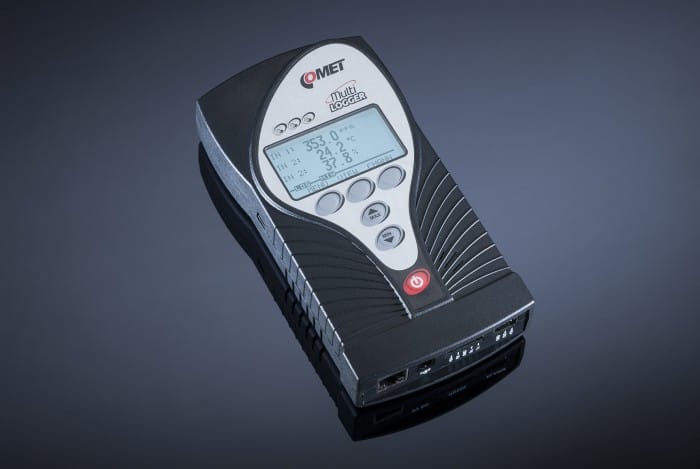

Multilogger - thermo-hygro-CO2-barometer with 2 MiniDIN and 2 Terminals

Battery powered datalogger with built-in CO2 and atmospheric pressure sensor and 4 universal inputs for measurement of temperature, humidity, 0-10V voltage, 0-20mA current, two-state signal and for counting pulses.
Multilogger can be installed permanently to Ethernet network or work as portable device.

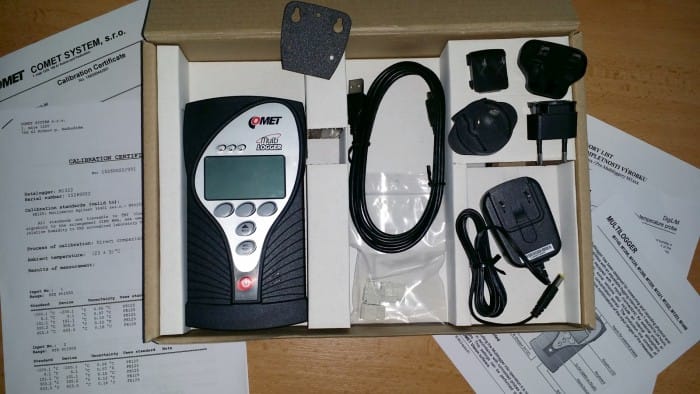

Included is traceable calibration certificate in accordance with EN ISO/IEC17025.

The Multilogger is a battery operated datalogger capable of measuring and recording sensor and electrical values through its inputs.

Datalogger can be connected to Ethernet. Then measured values can be viewed on a web browser, as well as stored and downloaded for later analysis.

carbon dioxide

Possibility to extend the measuring range for an additional charge:

Measuring range: 0 to 10 000 ppm
Accuracy: 100 ppm + 5% of the measured value at 25 °C and 1013 hPa

code

M1323
Warranty

3 years

Add to quote

Technical data

Measured value

Temperature

Relative humidity

Counted values (dew point…)

CO2

Atmospheric pressure

Current

Voltage

Two-state signal

Pulses

TEMPERATURE SENSOR - external probe Pt1000

Measuring range -200 to +600 °C

Accuracy ±0.2 °C (-200 to +100 °C);
±0.2 % from reading from +100 to +600 °C

Resolution 0.1 °C

TEMPERATURE+HUMIDITY SENSOR - external probe T+RH DIGI

Measuring range according to the connected probe Digi/M

Accuracy according to the connected probe Digi/M

Resolution 0.1 °C

DEW POINT

Measuring range according to the connected probe Digi/M

Accuracy according to the connected probe Digi/M

Resolution 0.1 °C

ATMOSPHERIC PRESSURE SENSOR

Measuring range 700 hPa to 1100 hPa

Accuracy ±1,3 hPa at 23 °C

Resolution 0.1 hPa

CO₂ SENSOR

Measuring range 0 to 2 000 ppm

Accuracy 50 ppm + 2 % of the measured value at 23 °C a 1013 hPa

Resolution 1 ppm

DC VOLTAGE

Measuring range 0 to 10 V

Accuracy ±10 mV

Resolution better than 100 µV

DC CURRENT

Measuring range 0 to 20 mA

Accuracy ±20 µA

Resolution better than 0,1 µA

BINARY SIGNAL

Input voltage for level “switched on”/ <0,4 V/> 2 V

Minimum/maximum input voltage 0 V/+30 V DC

I mpedance of the “switched on”/ < 10 kOhm/> 300 kOhm

COUNTER INPUT

Range of counter 24 bit (16 777 215) the counter overflow can be allowed

Maximum input frequency 200 Hz

GENERAL TECHNICAL DATA

Operating temperature -10 to +60 °C

Channels internal atmospheric pressure sensor a CO₂, 2x external temperature probe or connectable temperature+humidity probe,
2x binary, counter, voltage and current input

Counted values dew point, absolute humidity, specific humidity, mixing ratio, specific enthalpy

Memory 1 000 000 values (noncyclic record), 600 000 values (cyclic record)

Recording interval 1s to 24 hours

Display and alarm refresh each 10 s

Recording mode noncyclic - data logging stops after filling the memory
cyclic - after filling memory oldest data is overwritten by new

Available temperature units degrees Celsius, degrees Fahrenheit

Communication interface Ethernet, USB, RS232

Ethernet communication protocols WWW, SNMPv1, XML, DATALINK

Alarm protocols E-Mail

Power AC adapter 230Vac/5Vdc (neccessary for Ethernet interface)

Battery life 3 - 4 weeks

Protection class IP20

Dimensions (without connectors) 178 x 95 x 37mm, without attached cables

Weight (including batteries) approx. 380 g

Warranty 3 years

Features

Applications:

Healtcare and laboratories - Monitoring of storage areas at temperatures up to -200 °C.

Food industry - Monitoring of critical processes according to the HACCP standard with the possibility of prompt notification of unforeseen events that could lead to the degradation of the goods.

Industry and production - monitoring temperature and humidity in food, pharmaceutical, aerospace etc.

Production facilities and warehouses - Monitoring of storage conditions and production processes in the temperature range -200 ° C to + 600 ° C. Sending data to COMET Database or SCADA third-party systems.

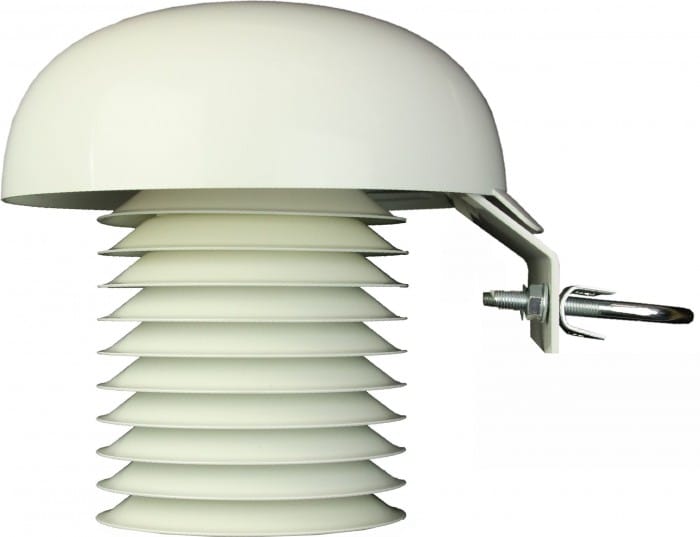

Metrology - COMET sensors together with COMET radiationshields are the ideal basis for weather stations for long-term weather, climate and air monitoring.

Data centers, server rooms - Temperature and humidity monitoring, data center monitoring, RACK stands, including flood status reports, opening / closing of doors (windows), motion, smoke. SNMP monitoring, remote alarms by email and Syslog.

Building management - Our instruments which measure temperature, humidity, atmospheric pressure and CO2 are an integral part of these industry-leading solutions.

Features description:

● the features may vary depending on the device type

● up to 6 hardware inputs for measuring and recording, 16 virtual channels for temperature, humidity, dew point, atmospheric pressure, current 0 - 20 mA and voltage 0 - 10 V (-60 to 140 mV), two-state events, pulses, CO2
● memory for 1 million values
● indication of alarm conditions via e-mail, SMS, integrated acoustic siren LEDs, stwo-state output to control other devices
● analytical software for data processing and configuration - COMET Vision
● communication interfaces - USB, RS232 and Ethernet (SNMPv1 and XML)

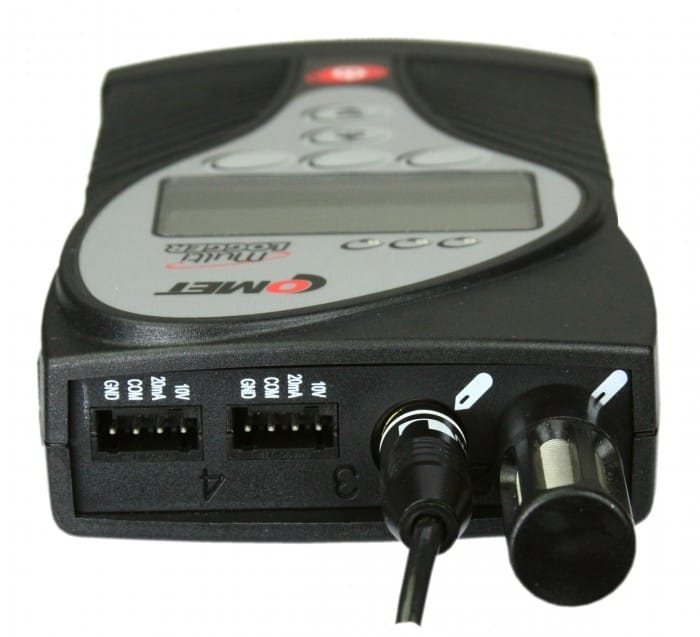

Up to 4 physical Inputs - 2x TERMINALS + 2x MiniDin

Removable inputs allows connection of:

Sensors with woltage output (range 0-10 V; accuracy ±10 mV)
Sensors with current output (range 0-20 mA; accuracy ±20 µA)
Devices with two-state output (potential-less contact or voltage signal 0-30V); may be applied to input 3 and 4
Devices with pulse signal (potential-less contact or voltage signal 0-30V); may be applied to input 4
Temperature probes Pt1000 with built-in configuration memory (serie xxx/M)
Temperature/relative humidity probes with digital output - DigiS/M, DigiL/M, DIGIH/M
The probes are interchangeable without calibration to a specific device and regardless of the length of the cable. The length of the cable can be 1, 2, 5, 10, 15 meters
Internal CO₂ sensor with range 0-2000 ppm (custom range 0-10.000ppm)
Internal barometric pressure sensor (range 600 - 1100 hPa; accuracy ±1.3 hPa at 23°C)

Evaluation of up to 16 variables

Up to 16 variables may be calculated from the four connected probes / sensors. This is the sum of the measured and calculated values. The calculated values can be a further expression of moisture – dew point temperature, absolute humidity, specific humidity, mixing ratio, specific enthalpy. It can be also the result of inter-channel conversions, e.g. the difference of two connected temperature probes.Multilogger LCD display detail.

The measured values are stored in the internal non-volatile memory. Memory capacity is up to 1 million values. Logging mode can be adjusted as non-cyclic, when logging stops after filling the memory, or cyclic, when after fulfilling the memory oldest stored values are overwritten by new ones.

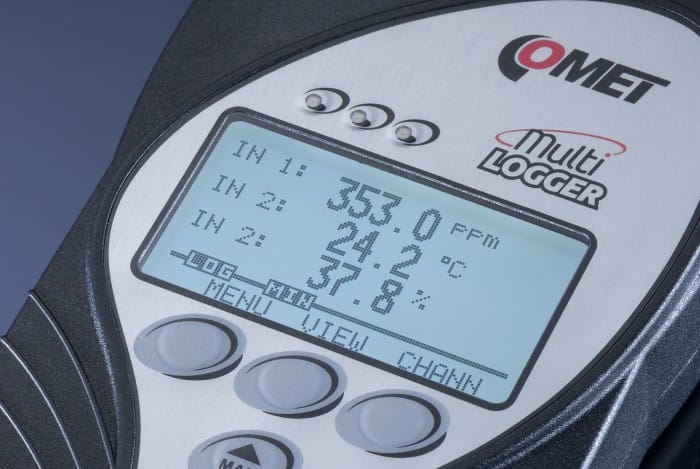

Measured values are displayed on the screen with backlight option and the ability to change the size of display digits

Power supply

Multilogger can be powered by AC adapter or by rechargeable batteries with charging capability. Batteries are always a part of the device (you can also use standard alkaline AA batteries). Batteries power the device for several months.

While using the AC adapter, the batteries provide backup operations and provide recording and measurement during power failure. Thanks to the Ethernet output the device informs about the failure via e-mail message.

Alarm limits and alarm indication

It is possible to set two independent alarm limits for each channel (i.e. measured or calculated value).

Alarm signalization can be acoustic (built-in beeper), optical, sending an e-mail alert or an alarm output. The alarm output is for connecting an external audio or visual alarm.

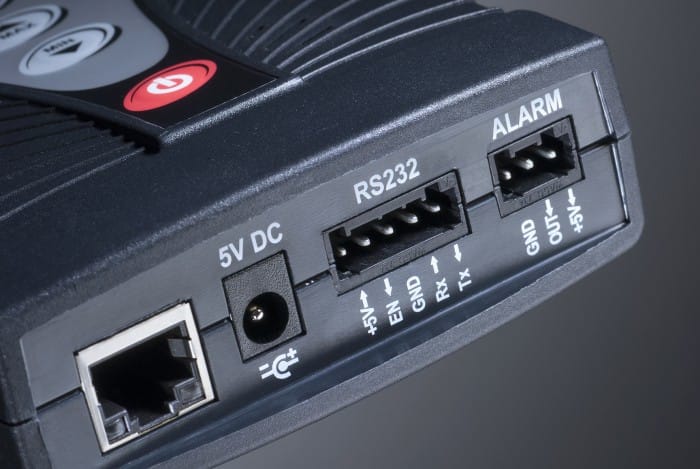

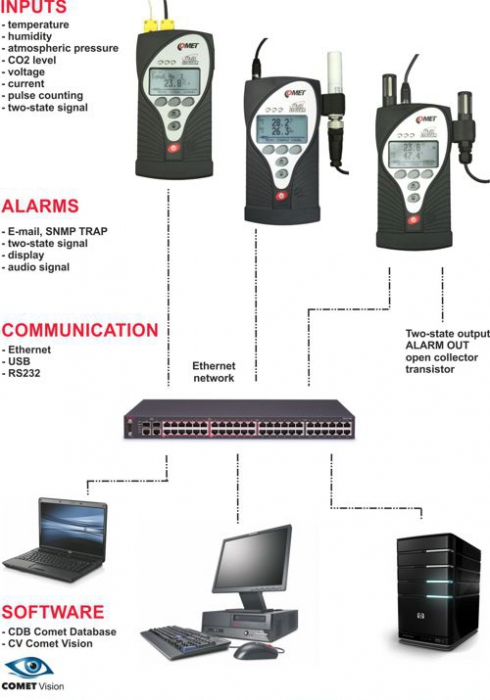

Communication interfaces

Multilogger is always equipped with USB connector for communication, data analysis and also for charging of the rechargeable batteries.

Included Ethernet interface allows to:

send an e-mail when an alarm state starts or ends

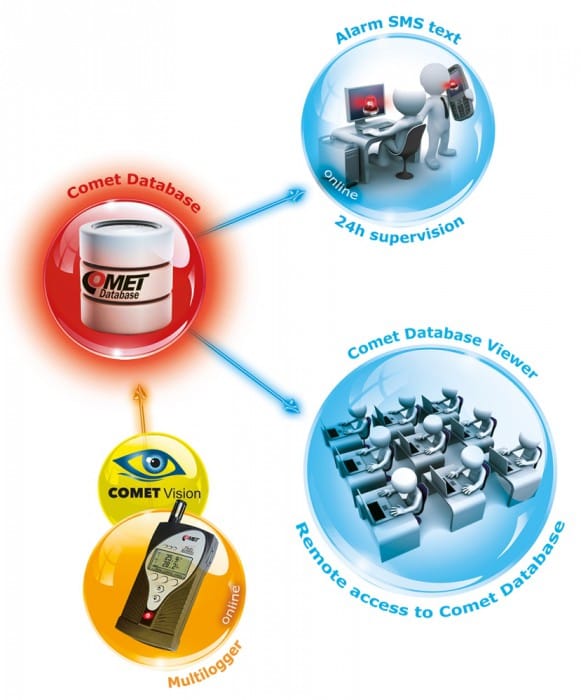

use DATALINK: display current values or download values from memory to COMET Database in your PC. Software COMET Database contains many useful tools for data analysis - graphs, tables, statistics, etc.
simple wireless communication with Wi-Fi TP-LINK router
third-party applications to read the actual measured values using universal protocols SNMPv1 and XML
view current measured values using your web browser

Output ALARM OUT

Multilogger - Alarm limits and alarm indication

Output can be used for controling other devices when alarm is launched, such as external buzzer, telephone dialer etc.
Type of output - open collector transistor
Max. switching current - 100 mA
Max. voltage on output - 24 V
Auxiliary voltage at terminal - +5 V (only when the mains supply is present)
Users can receive alarms if the values go outside the paramters set. Alarms are indicated through an internal buzzer , 3 LEDs or email alerts via Ethernet port.
