Battery powered datalogger with 4 universal inputs for measurement of temperature, humidity, 0-10V voltage, 0-20mA current, two-state signal and for counting pulses.

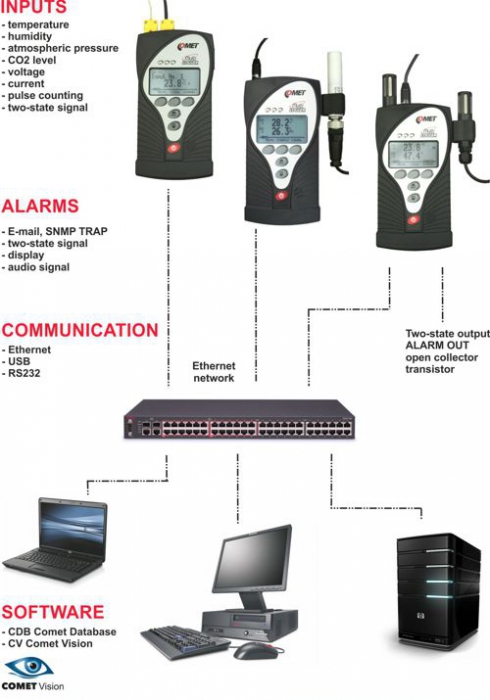

Multilogger can be installed permanently to Ethernet network or work as portable device.

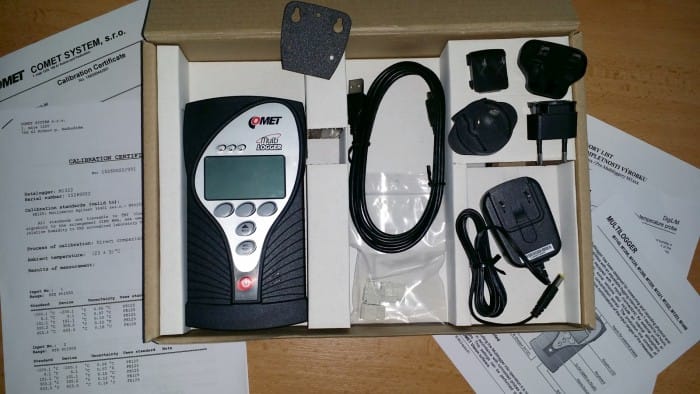

Included is traceable calibration certificate in accordance with EN ISO/IEC17025.s portable device.

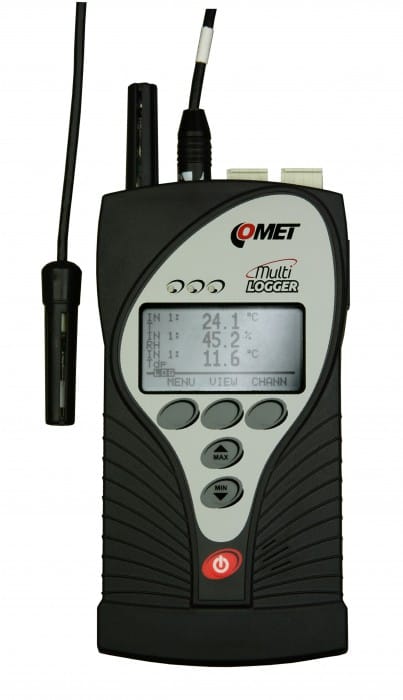

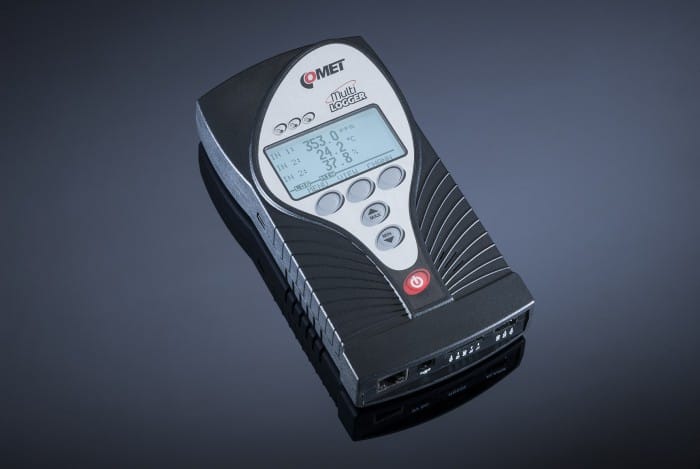

The Multilogger is a battery operated datalogger capable of measuring and recording sensor and electrical values through its inputs.

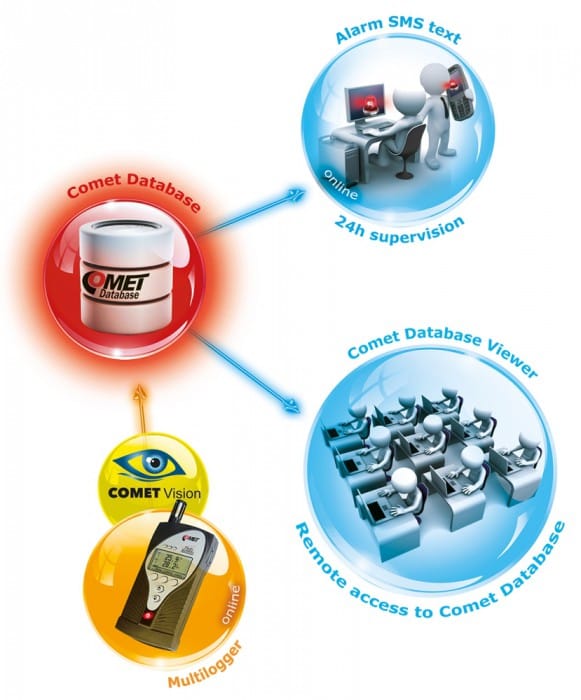

Datalogger can be connected to Ethernet. Then measured values can be viewed on a web browser, as well as stored and downloaded for later analysis.





  • code
    M1320
  • Warranty
    3 years
Add to quote

Technical data

Measured value

Temperature
Relative humidity
Counted values (dew point…)
Current
Voltage
Two-state signal
Pulses

TEMPERATURE SENSOR - external probe Pt1000

Measuring range -200 to +600 °C
Accuracy ±0.2 °C (-200 to +100 °C);
±0.2 % from reading from +100 to +600 °C
Resolution 0.1 °C

TEMPERATURE+HUMIDITY SENSOR - external probe T+RH DIGI

Measuring range according to the connected probe Digi/M
Accuracy according to the connected probe Digi/M
Resolution 0.1 °C

DEW POINT

Measuring range according to the connected probe Digi/M
Accuracy according to the connected probe Digi/M
Resolution 0.1 °C
DC VOLTAGE
Measuring range 0 to 10 V
Accuracy ±10 mV
Resolution better than 100 µV

DC CURRENT

Measuring range 0 to 20 mA
Accuracy ±20 µA
Resolution better than 0,1 µA

BINARY SIGNAL

Input voltage for level “switched on”/ <0,4 V/> 2 V
Minimum/maximum input voltage 0 V/+30 V DC
I mpedance of the “switched on”/ < 10 kOhm/> 300 kOhm

COUNTER INPUT

Range of counter 24 bit (16 777 215) the counter overflow can be allowed
Maximum input frequency 200 Hz

GENERAL TECHNICAL DATA

Operating temperature -10 to +60 °C

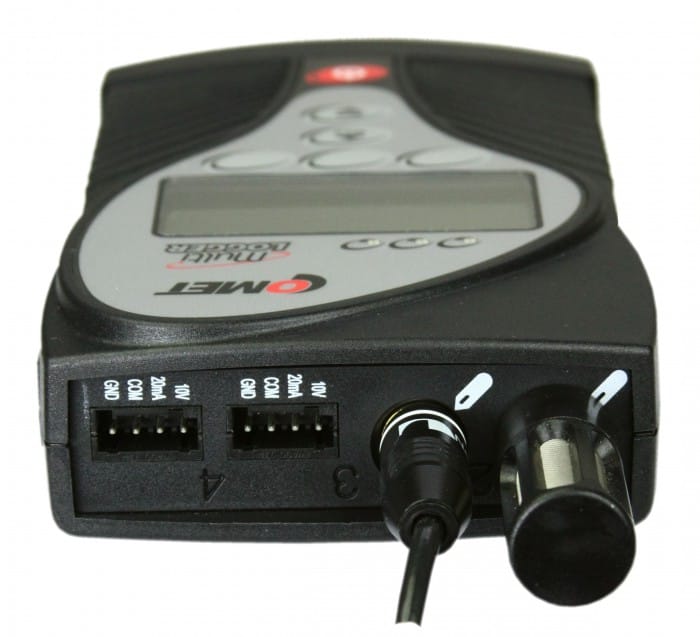

Channels 2x external temperature probe or connectable temperature+humidity probe,
2x binary, counter, voltage and current input
Counted values dew point, absolute humidity, specific humidity, mixing ratio, specific enthalpy
Memory 1 000 000 values (noncyclic record), 600 000 values (cyclic record)
Recording interval 1s to 24 hours
Display and alarm refresh each 10 s
Recording mode noncyclic - data logging stops after filling the memory
cyclic - after filling memory oldest data is overwritten by new
Available temperature units degrees Celsius, degrees Fahrenheit

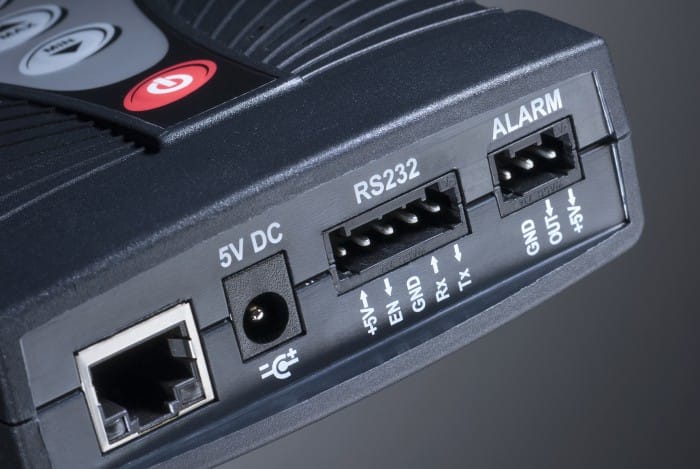

Communication interface Ethernet, USB, RS232
Ethernet communication protocols WWW, SNMPv1, XML, DATALINK
Alarm protocols E-Mail
Power AC adapter 230Vac/5Vdc (neccessary for Ethernet interface)
Battery life 3 - 4 weeks
Protection class IP20
Dimensions (without connectors) 178 x 95 x 37mm, without attached cables
Weight (including batteries) approx. 380 g
Warranty 3 years

Optional accessories and download

Pt1000TG8/M, temperature probe

Pt1000TG8/M, temperature probe

Temperature range: -80 to 200°C
code SN104M
Pt1000TG8/M, temperature probe, cable 2 m

Pt1000TG8/M, temperature probe, cable 2 m

Temperature range: -80 to 200°C
code SN105M
Pt1000TG8/M, temperature probe, cable 5 m

Pt1000TG8/M, temperature probe, cable 5 m

Temperature range: -80 to 200°C
code SN108M
Pt1000TG8/M, temperature probe, cable 10 m

Pt1000TG8/M, temperature probe, cable 10 m

Temperature range: -80 to 200°C
code SN113M
Pt1000TG7/M, temperature probe

Pt1000TG7/M, temperature probe

Temperature range: -50 to 200°C
code SN164M
Pt1000TG7/M, temperature probe, cable 2 m

Pt1000TG7/M, temperature probe, cable 2 m

Temperature range: -50 to 200°C
code SN165M
Pt1000TG7/M, temperature probe, cable 5 m

Pt1000TG7/M, temperature probe, cable 5 m

Temperature range: -50 to 200°C
code SN166M
Pt1000TG7/M, temperature probe, cable 10 m

Pt1000TG7/M, temperature probe, cable 10 m

Temperature range: -50 to 200°C
code SN167M
2301-220/M, temperature probe, cable 1 m

2301-220/M, temperature probe, cable 1 m

Temperature range: -30 to 220°C
code SN168M
2021-150/M, temperature probe, cable 1 m

2021-150/M, temperature probe, cable 1 m

Temperature range: -30 to 150°C
code SN169M
2034-220/M, temperature probe, cable 1 m

2034-220/M, temperature probe, cable 1 m

Temperature range: -30 to 150°C
code SN175M
2061-200/M, temperature probe, cable 1 m

2061-200/M, temperature probe, cable 1 m

Temperature range: -50 to 200°C
code SN178M
2061-200/M, temperature probe, cable 2 m

2061-200/M, temperature probe, cable 2 m

Temperature range: -50 to 200°C
code SN179M
2061-200/M, temperature probe, cable 5 m

2061-200/M, temperature probe, cable 5 m

Temperature range: -50 to 200°C
code SN180M
2061-200/M, temperature probe, cable 10 m

2061-200/M, temperature probe, cable 10 m

Temperature range: -50 to 200°C
code SN181M
PTS350A-5/M, temperature probe, cable 5 m

PTS350A-5/M, temperature probe, cable 5 m

Temperature range: -30 to 130°C
code SN182M
PTS350A-10/M, temperature probe, cable 10 m

PTS350A-10/M, temperature probe, cable 10 m

Temperature range: -30 to 130°C
code SN183M
Pt1000TGL40/M, temperature probe, cable 1 m

Pt1000TGL40/M, temperature probe, cable 1 m

Temperature range: -30 to 80°C
code SN185M
Pt1000TGL40/M, temperature probe, cable 2 m

Pt1000TGL40/M, temperature probe, cable 2 m

Temperature range: -30 to 80°C
code SN186M
Pt1000TGL40/M, temperature probe, cable 5 m

Pt1000TGL40/M, temperature probe, cable 5 m

Temperature range: -30 to 80°C
code SN187M
Pt1000TGL40/M, temperature probe, cable 10 m

Pt1000TGL40/M, temperature probe, cable 10 m

Temperature range: -30 to 80°C
code SN188M
Pt1000TR160/M, temperature probe, cable 1 m

Pt1000TR160/M, temperature probe, cable 1 m

Temperature range: -30 to 80°C
code SN199M
Pt1000TR160/M, temperature probe, cable 2 m

Pt1000TR160/M, temperature probe, cable 2 m

Temperature range: -30 to 80°C
code SN200M
Pt1000TR160/M, temperature probe, cable 5 m

Pt1000TR160/M, temperature probe, cable 5 m

Temperature range: -30 to 80°C
code SN201M
Pt1000TR160/M, temperature probe, cable 10 m

Pt1000TR160/M, temperature probe, cable 10 m

Temperature range: -30 to 80°C
code SN202M
Pt1000TR160/M, temperature probe, cable 15 m

Pt1000TR160/M, temperature probe, cable 15 m

Temperature range: -30 to 80°C
code SN203M
2091-250/M, Stick-in probe, cable 1 m

2091-250/M, Stick-in probe, cable 1 m

Temperature range: -30 to 200°C
code SN210M
2091-250/M, Stick-in probe, cable 2 m

2091-250/M, Stick-in probe, cable 2 m

Temperature range: -50 to 250°C
code SN211M
2091-250/M, Stick-in probe, cable 5 m

2091-250/M, Stick-in probe, cable 5 m

Temperature range: -50 to 250°C
code SN212M
2091-250/M, Stick-in probe, cable 10 m

2091-250/M, Stick-in probe, cable 10 m

Temperature range: -50 to 250°C
code SN213M
Pt1000TG68/M, temperature probe, cable 2 m

Pt1000TG68/M, temperature probe, cable 2 m

Temperature range: -50 to 200°C
code SN232M
Pt1000TG68/M, temperature probe, cable 5 m

Pt1000TG68/M, temperature probe, cable 5 m

Temperature range: -50 to 200°C
code SN233M
Pt1000TG68/M, temperature probe, cable 10 m

Pt1000TG68/M, temperature probe, cable 10 m

Temperature range: -50 to 200°C
code SN234M
Pt1000TR125/M, temperature probe, cable 1 m

Pt1000TR125/M, temperature probe, cable 1 m

Temperature range: -190 to 150°C
code SN239M
Pt1000TR125/M, temperature probe, cable 2 m

Pt1000TR125/M, temperature probe, cable 2 m

Temperature range: -190 to 150°C
code SN240M
Pt1000TR125/M, temperature probe, cable 5 m

Pt1000TR125/M, temperature probe, cable 5 m

Temperature range: -190 to 150°C
code SN241M
Pt1000TR125/M, temperature probe, cable 10 m

Pt1000TR125/M, temperature probe, cable 10 m

Temperature range: -190 to 150°C
code SN242M
Ambient temperature probe with Pt1000 sensor, 200-80/M

Ambient temperature probe with Pt1000 sensor, 200-80/M

Temperature range: -30 to 80°C
code SN243M
Pt1000TR050S/M, temperature probe, cable 1 m

Pt1000TR050S/M, temperature probe, cable 1 m

Temperature range: -50 to 400°C
Discontinued
Pt1000TR050S/M, temperature probe, cable 2 m

Pt1000TR050S/M, temperature probe, cable 2 m

Temperature range: -50 to 400°C
Discontinued
Pt1000TR050S/M, temperature probe, cable 5 m

Pt1000TR050S/M, temperature probe, cable 5 m

Temperature range: -50 to 400°C
Discontinued
Ultra thin temperature probe Pt1000TG3/M, MiniDin connector

Ultra thin temperature probe Pt1000TG3/M, MiniDin connector

Temperature range: -50 to 200°C
code SN252M
Ultra thin temperature probe Pt1000TG3/M, MiniDin connector, cable 2 meters

Ultra thin temperature probe Pt1000TG3/M, MiniDin connector, cable 2 meters

Temperature range: -50 to 200°C
code SN254M
Ultra thin temperature probe Pt1000TG3/M, MiniDin connector, cable 5 meters

Ultra thin temperature probe Pt1000TG3/M, MiniDin connector, cable 5 meters

Temperature range: -50 to 200°C
code SN255M
Ultra thin temperature probe Pt1000TG3/M, MiniDin connector, cable 10 meters

Ultra thin temperature probe Pt1000TG3/M, MiniDin connector, cable 10 meters

Temperature range: -50 to 200°C
code SN256M
Temperature probe Pt1000TR050S/M, MiniDin connector, cable 10 meters

Temperature probe Pt1000TR050S/M, MiniDin connector, cable 10 meters

Temperature range: -50 to 400°C
Discontinued
Temperature probe Pt1000TG8Ex/M, MiniDin connector, for ATEX zone II

Temperature probe Pt1000TG8Ex/M, MiniDin connector, for ATEX zone II

Temperature range: -30 to 180°C
code SN263M
Temperature probe Pt1000TG8Ex/M, MiniDin connector, for ATEX zone II, cable 2 meters

Temperature probe Pt1000TG8Ex/M, MiniDin connector, for ATEX zone II, cable 2 meters

Temperature range: -30 to 180°C
code SN264M
Temperature probe Pt1000TG8Ex/M, MiniDin connector, for ATEX zone II, cable 5 meters

Temperature probe Pt1000TG8Ex/M, MiniDin connector, for ATEX zone II, cable 5 meters

Temperature range: -30 to 180°C
code SN265M
Temperature probe Pt1000TG8Ex/M, MiniDin connector, for ATEX zone II, cable 10 meters

Temperature probe Pt1000TG8Ex/M, MiniDin connector, for ATEX zone II, cable 10 meters

Temperature range: -30 to 180°C
code SN266M
Temperature probe Pt1000TG8Ex/M, MiniDin connector, for ATEX zone II, cable 15 meters

Temperature probe Pt1000TG8Ex/M, MiniDin connector, for ATEX zone II, cable 15 meters

Temperature range: -30 to 180°C
code SN267M
Temperature probe Pt1000TR050M/M, MiniDin connector, cable 1 meter

Temperature probe Pt1000TR050M/M, MiniDin connector, cable 1 meter

Temperature range: -50 to 400°C
code SN270M
Temperature probe Pt1000TR050M/M, MiniDin connector, cable 2 meters

Temperature probe Pt1000TR050M/M, MiniDin connector, cable 2 meters

Temperature range: -50 to 400°C
code SN271M
Temperature probe Pt1000TR050M/M, MiniDin connector, cable 5 meters

Temperature probe Pt1000TR050M/M, MiniDin connector, cable 5 meters

Temperature range: -50 to 400°C
code SN272M
Temperature probe Pt1000TR050M/M, MiniDin connector, cable 10 meters

Temperature probe Pt1000TR050M/M, MiniDin connector, cable 10 meters

Temperature range: -50 to 400°C
code SN273M

Ultra thin digital temperature/humidity probe

Ultra thin digital temperature/humidity probe

Temperature range: -10 to 60°C
code DIGIH/M-1
Ultra thin digital temperature/humidity probe, cable 2 m

Ultra thin digital temperature/humidity probe, cable 2 m

Temperature range: -10 to 60°C
code DIGIH/M-2
Ultra thin digital temperature/humidity probe, cable 5 m

Ultra thin digital temperature/humidity probe, cable 5 m

Temperature range: -10 to 60°C
code DIGIH/M-5
Digital temperature/humidity probe, for direct insertion

Digital temperature/humidity probe, for direct insertion

Temperature range: -10 to 60°C
code DIGIL/M
Digital temperature/humidity probe, cable 1 m

Digital temperature/humidity probe, cable 1 m

Temperature range: -30 to 105°C
code DIGIL/M-1
Digital temperature/humidity probe, cable 10 m

Digital temperature/humidity probe, cable 10 m

Temperature range: -30 to 105°C
code DIGIL/M-10
Digital temperature/humidity probe, cable 15 m

Digital temperature/humidity probe, cable 15 m

Temperature range: -3 to 105°C
code DIGIL/M-15
Digital temperature/humidity probe, cable 2 m

Digital temperature/humidity probe, cable 2 m

Temperature range: -30 to 105°C
code DIGIL/M-2
Digital temperature/humidity probe, cable 5 m

Digital temperature/humidity probe, cable 5 m

Temperature range: -30 to 105°C
code DIGIL/M-5
Digital temperature/humidity probe

Digital temperature/humidity probe

Temperature range: -10 to 60°C
code DIGIS/M
Digital temperature/humidity probe, cable 1 m

Digital temperature/humidity probe, cable 1 m

Temperature range: -10 to 60°C
code DIGIS/M-1
Digital temperature/humidity probe, cable 10 m

Digital temperature/humidity probe, cable 10 m

Temperature range: -10 to 60°C
code DIGIS/M-10
Digital temperature/humidity probe, cable 15 m

Digital temperature/humidity probe, cable 15 m

Temperature range: -10 to 60°C
code DIGIS/M-15
Digital temperature/humidity probe, cable 2 m

Digital temperature/humidity probe, cable 2 m

Temperature range: -10 to 60°C
code DIGIS/M-2
Digital temperature/humidity probe, cable 5 m

Digital temperature/humidity probe, cable 5 m

Temperature range: -10 to 60°C
code DIGIS/M-5

AC/DC adapter 230Vac to 5Vdc/2.1A, EU

AC/DC adapter 230Vac to 5Vdc/2.1A, EU

code A1825eu
AC/DC adapter 230Vac to 5Vdc/2.1A, UK

AC/DC adapter 230Vac to 5Vdc/2.1A, UK

code A1825uk
AC/DC adapter 230Vac to 5Vdc/2.1A, US

AC/DC adapter 230Vac to 5Vdc/2.1A, US

code A1825us

Accredited temperature calibration

Accredited temperature calibration

code SLU001
Accredited temperature and relative humidity calibration

Accredited temperature and relative humidity calibration

code SLU003

300Mbps Wireless N Nano Router

300Mbps Wireless N Nano Router

code TL-WIFI

Wall holder for the Multilogger

Wall holder for the Multilogger

code MLP002
Holder for mounting the Multilogger on magnetic surfaces

Holder for mounting the Multilogger on magnetic surfaces

code MLP003
Wall holder for external probes DIGIL

Wall holder for external probes DIGIL

code SP009

COMET Database

COMET Database

code CDB
COMET Vision - Software for Dataloggers and Multiloggers

COMET Vision - Software for Dataloggers and Multiloggers

code CV
Database Viewer for Comet Database

Database Viewer for Comet Database

code DBV

Magnetic door contact SA-200-A

Magnetic door contact SA-200-A

code SA200A
Magnetic door contact with cable length 10m

Magnetic door contact with cable length 10m

code SA200A-10
Magnetic door contact with cable length 15m

Magnetic door contact with cable length 15m

code SA200A-15
Magnetic door contact with cable length 2m

Magnetic door contact with cable length 2m

code SA200A-2
Magnetic door contact with cable length 20m

Magnetic door contact with cable length 20m

code SA200A-20
Magnetic door contact with cable length 30m

Magnetic door contact with cable length 30m

code SA200A-30
Magnetic door contact with cable length 5m

Magnetic door contact with cable length 5m

code SA200A-5

Adapter for easy connection U/I signals to Multilogger

Adapter for easy connection U/I signals to Multilogger

code MLP006
External audio unit for MSxx and Multilogger

External audio unit for MSxx and Multilogger

code MP026

code BM512

code PPO001

Software

download-icon Comet Vision Software (2.3.8935.24346 dbapi 21.1)
16.56 MB
download-icon Comet Database One Click Installer (21.1-V)
487.31 MB
download-icon Database Viewer 3.20.0.0 dbapi 21.1
24.33 MB
download-icon Conversions - application for recalculation of values
694.50 KB

Others

download-icon Terms and Conditions COMET System s.r.o.
133.12 KB

Manuals

download-icon Instruction Manual
2.24 MB
download-icon Instruction Manual - the connection of detectors to the Multilogger M13xx
428.37 KB
download-icon Quick Start Manual
1,009.40 KB
download-icon Declaration of Conformity
58.20 KB
download-icon MIB
577.77 KB

Catalogs

download-icon CATALOG - Multilogger
1.24 MB
download-icon Catalogue Sheets - COMET Multiloggers
1.13 MB

Related products

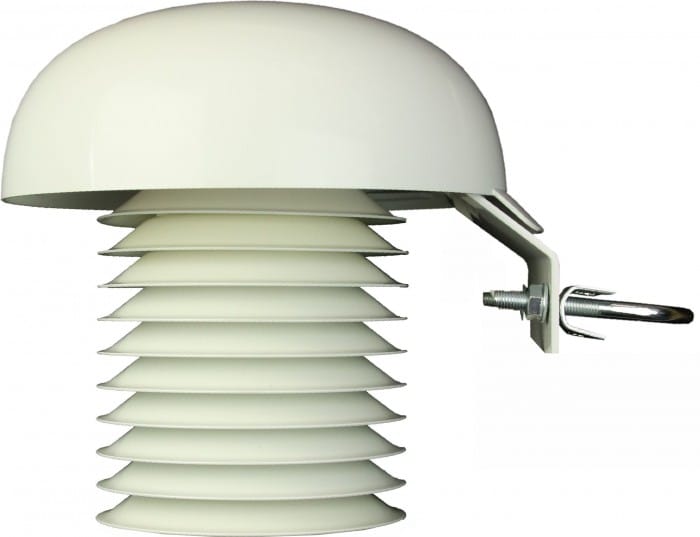

COMETEO Professional Multi-Plate Radiation Shield for Weather Sensors

COMETEO Professional Multi-Plate Radiation Shield for Weather Sensors

Discontinued
Ethernet Multilogger - thermo hygro meter with 4 MiniDIN inputs

Ethernet Multilogger - thermo hygro meter with 4 MiniDIN inputs

code M1140
Multilogger - Thermometer with 4 Thermocouple inputs and Ethernet port

Multilogger - Thermometer with 4 Thermocouple inputs and Ethernet port

code M1200
Multilogger - thermo hygro meter with 2 MiniDIN and 2 Thermocouple inputs

Multilogger - thermo hygro meter with 2 MiniDIN and 2 Thermocouple inputs

code M1220
Multilogger - thermo-hygro-barometer with 2 MiniDIN and 2 Terminals

Multilogger - thermo-hygro-barometer with 2 MiniDIN and 2 Terminals

code M1321
Ethernet Multilogger - thermo-hygro-CO2 meter with 2 MiniDIN and 2 Terminals

Ethernet Multilogger - thermo-hygro-CO2 meter with 2 MiniDIN and 2 Terminals

code M1322
Multilogger - thermo-hygro-CO2-barometer with 2 MiniDIN and 2 Terminals

Multilogger - thermo-hygro-CO2-barometer with 2 MiniDIN and 2 Terminals

code M1323
Ethernet Multilogger - universal datalogger with 4 inputs

Ethernet Multilogger - universal datalogger with 4 inputs

code M1300

Multilogger Demo

Contact

COMET AFRICA
Suite 32, Cornerstone Business Park
Brackengate, Hamman Road
Brackenfell, 7560
Cape Town, South Africa

E-mail: info@comet-africa.com

Telephone customer support
Phone: +27 21 975 2111

What we do

COMET AFRICA specialises in the supply, design and implementation of cold chain management solutions. With many years’ experience in cold chain management, COMET AFRICA has grown by adding new products to its market offering, namely: SMS notification, GPRS Remote Data Access, Online Data Hosting, IOT sensors and Custom Software for turnkey solutions.

We have a number of distribution points throughout Africa, including Kenya, Uganda, Ghana, Zambia, Botswana and Lesotho.

We offer a wide range of products from Hand Held devices and Loggers, to fully integrated Temperature, Humidity, CO2 and Pressure monitoring, recording, alarming and notifying systems.

The business philosophy of COMET AFRICA is to continually expand by upgrading products and services to keep up with changing technology.

The Success of COMET AFRICA to date has resulted from the delivery of high end products and solutions to the industrial sector with continued attention to customer service.



© Copyright 2024 COMET SYSTEM, s.r.o. | Webdesign by Spaneco
