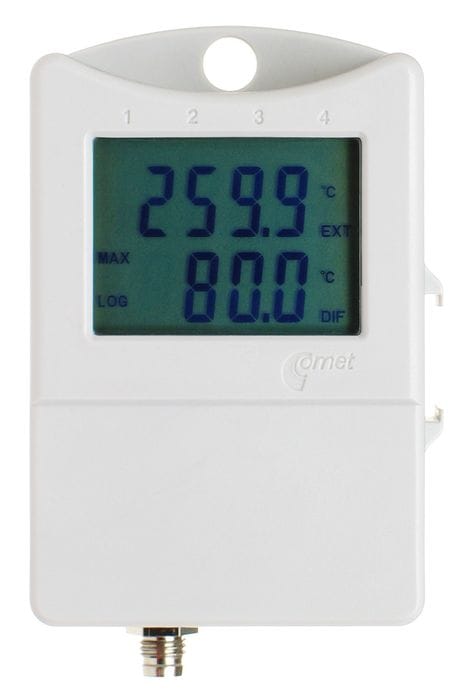

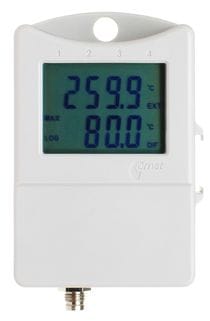

Thermometer 2 chann. (1 external probe) with display
Thermometer is designed for record of temperature. Values are stored to a non volatile electronic memory. Data transfer to the personal computer for further analysis is performed via USB, RS232, GSM or Ethernet interface by means of a proper adapter.
The device includes Traceable calibration certificate with declared metrological traceability of etalons is based on requirements of EN ISO/IEC 17025 standard.
For communication with the PC must be from Optional accessories ordered USB adapter or COM adapter or start/stop magnet if is needed to control logging the other way than directly from computer.
-
codeS0122
-
Warranty3 years
Technical data
TEMPERATURE SENSOR
Measuring range
-30 to +70 °C
Accuracy
±0.4 °C
Resolution
0.1 °C
TEMPERATURE SENSOR - external probe Pt1000
Measuring range
-90 to +260 °C
Accuracy
±0.2 °C (-50 to +100 °C);
±0.2 % from reading from +100 to +260 °C;
±0.4 % from reading from -90 to -50 °C
±0.2 % from reading from +100 to +260 °C;
±0.4 % from reading from -90 to -50 °C
Resolution
0.1 °C
GENERAL TECHNICAL DATA
Operating temperature
-30 to +70 °C
Channels
1x internal temperature sensor, 1x external temperature probe
Memory
32,000 values (non-cyclic record)
Recording interval
adjustable from 10 s to 24 h
Display and alarm refresh
each 10 s
Recording mode
noncyclic - data logging stops after filling the memory
cyclic - after filling memory oldest data is overwritten by new
cyclic - after filling memory oldest data is overwritten by new
Real time clock
year, leap year, month, day, hour, minute, second
Power
lithium battery 3.6 V; size AA
Battery life
6 years
Protection class
IP67 electronics; IP30 sensors
Dimensions (without connectors)
93 x 64 x 29 mm
Weight (including batteries)
approx. 115 g
Warranty
3 years
Features
Applications:
Healtcare and laboratories - Monitoring of storage areas at temperatures up to -90 ° C.
Food industry - Monitoring of critical processes according to the HACCP standard with the possibility of prompt notification of unforeseen events that could lead to the degradation of the goods.
Industry and production - monitoring temperature and humidity in food, pharmaceutical, aerospace etc.
Production facilities and warehouses - Monitoring of storage conditions and production processes in the temperature range -90 ° C to + 260 ° C.
Metrology - COMET sensors together with COMET radiationshields are the ideal basis for weather stations for long-term weather, climate and air monitoring.
Features description:
* the features may vary depending on the device type● accurate measurement of Temperature, Humidity, Dew point, Current (4 – 20 mA), Voltage (0 – 5 V, 0 – 10 V), Pulses, Events
● nonvolatile memory for 32 000 values
● indication of alarm conditions via email, SMS or visually
● software for data analysis on PC
● communication interfaces - USB, RS232, GSM modem, Ethernet
● rugged design with protection up to IP67
● battery life up to 7 years
● nonvolatile memory for 32 000 values
● indication of alarm conditions via email, SMS or visually
● software for data analysis on PC
● communication interfaces - USB, RS232, GSM modem, Ethernet
● rugged design with protection up to IP67
● battery life up to 7 years
Optional accessories and download
Ambient temperature probe, 200-80/E
Temperature range: -30 to 80°C
code
SN171
Temperature probe Pt1000TG8Ex/E, ELKA connector, for ATEX zone II, cable 2 meters
Temperature range: -30 to 180°C
code
SN264E
Temperature probe Pt1000TG8Ex/E, ELKA connector, for ATEX zone II, cable 5 meters
Temperature range: -30 to 180°C
code
SN265E
Temperature probe Pt1000TG8Ex/E, ELKA connector, for ATEX zone II, cable 10 meters
Temperature range: -30 to 180°C
code
SN266E
Temperature probe Pt1000TG8Ex/E, ELKA connector, for ATEX zone II, cable 15 meters
Temperature range: -30 to 180°C
code
SN267E
Temperature probe Pt1000TR050M/E, ELKA connector, cable 1 meter
Temperature range: -50 to 400°C
code
SN270E
Pt1000TR050M/E, temperature probe, cable 2 m
Temperature range: -50 to 400°C
code
SN271E
Temperature probe Pt1000TR050M/E, ELKA connector, cable 5 meters
Temperature range: -50 to 400°C
code
SN272E
Temperature probe Pt1000TR050M/E, ELKA connector, cable 10 meters
Temperature range: -50 to 400°C
code
SN273E
Lithium battery 3,6V/AA
code
A4203
Accredited temperature calibration
code
SLU001
KIT - GSM/GPRS modem LP040 with accessories for Sxxxx, Rxxxx loggers
code
KIT-GSM-L
USB adapter
code
LP003
Start/stop magnet
code
LP004
COM adapter with protection IP65
code
LP012
GSM/GPRS MODEM for data loggers of Sxxxx, Rxxxx, Gxxxx families
code
LP040
Transducer USB/RS232 complete
code
MP006
Antenna for GSM modem
code
MP009/1
Wall holder for GPRS modem
code
MP036
DIN Rail 35mm holder for GPRS modem
code
MP037
Communication cable for GSM modem
code
QMS2901
One time fee for using M2M server - applied for each data logger with modem
code
SLU302
wall holder for datalogger
code
F9000
Self Adhesive Dual Lock
code
MD036
COMET Database
code
CDB
Software for COMET TPrints and GSM modems
code
SWR001
Female ELKA3008V connector
code
K1321
Software
Comet Vision Software (2.3.8935.24346 dbapi 21.1)
Android downloder from S/R dataloggers
Conversions - application for recalculation of values
Others
Terms and Conditions COMET System s.r.o.
Manuals
Instruction Manual
Quick Start Manual
Declaration of Conformity
Catalogs
CATALOG - Dataloggers
Related products
Dual channel temperature data logger for one external Pt1000 probe with internal temperature sensor
code
U0122
Temperature data logger for two external Pt1000 probes
code
U0121
Temperature data logger for four external Pt1000 probes
code
U0141
