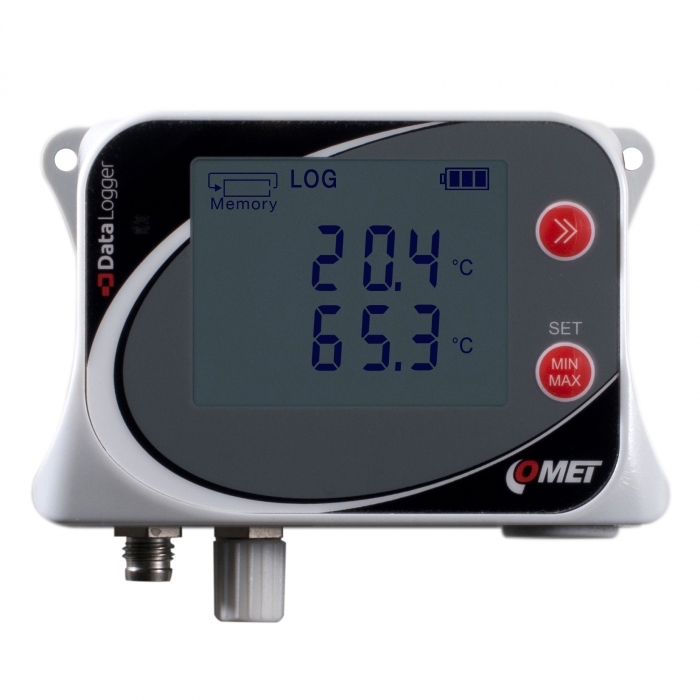

Temperature data logger for two external Pt1000 probes
Datalogger is designed to record temperature from two external Pt1000 probes.
The recording is performed in a non-volatile electronic memory. The data can be transferred to a PC via USB-C.
In case of exceeded set limits alarms are indicated by LED, LCD and acoustically by built-in beeper.
The device includes Traceable calibration certificate with declared metrological traceability of etalons is based on requirements of EN ISO/IEC 17025 standard.
-
codeU0121
-
Warranty3 years
Technical data
Measured value
Temperature
TEMPERATURE SENSOR - external probe Pt1000
Measuring range
-200 to +260 °C
Accuracy
±0.2°C; ±0,2 % of the measurement value in a range of +100 to +260 °C
Resolution
0.1 °C
Response time t90 of temperature measurement (temperature step 20°C, air flow approximately 1m/s)
according to the connected probe
GENERAL TECHNICAL DATA
Operating temperature
-30 to +70 °C
Channels
2x external temperature probe
Memory
500,000 values in noncyclic logging mode; 350,000 values in cyclic record mode
Recording interval
adjustable from 1 s to 24 h
Display and alarm refresh
adjustable 1 s, 10 s, 1 min
Recording mode
noncyclic - data logging stops after filling the memory
cyclic - after filling memory oldest data is overwritten by new
cyclic - after filling memory oldest data is overwritten by new
Real time clock
year, leap year, month, day, hour, minute, second
Power
Lithium battery 3.6 V, size AA
Protection class
IP67
Dimensions
61 x 93 x 32 mm
Weight (including batteries)
approx. 130 g
Warranty
3 years
Optional accessories and download
Pt1000TG8/E, temperature probe
Temperature range: -80 to 200°C
code
SN104E
Pt1000TG8/E, temperature probe, cable 2 m
Temperature range: -80 to 200°C
code
SN105E
Pt1000TG8/E, temperature probe, cable 5 m
Temperature range: -80 to 200°C
code
SN108E
Pt1000TG8/E, temperature probe, cable 10 m
Temperature range: -80 to 200°C
code
SN113E
Pt1000TG7/E, temperature probe
Temperature range: -50 to 200°C
code
SN164E
Pt1000TG7/E, temperature probe, cable 2 m
Temperature range: -50 to 200°C
code
SN165E
Pt1000TG7/E, temperature probe, cable 5 m
Temperature range: -50 to 200°C
code
SN166E
Pt1000TG7/E, temperature probe, cable 10 m
Temperature range: -50 to 200°C
code
SN167E
2301-220/E, temperature probe, cable 1 m
Temperature range: -30 to 220°C
code
SN168E
2021-150/E, temperature probe, cable 1 m
Temperature range: -30 to 150°C
code
SN169E
PTS350A-2/0, temperature probe, cable 2 m
Temperature range: -30 to 130°C
code
SN170E
Ambient temperature probe, 200-80/E
Temperature range: -30 to 80°C
code
SN171
2034-220/E, temperature probe, cable 1 m
Temperature range: -30 to 150°C
code
SN175E
2061-200/E, temperature probe, cable 1 m
Temperature range: -50 to 200°C
code
SN178E
2061-200/E, temperature probe, cable 2 m
Temperature range: -50 to 200°C
code
SN179E
2061-200/E, temperature probe, cable 5 m
Temperature range: -50 to 200°C
code
SN180E
2061-200/E, temperature probe, cable 10 m
Temperature range: -50 to 200°C
code
SN181E
PTS350A-5/E, temperature probe, cable 5 m
Temperature range: -30 to 130°C
code
SN182E
PTS350A-10/E, temperature probe, cable 10 m
Temperature range: -30 to 130°C
code
SN183E
Pt1000TGL40/E, temperature probe, cable 1 m
Temperature range: -30 to 80°C
code
SN185E
Pt1000TGL40/E, temperature probe, cable 2 m
Temperature range: -30 to 80°C
code
SN186E
Pt1000TGL40/E, temperature probe, cable 5 m
Temperature range: -30 to 80°C
code
SN187E
Pt1000TGL40/E, temperature probe, cable 10 m
Temperature range: -30 to 80°C
code
SN188E
Pt1000TR160/E, temperature probe, cable 1 m
Temperature range: -30 to 80°C
code
SN199E
Pt1000TR160/E, temperature probe, cable 2 m
Temperature range: -30 to 80°C
code
SN200E
Pt1000TR160/E, temperature probe, cable 5 m
Temperature range: -30 to 80°C
code
SN201E
Pt1000TR160/E, temperature probe, cable 10 m
Temperature range: -30 to 80°C
code
SN202E
Pt1000TR160/E, temperature probe, cable 15 m
Temperature range: -30 to 80°C
code
SN203E
Pt1000TR160/E, temperature probe, cable 20 m
Temperature range: -30 to 80°C
code
SN204E
2091-250/E, Stick-in probe, cable 1 m
Temperature range: -50 to 250°C
code
SN210E
2091-250/E, Stick-in probe, cable 2 m
Temperature range: -50 to 250°C
code
SN211E
2091-250/E, Stick-in probe, cable 5 m
Temperature range: -50 to 250°C
code
SN212E
2091-250/E, Stick-in probe, cable 10 m
Temperature range: -50 to 250°C
code
SN213E
Pt1000TG68/E, temperature probe, cable 2 m
Temperature range: -50 to 200°C
code
SN232E
Pt1000TG68/E, temperature probe, cable 5 m
Temperature range: -50 to 200°C
code
SN233E
Pt1000TG68/E, temperature probe, cable 10 m
Temperature range: -50 to 200°C
code
SN234E
Pt1000TR125/E, cryogenic temperature probe, cable 1 m
Temperature range: -190 to 150°C
code
SN239E
Pt1000TR125/E, cryogenic temperature probe, cable 2 m
Temperature range: -190 to 150°C
code
SN240E
Pt1000TR125/E, cryogenic temperature probe, cable 5 m
Temperature range: -190 to 150°C
code
SN241E
Pt1000TR125/E, cryogenic temperature probe, cable 10 m
Temperature range: -190 to 150°C
code
SN242E
Pt1000TR050S/E, temperature probe, cable 1 m
Temperature range: -50 to 400°C
Discontinued
Pt1000TR050S/E, temperature probe, cable 2 m
Temperature range: -50 to 400°C
Discontinued
Pt1000TR050S/E, temperature probe, cable 5 m
Temperature range: -50 to 400°C
Discontinued
Ultra thin temperature probe Pt1000TG3/E, ELKA connector
Temperature range: -50 to 200°C
code
SN252E
Temperature probe Pt1000TR050S/E, ELKA connector, cable 10 meters
Temperature range: -50 to 400°C
Discontinued
Temperature probe Pt1000TG8Ex/E, ELKA connector, for ATEX zone II
Temperature range: -30 to 180°C
code
SN263E
Temperature probe Pt1000TG8Ex/E, ELKA connector, for ATEX zone II, cable 2 meters
Temperature range: -30 to 180°C
code
SN264E
Temperature probe Pt1000TG8Ex/E, ELKA connector, for ATEX zone II, cable 5 meters
Temperature range: -30 to 180°C
code
SN265E
Temperature probe Pt1000TG8Ex/E, ELKA connector, for ATEX zone II, cable 10 meters
Temperature range: -30 to 180°C
code
SN266E
Temperature probe Pt1000TG8Ex/E, ELKA connector, for ATEX zone II, cable 15 meters
Temperature range: -30 to 180°C
code
SN267E
Temperature probe Pt1000TR050M/E, ELKA connector, cable 1 meter
Temperature range: -50 to 400°C
code
SN270E
Pt1000TR050M/E, temperature probe, cable 2 m
Temperature range: -50 to 400°C
code
SN271E
Temperature probe Pt1000TR050M/E, ELKA connector, cable 5 meters
Temperature range: -50 to 400°C
code
SN272E
Temperature probe Pt1000TR050M/E, ELKA connector, cable 10 meters
Temperature range: -50 to 400°C
code
SN273E
Lithium battery 3,6V/AA
code
A4203
Accredited temperature calibration
code
SLU001
USB-C cable, 1 meter
code
MP053
wall holder for datalogger - kopie
code
LP100
Holder for mounting the Datalogger "U" on magnetic surfaces
code
LP102
COMET Database
code
CDB
COMET Vision - Software for Dataloggers and Multiloggers
code
CV

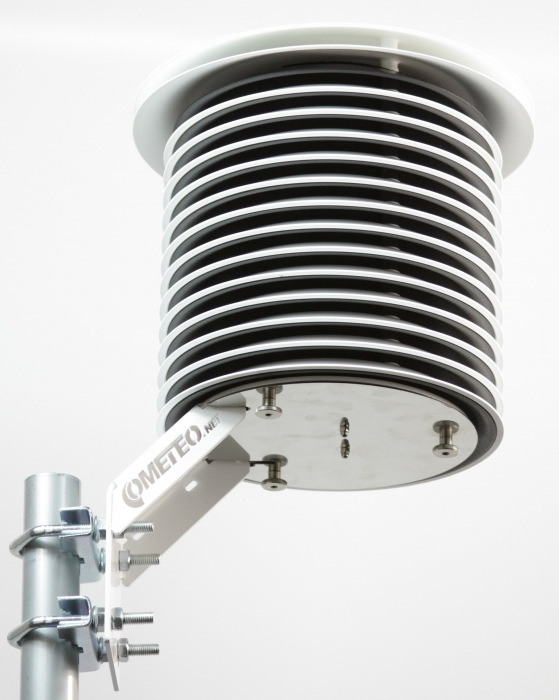

COMETEO Professional Multi-Plate Radiation Shield for Weather Sensors
code
F8000
code
BM512
code
PPO001
Software
Comet Vision Software (2.3.8935.24346 dbapi 21.1)
Comet Database One Click Installer (21.1-V)
Conversions - application for recalculation of values
Others
Terms and Conditions COMET System s.r.o.
Manuals
Instruction Manual
Quick Start Manual
Manual for Calibration (accuracy verification) and Adjustment for Dataloggers Uxxxx(M)
Declaration of Conformity
Catalogs
CATALOG - Dataloggers
Catalogue Sheets - COMET Data Loggers
