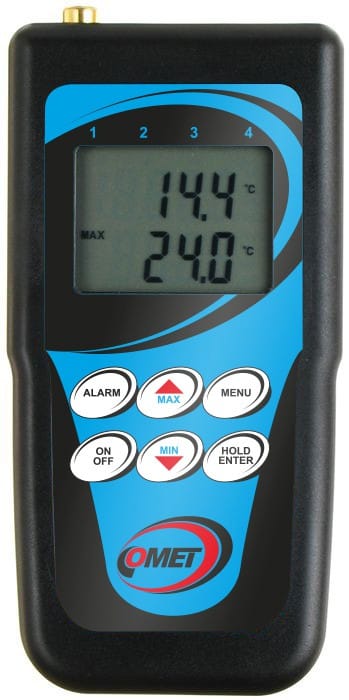

Single channel thermometer

High accuracy thermometer for Ni1000 RTD sensor.

Audio and optical alarm of measured temperature. LCD backlight. Minimum/maximum memory. Memory of minimum and maximum temperature included traceable calibration certificate.

code

C0111
Warranty

3 years

Add to quote

Technical data

Measured value

Temperature

TEMPERATURE SENSOR - external probe Ni1000

Measuring range -50 to +250 °C

Accuracy ±0.2°C from -50 to +100°C
±0.2% from reading from +100 to +250°C

Resolution 0.1 °C

GENERAL TECHNICAL DATA

Operating temperature -30 to +65 °C

Channels 1x external temperature probe

Acoustic signalization + backlit LCD YES

Measuring interval and display reading refresh 0.7 to 5 s

Power battery 9 V or 12 Vss adaptor with NiMH 9 V battery

Battery life approx. 6 months

Protection class IP20

Dimensions (without connectors) 141 x 71 x 27 mm

Weight (including batteries) approx. 150 g

Warranty 3 years

Optional accessories and download

N1ATG8/C, temperature probe with Ni1000 sensor, cable 1 m

code SN001C

N1ATG8/C, temperature probe with Ni1000 sensor, cable 2 m

code SN002C

N1ATG8/C, temperature probe with Ni1000 sensor, cable 5 m

code SN005C

N1ATG8/C, temperature probe with Ni1000 sensor, cable 15 m

code SN015C

N1ATG7/C, temperature probe with Ni1000 sensor, cable 1 m

code SN016C

N1ATG7/C, temperature probe with Ni1000 sensor, cable 2 m

code SN017C

N1ATG7/C, temperature probe with Ni1000 sensor, cable 5 m

code SN020C

N1ATG7/C, temperature probe with Ni1000 sensor, cable 15 m

code SN030C

0061-200/C, temperature probe with Ni1000 sensor, cable 1 m

code SN031C

0061-200/C, temperature probe with Ni1000 sensor, cable 2 m

code SN032C

304-220/C, temperature probe with Ni1000 sensor, cable 1 m

code SN061C

034-150/C, temperature probe with Ni1000 sensor, cable 1 m

code SN076C

NS151-2A/C, surface temperature transducer with Ni1000 sensor, cable 2 m

code SN103

100-60, air temperature probe with Ni1000 sensor

code SN124

031-60, surface temperature probe with Ni1000 sensor

code SN130

ac/dc adapter 230Vac to 12Vdc/1A, EU

code A1515eu

ac/dc adapter 230Vac to 12Vdc/1A, UK

code A1515uk

ac/dc adapter 230Vac to 12Vdc/1A, US

code A1515us

NiMH rechargeable batt. 9V/200mAh

code A3400

Accredited temperature calibration

code SLU001
