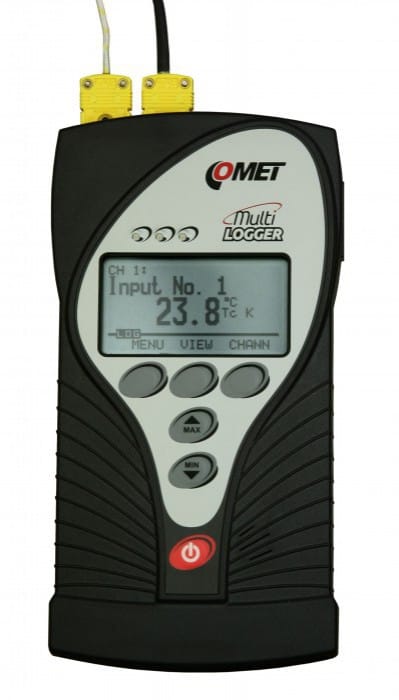

Multilogger - Low Cost Thermometer with 4 Thermocouple Inputs

M1200E is a battery operated datalogger that allows to monitor the actual measured values on the device display or to work with historical data in Comet Vision, where you can create table charts, PDF export, MS EXCEL.
The device is designed for measuring and recording with 4 inputs for thermocouples K, J, S, B, T, N.
Included is traceable calibration certificate in accordance with EN ISO/IEC17025.

M1200E is a battery operated datalogger that allows to monitor the actual measured values on the device display or to work with historical data in COMET Vision, where you can create table charts, PDF export, MS EXCEL. The device is designed for measuring and recording with 4 inputs for thermocouples K, J, S, B, T, N. Included is traceable calibration certificate in accordance with EN ISO/IEC17025.

code

M1200E
Warranty

3 years

Add to quote

Technical data

Measured value

Temperature

TEMPERATURE SENSOR - thermocouple K, N

Measuring range -200 to +1300 °C

Accuracy ± 0,3 % from the measured value + 1,5 °C

Resolution 0.1 °C

TEMPERATURE SENSOR - thermocouple J

Measuring range -200 to +750 °C

Accuracy ± 0,3 % from the measured value + 1,5 °C

Resolution 0.1 °C

TEMPERATURE SENSOR - thermocouple S

Measuring range 0 to +1700 °C

Accuracy ± 0,3 % from the measured value + 1,5 °C

Resolution 0.1 °C

TEMPERATURE SENSOR - thermocouple B

Measuring range 100 to +1800 °C

Accuracy ± 0,3 % from the measured value + 1 °C in the range +300 to +1800 °C

Resolution 0.1 °C

TEMPERATURE SENSOR - thermocouple T

Measuring range -200 to +400 °C

Accuracy ± 0,3 % from the measured value + 1,5 °C

Resolution 0.1 °C

DC VOLTAGE

Measuring range -60 to +140 mV; -18 to +18 mV

Accuracy ±100 µV; ±20 µV

Resolution 0,1 µV

GENERAL TECHNICAL DATA

Operating temperature -10 to +60 °C

Channels 4x external temperature probe

Memory 1 000 000 values (noncyclic record), 600 000 values (cyclic record)

Recording interval 1s to 24 hours

Display and alarm refresh each 10 s

Recording mode noncyclic - data logging stops after filling the memory
cyclic - after filling memory oldest data is overwritten by new

Available temperature units degrees Celsius, degrees Fahrenheit

Communication interface USB

Power 3x AA alkaline battery 1.5 V

Battery life 3 - 4 weeks

Protection class IP20

Dimensions (without connectors) 178 x 95 x 37mm, without attached cables

Weight (including batteries) approx. 380 g

Warranty 3 years

Optional accessories and download

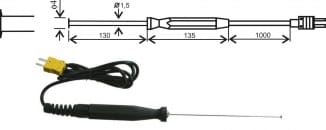

CP500 thermocouple K surface probe

Temperature range: -65 to 500°C

code CP500

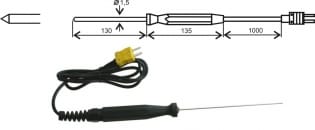

CZ550 thermocouple K surface probe

Temperature range: -65 to 550°C

code CZ550

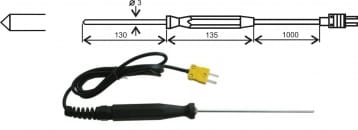

CZ900 thermocouple K needle probe

Temperature range: -65 to 1000°C

code CZ900

GD1250 thermocouple "K" wire probe

Temperature range: -65 to 980°C

code GD1250-1

GD1250 thermocouple "K" wire probe 2m

Temperature range: -65 to 980°C

code GD1250-2

GD1250 thermocouple "K" wire probe 3m

Temperature range: -65 to 980°C

code GD1250-3

GD1250 thermocouple "K" wire probe 4m

Temperature range: -65 to 980°C

code GD1250-4

GD260 thermocouple "K" wire probe

Temperature range: -65 to 260°C

code GD260-1

GD260 thermocouple "K" wire probe 2m

Temperature range: -65 to 260°C

code GD260-2

GD260 thermocouple "K" wire probe 3m

Temperature range: -65 to 260°C

code GD260-3

GD260 thermocouple "K" wire probe 4m

Temperature range: -65 to 260°C

code GD260-4

GD700 thermocouple "K" wire probe

Temperature range: -65 to 700°C

code GD700-1

GD700 thermocouple "K" wire probe 2m

Temperature range: -65 to 700°C

code GD700-2

GD700 thermocouple "K" wire probe 3m

Temperature range: -65 to 700°C

code GD700-3

GD700 thermocouple "K" wire probe 4m

Temperature range: -65 to 700°C

code GD700-4

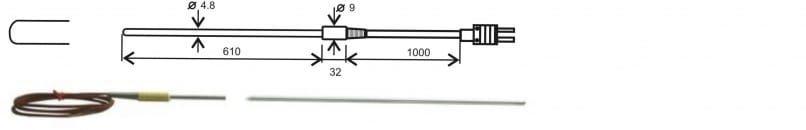

GT1150 thermocouple "K" insertion probe

Temperature range: -50 to 1150°C

code GT1150

Extension cable thermocouple K

code SNP03

Extension cable thermocouple K with female connector

code SNP03/0

Extension cable thermocouple K,2meters

code SNP06

Extension cable thermocouple K with female connector,2meters

code SNP06/0

Extension cable thermocouple K,3meters

code SNP07

Extension cable thermocouple K with female connector,3meters

code SNP07/0

Extension cable thermocouple K,4meters

code SNP08

Extension cable thermocouple K with female connector,4meters

code SNP08/0

Extension cable thermocouple K,5meters

code SNP09

Extension cable thermocouple K with female connector,5meters

code SNP09/0

Extension cable thermocouple K,6meters

code SNP10

Extension cable thermocouple K with female connector,6meters

code SNP10/0

Extension cable thermocouple K,7meters

code SNP11

Extension cable thermocouple K with female connector,7meters

code SNP11/0

Extension cable thermocouple K,8meters

code SNP12

Extension cable thermocouple K with female connector,8meters

code SNP12/0

Extension cable thermocouple K,9meters

code SNP13

Extension cable thermocouple K with female connector,9meters

code SNP13/0

Extension cable thermocouple K,10meters

code SNP14

Extension cable thermocouple K with female connector,10meters

code SNP14/0

Extension cable thermocouple K,11meters

code SNP15

Extension cable thermocouple K with female connector,11meters

code SNP15/0

Extension cable thermocouple K,12meters

code SNP16

Extension cable thermocouple K with female connector,12meters

code SNP16/0

Extension cable thermocouple K,13meters

code SNP17

Extension cable thermocouple K with female connector,13meters

code SNP17/0

Extension cable thermocouple K,14meters

code SNP18

Extension cable thermocouple K with female connector,14meters

code SNP18/0

Extension cable thermocouple K,15meters

code SNP19

Extension cable thermocouple K with female connector,15meters

code SNP19/0

AC/DC adapter 230Vac to 5Vdc/2.1A, EU

code A1825eu

AC/DC adapter 230Vac to 5Vdc/2.1A, UK

code A1825uk

AC/DC adapter 230Vac to 5Vdc/2.1A, US

code A1825us

Accredited temperature calibration

code SLU001

Wall holder for the Multilogger

code MLP002

Holder for mounting the Multilogger on magnetic surfaces

code MLP003

COMET Database

code CDB

COMET Vision - Software for Dataloggers and Multiloggers

code CV

External audio unit for MSxx and Multilogger

code MP026

code BM512

code PPO001
