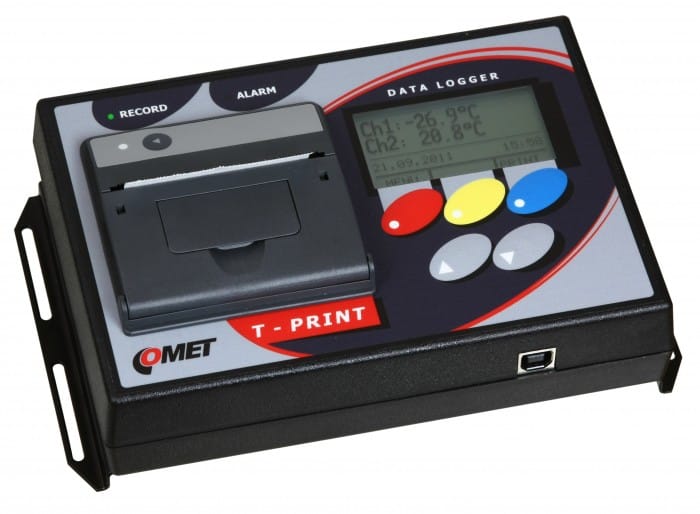

Temperature recorder with printer, 2x binary input

Temperature recorder with printer, 2x binary input
Temperature recorder with printer, 2x binary input
Temperature recorder with printer, 2x binary input
Temperature recorder with printer, 2x binary input
Temperature recorder with printer, 2x binary input
Temperature recorder with printer, 2x binary input
Temperature recorder with printer, 2x binary input
Temperature recorder with printer, 2x binary input
Temperature recorder with printer, 2x binary input
Temperature recorder with printer, 2x binary input
Temperature recorder with printer, 2x binary input
Temperature recorder with printer, 2x binary input
Temperature recorder with printer, 2x binary input
Temperature recorder with printer, 2x binary input
Temperature recorder with printer, 2x binary input
Temperature recorder with printer, 2x binary input

Complete solution for temperature record during the transport.

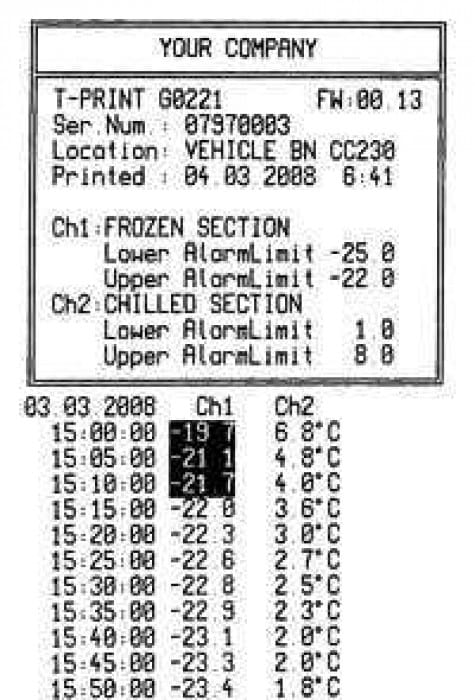

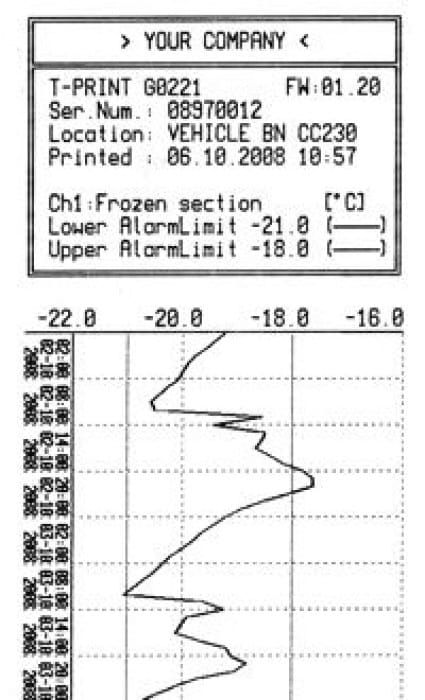

  • print-out of temperature record during transport of food, pharmaceuticals, flowers, live animals and other goods

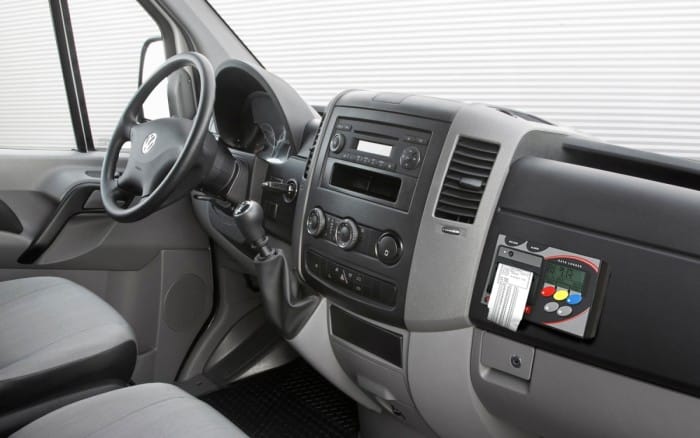

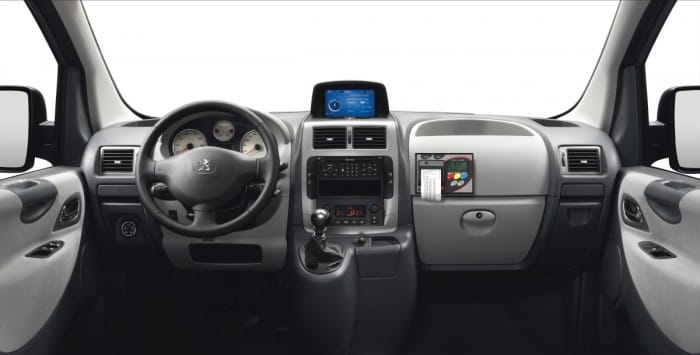

  • designed especially for installation in driver´s cabin
  • easy installation

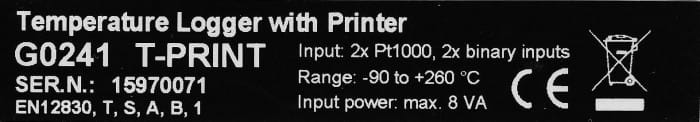

  • code
    G0241
  • Warranty
    3 years
Add to quote

Technical data

Measured value

Temperature
Two-state signal

TEMPERATURE SENSOR - external probe Pt1000

Measuring range -90 to +260 °C
Accuracy ±0.2 °C
Resolution 0.1 °C

GENERAL TECHNICAL DATA

Operating temperature -30 to +65 °C

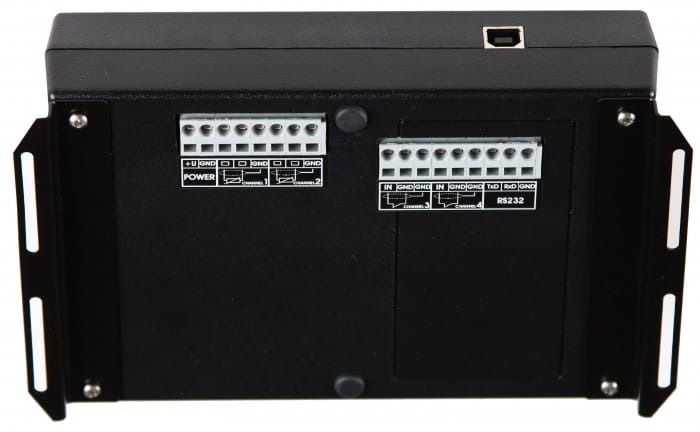

Channels 2x external temperature probe, 2x binary input
Memory 1MB (approx. 170 000 hodnot)
Recording interval adjustable from 60 seconds to 60 minutes
Display and alarm refresh each 10 s
Recording mode cyclic - after filling memory oldest data is overwritten by new
Real time clock year, leap year, month, day, hour, minute, second
Power 9 to 32 V dc, protected against alternator load shedding + internal Lithium battery
Consumption while printing/not printing approx. 8 W/approx. 0,1 W
Protection class IP20
Dimensions 175 x 124 x 51 mm
Weight approx. 700 g
Warranty 3 years

Features

Applications:

Aplikace - Zdravotnictví a laboratoře

Healtcare and laboratories - Monitoring of storage areas at temperatures up to -200 ° C.

Aplikace - Sklady

Food industry - Monitoring of critical processes according to the HACCP standard with the possibility of prompt notification of unforeseen events that could lead to the degradation of the goods.

Aplikace - Monitorování v průběhu přepravy

Goods transport - Complete temperature monitoring during transport of pharmaceuticals, foodstuffs, flowers, ...

Features description:

* the features may vary depending on the device type
● 2 hardware inputs for measuring of temperature and two-state events
● memory for half million values
● indication of alarm conditions via - SMS and integrated acoustic siren LEDs
● analytical software for data processing and configuration
● communication interfaces - USB, GPRS modem

3 Years Warranty Traceable Calibration Certificate Temperature Two-State Inputs Pulse Counting LCD Internal Memory
