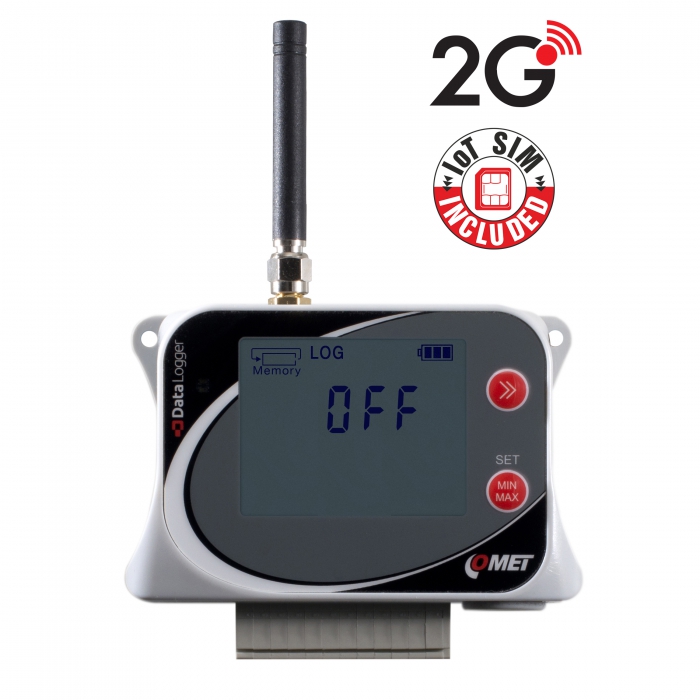

IoT Wireless Four channel Datalogger with pulse and two-state inputs, with built-in 2G modem and Flat Rate SIM Card

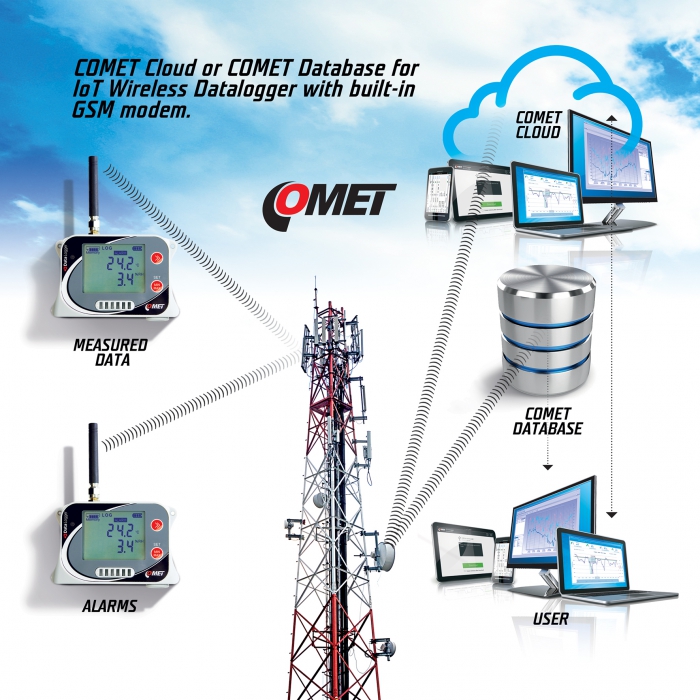

IoT Wireless Datalogger kit with built-in GSM modem and Flat Rate SIM Card allows the instant connection to the COMET Cloud.
IoT Datalogger is designed to record from four binary inputs or from two pulse and two binary inputs. In case of exceeded set limits e-mail is sent from the COMET Cloud.
Alarms are also indicated locally by LED, LCD and acoustically by built-in beeper.
The recording is performed in a non-volatile electronic memory. The data can be transferred to a PC via included USB-C cable.
GSM recorder includes Traceable calibration certificate with declared metrological traceability of etalons is based on requirements of EN ISO/IEC 17025 standard.
-
codeU7844Msim
-
Warranty3 years
Technical data
Measured value
BINARY INPUT
„H“ level input voltage:> 2 V;
Minimum voltage applicable:0 V;
Maximum voltage applicable:+30 V DC
Contact resistance in the „switched-off“ state:> 300 kOhm;
Contact voltage in the „switched-off“ state:ca 3 V;
Minimum state duration necessary for latching the state:1s
COUNTER INPUT
configured for a voltage-free or open-collector transistor - max. 200Hz
GSM MODEM PARAMETERS
GENERAL TECHNICAL DATA
cyclic - after filling memory oldest data is overwritten by new
Optional accessories and download
AC/DC adapter 230Vac to 5Vdc/2.1 A, EU
AC/DC adapter 230Vac to 5Vdc/2.1 A, UK
AC/DC adapter 230Vac to 5Vdc/2.1 A, US
Accupack A8205 for dataloggers "U"
USB-C cable, 1 meter
wall holder for datalogger - kopie
Holder for mounting the GSM or CO2 Datalogger on magnetic surfaces
COMET Database
COMET Cloud
COMET Vision - Software for Dataloggers and Multiloggers
Database Viewer for Comet Database
Magnetic door contact SA-200-A
Magnetic door contact with cable length 10m
Magnetic door contact with cable length 15m
Magnetic door contact with cable length 2m
Magnetic door contact with cable length 20m
Magnetic door contact with cable length 30m
Magnetic door contact with cable length 5m
Power detector SP008
Software
Comet Vision Software (2.3.8935.24346 dbapi 21.1)
Comet Database One Click Installer (21.1-V)
Conversions - application for recalculation of values
COMET Cloud Lite - Android (Google Play)
COMET Cloud Lite - iOS (App Store)
Others
Terms and Conditions COMET System s.r.o.
Manuals
Instruction Manual
Quick Start Manual
Safety Information
Manual for Calibration (accuracy verification) and Adjustment for Dataloggers Uxxxx(M)
Declaration of Conformity
Catalogs
CATALOG - Dataloggers
CATALOG - GSM loggers
Catalogue Sheets - COMET GSM Data Loggers
