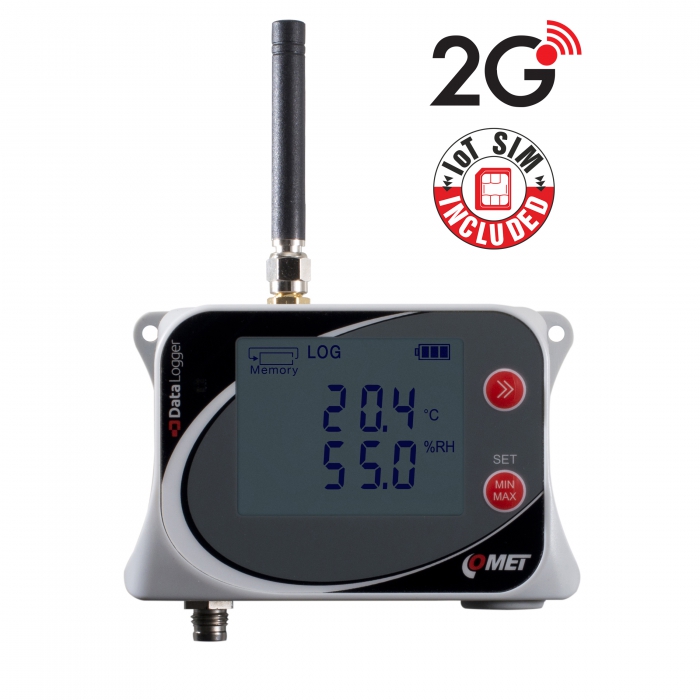

IoT Wireless Temperature and Relative Humidity Datalogger for external probe, with built-in 2G modem and Flat Rate SIM Card

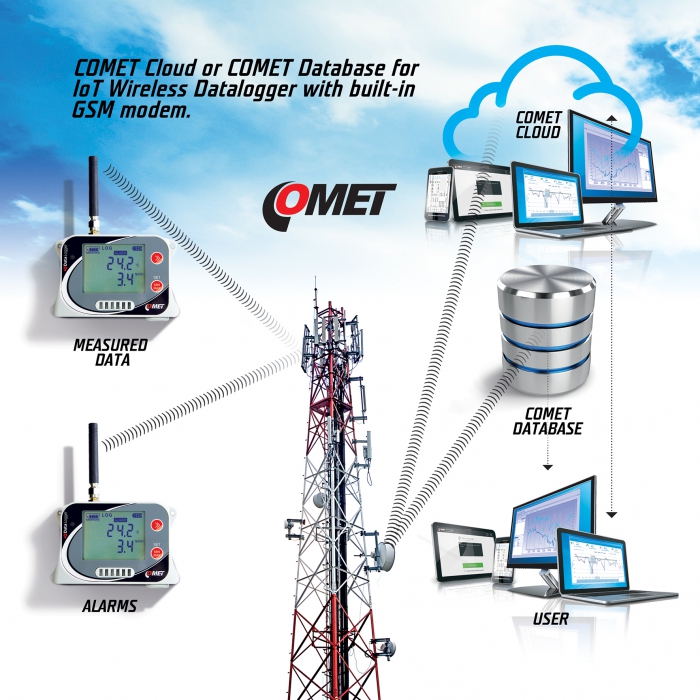

IoT Wireless Datalogger kit with built-in GSM modem and Flat Rate SIM Card allows the instant connection to the COMET Cloud.

IoT Datalogger is designed to record temperature and humidity from external sensors (not included). In case of exceeded set limits e-mail is sent from the COMET Cloud.

Alarms are also indicated locally by LED, LCD and acoustically by built-in beeper.
The recording is performed in a non-volatile electronic memory. The data can be transferred to a PC via included USB-C cable.

GSM recorder includes Traceable calibration certificate with declared metrological traceability of etalons is based on requirements of EN ISO/IEC 17025 standard.

code

U3121Msim
Warranty

3 years

Add to quote

Technical data

Measured value

Temperature

Relative humidity

Counted values (dew point…)

TEMPERATURE SENSOR

Measuring range according to the connected probe Digi/E

Accuracy according to the connected probe Digi/E

Resolution 0.1 °C

Response time t90 of temperature measurement (temperature step 20°C, air flow approximately 1m/s) 8 min

HUMIDITY SENSOR

Measuring range according to the connected probe Digi/E

Accuracy according to the connected probe Digi/E

Resolution 0.1% RH

DEW POINT

Measuring range according to the connected probe Digi/E

Accuracy according to the connected probe Digi/E

Resolution 0.1 °C

GSM MODEM PARAMETERS

Quad-band 850/900/1800/1900MHz

Compliant to GSM Phase2/2+

GPRS GPRS mobile station class B

Class 4 2W @ 850/900MHz

Class 1 1W @ 1800/1900MHz

GENERAL TECHNICAL DATA

Operating temperature -20 to +60 °C

Channels 1x connectable temperature+humidity probe

Memory 500,000 values in noncyclic logging mode; 350,000 values in cyclic record mode

Recording interval to the internal memory adjustable from 1 second to 24 hours

Recording interval to the COMET Cloud from 5 minutes

Interval for measuring and evaluating alarms adjustable 1 s, 10 s, 1 min

Recording mode noncyclic - data logging stops after filling the memory
cyclic - after filling memory oldest data is overwritten by new

Real time clock year, leap year, month, day, hour, minute, second

Power rechargeable Li-Ion battery A8200, 3.6V/5200mAh

Protection class IP67

Dimensions 61 x 93 x 53 mm, with antenna 120 x 93 x 53 mm

Weight (including batteries) approx. 260 g

Warranty 3 years

Optional accessories and download

Ultra thin digital temperature/humidity probe

Temperature range: -10 to 60°C

code DIGIH/E-1

Ultra thin digital temperature/humidity probe, cable 2 m

Temperature range: -10 to 60°C

code DIGIH/E-2

Ultra thin digital temperature/humidity probe, cable 5 m

Temperature range: -10 to 60°C

code DIGIH/E-5

Digital temperature/humidity probe

Temperature range: -20 to 80°C

code DIGIL/E

Digital temperature/humidity probe, cable 1 m

Temperature range: -30 to 105°C

code DIGIL/E-1

Digital temperature/humidity probe, cable 10 m

Temperature range: -30 to 105°C

code DIGIL/E-10

Digital temperature/humidity probe, cable 15 m

Temperature range: -30 to 105°C

code DIGIL/E-15

Digital temperature/humidity probe, cable 2 m

Temperature range: -30 to 105°C

code DIGIL/E-2

Digital temperature/humidity probe, cable 5 m

Temperature range: -30 to 105°C

code DIGIL/E-5

Digital temperature/humidity probe

Temperature range: -20 to 80°C

code DIGIS/E

Digital temperature/humidity probe, cable 1 m

Temperature range: -10 to 60°C

code DIGIS/E-1

Digital temperature/humidity probe, cable 10 m

Temperature range: -10 to 60°C

code DIGIS/E-10

Digital temperature/humidity probe, cable 15 m

Temperature range: -10 to 60°C

code DIGIS/E-15

Digital temperature/humidity probe, cable 2 m

Temperature range: -10 to 60°C

code DIGIS/E-2

Digital temperature/humidity probe, cable 5 m

Temperature range: -10 to 60°C

code DIGIS/E-5

AC/DC adapter 230Vac to 5Vdc/2.1 A, EU

code A1879eu

AC/DC adapter 230Vac to 5Vdc/2.1 A, UK

code A1879uk

AC/DC adapter 230Vac to 5Vdc/2.1 A, US

code A1879us

Accupack A8205 for dataloggers "U"

code A8205

Accredited temperature and relative humidity calibration

code SLU003

USB-C cable, 1 meter

code MP053

wall holder for datalogger - kopie

code LP100

Holder for mounting the GSM or CO2 Datalogger on magnetic surfaces

COMET Database

COMET Cloud

COMET Vision - Software for Dataloggers and Multiloggers

code CV

Database Viewer for Comet Database

code DBV

COMETEO Professional Multi-Plate Radiation Shield for Weather Sensors
