Technical data

Measured value

Temperature
Two-state signal

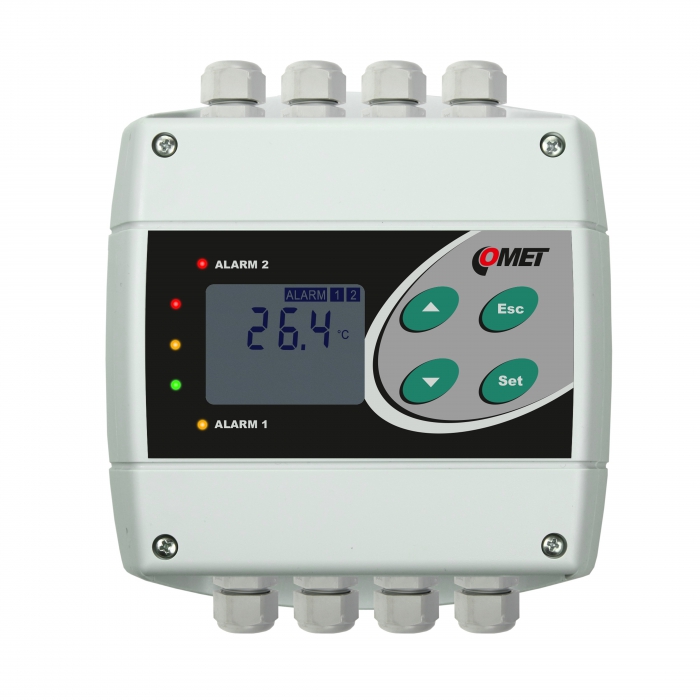

TEMPERATURE SENSOR - external probe Pt1000

Measuring range -200 to +600 °C
Accuracy ±0.2 °C
Resolution 0.1 °C

RELAY OUTPUTS

Quantity 2
Maximal voltage 50 V
Maximal current 2 A
Maximal power 60 VA

BINARY INPUTS

Quantity 3
Signal for binary inputy dry contact, open collector or two-state voltage signal.
Inputs are not galvanically isolated.
Minimum pulse duration on binary input 500 ms
Voltage across open contact < 3,3 V
Low voltage level 0 to +0,5 V
High voltage level +3,0 to +30 V

GENERAL TECHNICAL DATA

Operating temperature -30 to +80 °C
Channels 1x external temperature probe
Acoustic alarm from built-in beeper - switchable
Output RS232
Range of humidity sensor temperature compensation all temperature range
Available temperature units degrees Celsius, degrees Fahrenheit
Communication protocol ModBus RTU and Advantech ADAM compatible protocol
Power 9-30 Vdc
Protection class IP65 electronics; IP40 sensors
Dimensions 136 x 213 x 45 mm; stem length 75mm
Weight approx. 350 g
Warranty 3 years

Features

Applications:

Aplikace - Sklady

Production facilities and warehouses - Monitoring of storage conditions and production processes in the temperature range -200 ° C to + 600 ° C.

Aplikace - Serverovny a datová centra

Metrology - COMET sensors together with COMET radiationshields are the ideal basis for weather stations for long-term weather, climate and air monitoring.

Aplikace - Zdravotnictví a laboratoře

Healtcare and laboratories - -200 °C.

Aplikace - Průmysl

Industry and production - monitoring temperature and humidity in food, pharmaceutical, aerospace etc.

Aplikace - Sklady

Food industry - Monitoring of critical processes according to the HACCP standard with the possibility of prompt notification of unforeseen events that could lead to the degradation of the goods.

Aplikace - Sklady

Building management - Our instruments which measure temperature, humidity, atmospheric pressure and CO2 are an integral part of these industry-leading solutions.



Features description:

* the features may vary depending on the device type
● accurate measurement of Temperature, Relative humidity, Dew point, Atmospheric pressure, CO2, Two-state events
● industrial or interior design with protection up to IP65
● integrated sensors, external probe, duct mount design
● relays output 250Vac / 8A or 50 V on selected models

Záruka 3 roky Kalibrační list Teplotní čidlo Teplotní čidlo Teplotní čidlo Tlakové čidlo Rosný bod Dvouřádkový LCD displej Výstup RS232 Výstup RS485

Komunikační protokol MODBUS Komunikační protokol Komunikační protokol


Optional accessories and download

Pt1000TG8/0, temperature probe

Pt1000TG8/0, temperature probe

Temperature range: -80 to 200°C
code SN104
Pt1000TG8/0, temperature probe, cable 2 m

Pt1000TG8/0, temperature probe, cable 2 m

Temperature range: -80 to 200°C
code SN105
Pt1000TG8/0, temperature probe, cable 5 m

Pt1000TG8/0, temperature probe, cable 5 m

Temperature range: -80 to 200°C
code SN108
Pt1000TG8/0, temperature probe, cable 10 m

Pt1000TG8/0, temperature probe, cable 10 m

Temperature range: -80 to 200°C
code SN113
2061-250/0 Temperature probe

2061-250/0 Temperature probe

Temperature range: -30 to 250°C
code SN147
2061-250/0 2 m Temperature probe

2061-250/0 2 m Temperature probe

Temperature range: -30 to 250°C
code SN148
2061-250/0 5 m Temperature probe

2061-250/0 5 m Temperature probe

Temperature range: -30 to 250°C
code SN151
2061-250/0 10 m Temperature probe

2061-250/0 10 m Temperature probe

Temperature range: -30 to 250°C
code SN156
Pt1000TG7/0, temperature probe

Pt1000TG7/0, temperature probe

Temperature range: -50 to 200°C
code SN164
Pt1000TG7/0, temperature probe, cable 2 m

Pt1000TG7/0, temperature probe, cable 2 m

Temperature range: -50 to 200°C
code SN165
Pt1000TG7/0, temperature probe, cable 5 m

Pt1000TG7/0, temperature probe, cable 5 m

Temperature range: -50 to 200°C
code SN166
Pt1000TG7/0, temperature probe, cable 10 m

Pt1000TG7/0, temperature probe, cable 10 m

Temperature range: -50 to 200°C
code SN167
2301-220/0, temperature probe, cable 1 m

2301-220/0, temperature probe, cable 1 m

Temperature range: -30 to 220°C
code SN168
2021-150/0, temperature probe, cable 1 m

2021-150/0, temperature probe, cable 1 m

Temperature range: -30 to 150°C
code SN169
PTS350A-2/0, temperature probe, cable 2 m

PTS350A-2/0, temperature probe, cable 2 m

Temperature range: -30 to 130°C
code SN170
2034-220/0, temperature probe, cable 1 m

2034-220/0, temperature probe, cable 1 m

Temperature range: -30 to 150°C
code SN175
2061-200/0, temperature probe, cable 1 m

2061-200/0, temperature probe, cable 1 m

Temperature range: -50 to 200°C
code SN178
2061-200/0, temperature probe, cable 2 m

2061-200/0, temperature probe, cable 2 m

Temperature range: -50 to 200°C
code SN179
2061-200/0, temperature probe, cable 5 m

2061-200/0, temperature probe, cable 5 m

Temperature range: -50 to 200°C
code SN180
2061-200/0, temperature probe, cable 10 m

2061-200/0, temperature probe, cable 10 m

Temperature range: -50 to 200°C
code SN181
PTS350A-5/0, temperature probe, cable 5 m

PTS350A-5/0, temperature probe, cable 5 m

Temperature range: -30 to 130°C
code SN182
PTS350A-10/0, temperature probe, cable 10 m

PTS350A-10/0, temperature probe, cable 10 m

Temperature range: -30 to 130°C
code SN183
Pt1000TGL40/0, temperature probe, cable 1 m

Pt1000TGL40/0, temperature probe, cable 1 m

Temperature range: -30 to 80°C
code SN185
Pt1000TGL40/0, temperature probe, cable 2 m

Pt1000TGL40/0, temperature probe, cable 2 m

Temperature range: -30 to 80°C
code SN186
Pt1000TGL40/0, temperature probe, cable 5 m

Pt1000TGL40/0, temperature probe, cable 5 m

Temperature range: -30 to 80°C
code SN187
Pt1000TGL40/0, temperature probe, cable 10 m

Pt1000TGL40/0, temperature probe, cable 10 m

Temperature range: -30 to 80°C
code SN188
Pt1000TR160/0, temperature probe, cable 1 m

Pt1000TR160/0, temperature probe, cable 1 m

Temperature range: -30 to 80°C
code SN199
Pt1000TR160/0, temperature probe, cable 2 m

Pt1000TR160/0, temperature probe, cable 2 m

Temperature range: -30 to 80°C
code SN200
Pt1000TR160/0, temperature probe, cable 5 m

Pt1000TR160/0, temperature probe, cable 5 m

Temperature range: -30 to 80°C
code SN201
Pt1000TR160/0, temperature probe, cable 10 m

Pt1000TR160/0, temperature probe, cable 10 m

Temperature range: -30 to 80°C
code SN202
Pt1000TR160/0, temperature probe, cable 15 m

Pt1000TR160/0, temperature probe, cable 15 m

Temperature range: -30 to 80°C
code SN203
Pt1000TR160/0, temperature probe, cable 20 m

Pt1000TR160/0, temperature probe, cable 20 m

Temperature range: -30 to 80°C
code SN204
PTS380K/0 temperature sensor with a stainless steel connection head and connector

PTS380K/0 temperature sensor with a stainless steel connection head and connector

Temperature range: -30 to 100°C
code SN205
2091-250/0, Stick-in probe, cable 1 m

2091-250/0, Stick-in probe, cable 1 m

Temperature range: -50 to 250°C
code SN210
2091-250/0, Stick-in probe, cable 2 m

2091-250/0, Stick-in probe, cable 2 m

Temperature range: -50 to 250°C
code SN211
2091-250/0, Stick-in probe, cable 5 m

2091-250/0, Stick-in probe, cable 5 m

Temperature range: -50 to 250°C
code SN212
2091-250/0, Stick-in probe, cable 10 m

2091-250/0, Stick-in probe, cable 10 m

Temperature range: -50 to 250°C
code SN213
2071-030/0, special probe with CINCH connector

2071-030/0, special probe with CINCH connector

Temperature range: -30 to 80°C
code SN214
Pt1000TG68/0, temperature probe, cable 2 m

Pt1000TG68/0, temperature probe, cable 2 m

Temperature range: -50 to 200°C
code SN232
Pt1000TG68/0, temperature probe, cable 5 m

Pt1000TG68/0, temperature probe, cable 5 m

Temperature range: -50 to 200°C
code SN233
Pt1000TG68/0, temperature probe, cable 10 m

Pt1000TG68/0, temperature probe, cable 10 m

Temperature range: -50 to 200°C
code SN234
Pt1000TR125/0, temperature probe, cable 1 m

Pt1000TR125/0, temperature probe, cable 1 m

Temperature range: -190 to 150°C
code SN239
Pt1000TR125/0, temperature probe, cable 2 m

Pt1000TR125/0, temperature probe, cable 2 m

Temperature range: -190 to 150°C
code SN240
Pt1000TR125/0, temperature probe, cable 5 m

Pt1000TR125/0, temperature probe, cable 5 m

Temperature range: -190 to 150°C
code SN241
Pt1000TR125/0, cryogenic temperature probe, cable 10 m

Pt1000TR125/0, cryogenic temperature probe, cable 10 m

Temperature range: -190 to 150°C
code SN242
Pt1000TR050S/0, temperature probe, cable 1 m

Pt1000TR050S/0, temperature probe, cable 1 m

Temperature range: -50 to 400°C
Discontinued
Pt1000TR050S/0, temperature probe, cable 2 m

Pt1000TR050S/0, temperature probe, cable 2 m

Temperature range: -50 to 400°C
Discontinued
Pt1000TR050S/0, temperature probe, cable 5 m

Pt1000TR050S/0, temperature probe, cable 5 m

Temperature range: -50 to 400°C
Discontinued
Ultra thin temperature probe Pt1000TG3/0, without connector

Ultra thin temperature probe Pt1000TG3/0, without connector

Temperature range: -50 to 200°C
code SN252
Ultra thin temperature probe Pt1000TG3/0, without connector, cable 2 meters

Ultra thin temperature probe Pt1000TG3/0, without connector, cable 2 meters

Temperature range: -50 to 200°C
code SN254
Ultra thin temperature probe Pt1000TG3/0, without connector, cable 5 meters

Ultra thin temperature probe Pt1000TG3/0, without connector, cable 5 meters

Temperature range: -50 to 200°C
code SN255
Ultra thin temperature probe Pt1000TG3/0, without connector, cable 10 meters

Ultra thin temperature probe Pt1000TG3/0, without connector, cable 10 meters

Temperature range: -50 to 200°C
code SN256
Temperature probe Pt1000TR050S/0, without connector, cable 10 meters

Temperature probe Pt1000TR050S/0, without connector, cable 10 meters

Temperature range: -50 to 400°C
Discontinued
Ambient temperature probe, 201-80/C

Ambient temperature probe, 201-80/C

Temperature range: -30 to 80°C
code SN258
Temperature probe Pt1000TG8Ex/0, without connector, for ATEX zone II

Temperature probe Pt1000TG8Ex/0, without connector, for ATEX zone II

Temperature range: -30 to 180°C
code SN263
Temperature probe Pt1000TG8Ex/0, without connector, for ATEX zone II, cable 2 meters

Temperature probe Pt1000TG8Ex/0, without connector, for ATEX zone II, cable 2 meters

Temperature range: -30 to 180°C
code SN264
Temperature probe Pt1000TG8Ex/0, without connector, for ATEX zone II, cable 5 meters

Temperature probe Pt1000TG8Ex/0, without connector, for ATEX zone II, cable 5 meters

Temperature range: -30 to 180°C
code SN265
Temperature probe Pt1000TG8Ex/0, without connector, for ATEX zone II, cable 10 meters

Temperature probe Pt1000TG8Ex/0, without connector, for ATEX zone II, cable 10 meters

Temperature range: -30 to 180°C
code SN266
Temperature probe Pt1000TG8Ex/0, without connector, for ATEX zone II, cable 15 meters

Temperature probe Pt1000TG8Ex/0, without connector, for ATEX zone II, cable 15 meters

Temperature range: -30 to 180°C
code SN267
Pt1000TR050M/0, temperature probe, cable 1 m

Pt1000TR050M/0, temperature probe, cable 1 m

Temperature range: -50 to 400°C
code SN270
Pt1000TR050M/0, temperature probe, cable 2 m

Pt1000TR050M/0, temperature probe, cable 2 m

Temperature range: -50 to 400°C
code SN271
Pt1000TR050M/0, temperature probe, cable 5 m

Pt1000TR050M/0, temperature probe, cable 5 m

Temperature range: -50 to 400°C
code SN272
Pt1000TR050M/0, temperature probe, cable 10 m

Pt1000TR050M/0, temperature probe, cable 10 m

Temperature range: -50 to 400°C
code SN273

Ac/dc adapter 12V/450mA stabilized, EU

Ac/dc adapter 12V/450mA stabilized, EU

code A1510eu
Ac/dc adapter 12V/450mA stabilized, UK

Ac/dc adapter 12V/450mA stabilized, UK

code A1510uk
Ac/dc adapter 12V/450mA stabilized, US

Ac/dc adapter 12V/450mA stabilized, US

code A1510us

Transducer USB/RS232 complete

Transducer USB/RS232 complete

code MP006

Holder for mounting the COMET Transmitter on magnetic surfaces

Holder for mounting the COMET Transmitter on magnetic surfaces

code SP103

Motion detector JS20

Motion detector JS20

code JS20
The LD-12 flood detector

The LD-12 flood detector

code LD12
Magnetic door contact SA-200-A

Magnetic door contact SA-200-A

code SA200A
Magnetic door contact with cable length 10m

Magnetic door contact with cable length 10m

code SA200A-10
Magnetic door contact with cable length 15m

Magnetic door contact with cable length 15m

code SA200A-15
Magnetic door contact with cable length 2m

Magnetic door contact with cable length 2m

code SA200A-2
Magnetic door contact with cable length 20m

Magnetic door contact with cable length 20m

code SA200A-20
Magnetic door contact with cable length 30m

Magnetic door contact with cable length 30m

code SA200A-30
Magnetic door contact with cable length 5m

Magnetic door contact with cable length 5m

code SA200A-5
The optical smoke detector SD-283ST

The optical smoke detector SD-283ST

code SD280
Power detector SP008

Power detector SP008

code SP008

Tool for easy connection to WAGO terminals 233 for serial output transmitters

Tool for easy connection to WAGO terminals 233 for serial output transmitters

code SP006

Software

download-icon Comet Database One Click Installer (21.1-V)
487.31 MB
download-icon Database Viewer 3.20.0.0 dbapi 21.1
24.33 MB
download-icon TSensor (3-5-5-0)
2.90 MB
download-icon Sensor Reader (2-0-8-0)
2.78 MB
download-icon Sensor RS485/232 utility (1-0-0-18)
2.05 MB
download-icon Conversions - application for recalculation of values
694.50 KB

Others

download-icon Terms and Conditions COMET System s.r.o.
133.12 KB

Manuals

download-icon Instruction Manual
1.65 MB
download-icon Quick Start Manual
949.89 KB
download-icon Declaration of Conformity
61.03 KB
download-icon Description of communication protocols of Hx3xx and Hx4xx transmitters with RS232 and RS485 communication interface
649.72 KB

Catalogs

download-icon CATALOG - Digital sensors and regulators with serial RS485/RS232 output
7.49 MB
download-icon Catalogue Sheets - COMET Regulators
1.31 MB

Related products

Temperature transmitter with RS485 output

Temperature transmitter with RS485 output

code H4431
Wireless IoT thermometer for external probe, Sigfox

Wireless IoT thermometer for external probe, Sigfox

code W0811
IoT Wireless Temperature Datalogger for 4 external probes, with built-in 2G modem

IoT Wireless Temperature Datalogger for 4 external probes, with built-in 2G modem

code U0141M

Contact

COMET AFRICA
Suite 32, Cornerstone Business Park
Brackengate, Hamman Road
Brackenfell, 7560
Cape Town, South Africa

E-mail: info@comet-africa.com

Telephone customer support
Phone: +27 21 975 2111

What we do

COMET AFRICA specialises in the supply, design and implementation of cold chain management solutions. With many years’ experience in cold chain management, COMET AFRICA has grown by adding new products to its market offering, namely: SMS notification, GPRS Remote Data Access, Online Data Hosting, IOT sensors and Custom Software for turnkey solutions.

We have a number of distribution points throughout Africa, including Kenya, Uganda, Ghana, Zambia, Botswana and Lesotho.

We offer a wide range of products from Hand Held devices and Loggers, to fully integrated Temperature, Humidity, CO2 and Pressure monitoring, recording, alarming and notifying systems.

The business philosophy of COMET AFRICA is to continually expand by upgrading products and services to keep up with changing technology.

The Success of COMET AFRICA to date has resulted from the delivery of high end products and solutions to the industrial sector with continued attention to customer service.



© Copyright 2024 COMET SYSTEM, s.r.o. | Webdesign by Spaneco
