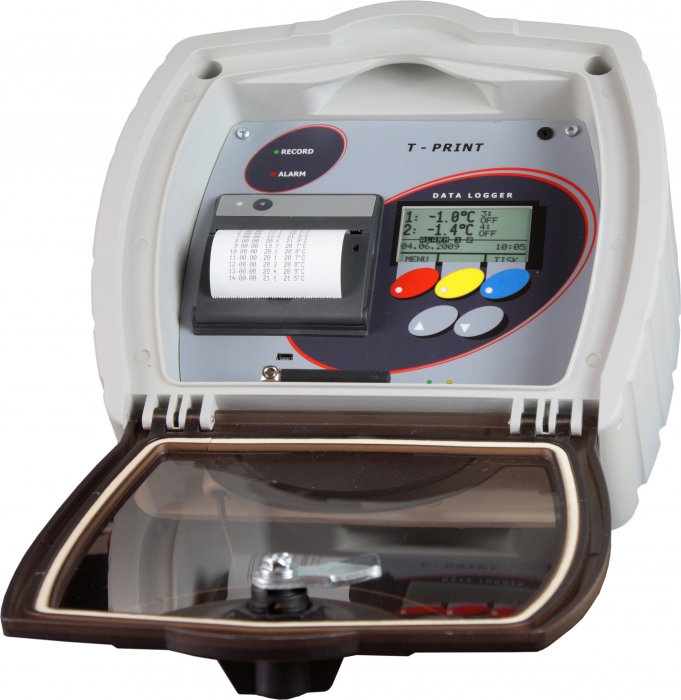

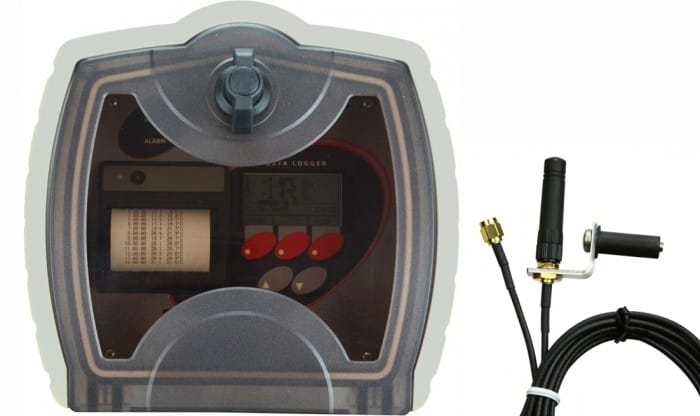

Temperature recorder for semi-trailer with built-in GSM modem

Temperature recorder for semi-trailer with built-in GSM modem
Temperature recorder for semi-trailer with built-in GSM modem
Temperature recorder for semi-trailer with built-in GSM modem
Temperature recorder for semi-trailer with built-in GSM modem
Temperature recorder for semi-trailer with built-in GSM modem
Temperature recorder for semi-trailer with built-in GSM modem
Temperature recorder for semi-trailer with built-in GSM modem
Temperature recorder for semi-trailer with built-in GSM modem
Temperature recorder for semi-trailer with built-in GSM modem
Temperature recorder for semi-trailer with built-in GSM modem
Temperature recorder for semi-trailer with built-in GSM modem
Temperature recorder for semi-trailer with built-in GSM modem
Temperature recorder for semi-trailer with built-in GSM modem
Temperature recorder for semi-trailer with built-in GSM modem
Temperature recorder for semi-trailer with built-in GSM modem
Temperature recorder for semi-trailer with built-in GSM modem

Complete solution for temperature record during the transport.

The device includes Traceable calibration certificate with declared metrological traceability of etalons is based on requirements of EN ISO/IEC 17025 standard.

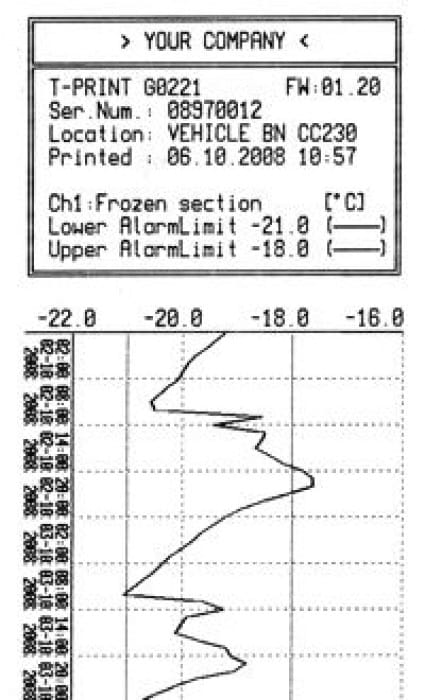

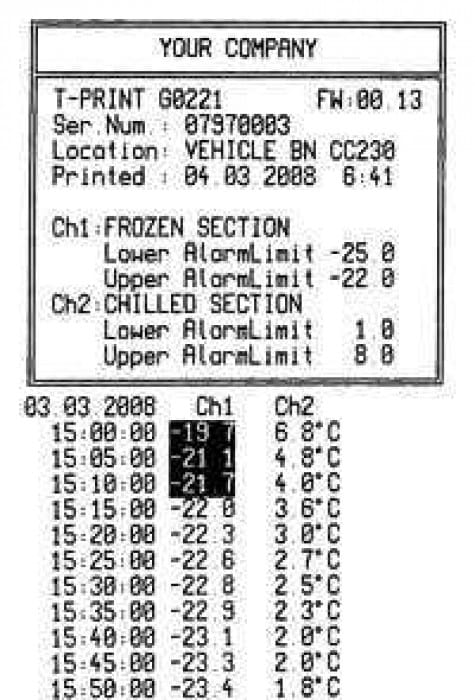

  • print-out of temperature record during transport of food, pharmaceuticals, flowers, live animals and other goods
  • designed specifically for external installation on semi-trailers
  • easy installation

  • code

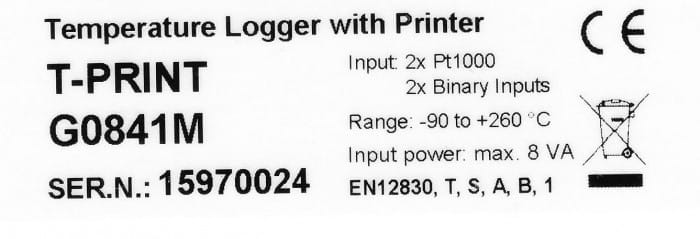

    G0841M
  • Warranty
    3 years
Add to quote

Technical data

Measured value

Temperature
Two-state signal

TEMPERATURE SENSOR - external probe Pt1000

Measuring range -90 to +260 °C
Accuracy ±0.2 °C
Resolution 0.1 °C

GENERAL TECHNICAL DATA

Operating temperature -30 to +65 °C
Channels 2x external temperature probe, 2x binary input
Memory 1MB (approx. 170 000 hodnot)
Recording interval adjustable from 60 seconds to 60 minutes
Display and alarm refresh each 10 s
Recording mode cyclic - after filling memory oldest data is overwritten by new
Real time clock year, leap year, month, day, hour, minute, second
Power 9 to 32 V dc, protected against alternator load shedding + internal Lithium battery
Consumption while printing/not printing approx. 8 W/approx. 0,1 W
Protection class IP65
Dimensions 250 x 242 x 110 mm
Weight approx. 1650 g
Warranty 3 years

Features

Applications:

Aplikace - Zdravotnictví a laboratoře

Healtcare and laboratories - Monitoring of storage areas at temperatures up to -200 ° C.

Aplikace - Sklady

Food industry - Monitoring of critical processes according to the HACCP standard with the possibility of prompt notification of unforeseen events that could lead to the degradation of the goods.

Aplikace - Monitorování v průběhu přepravy

Goods transport - Complete temperature monitoring during transport of pharmaceuticals, foodstuffs, flowers, ...

Features description:

* the features may vary depending on the device type
● 2 hardware inputs for measuring of temperature and two-state events
● memory for half million values
● indication of alarm conditions via - SMS and integrated acoustic siren LEDs
● analytical software for data processing and configuration

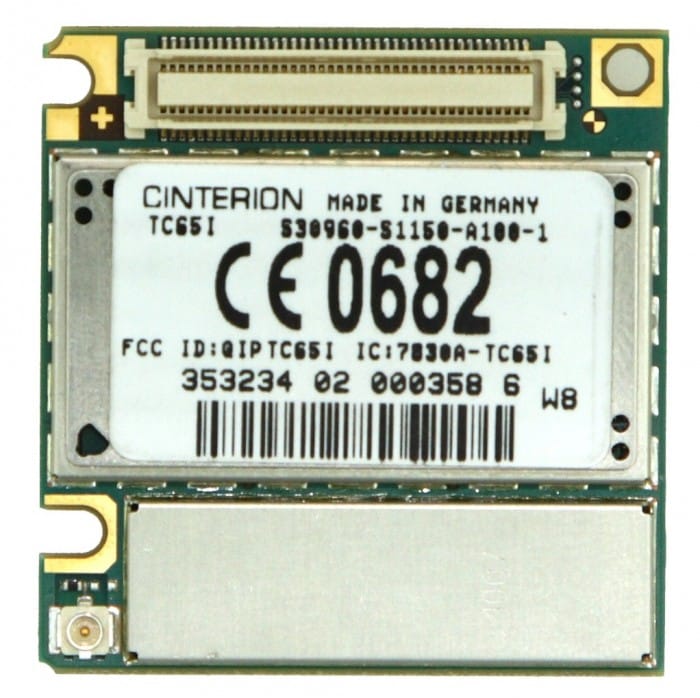

● communication interfaces - USB, GPRS modem

3 Years Warranty Traceable Calibration Certificate Temperature Two-State Inputs Pulse Counting LCD Internal Memory
