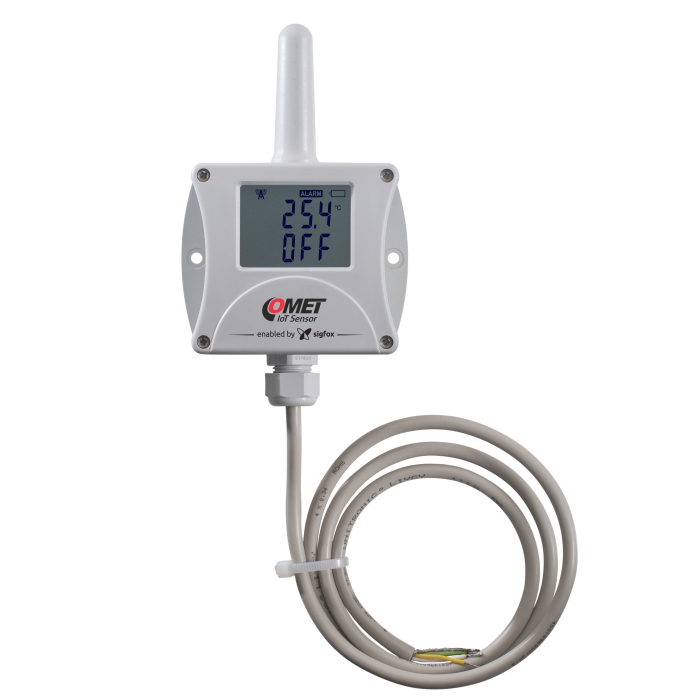

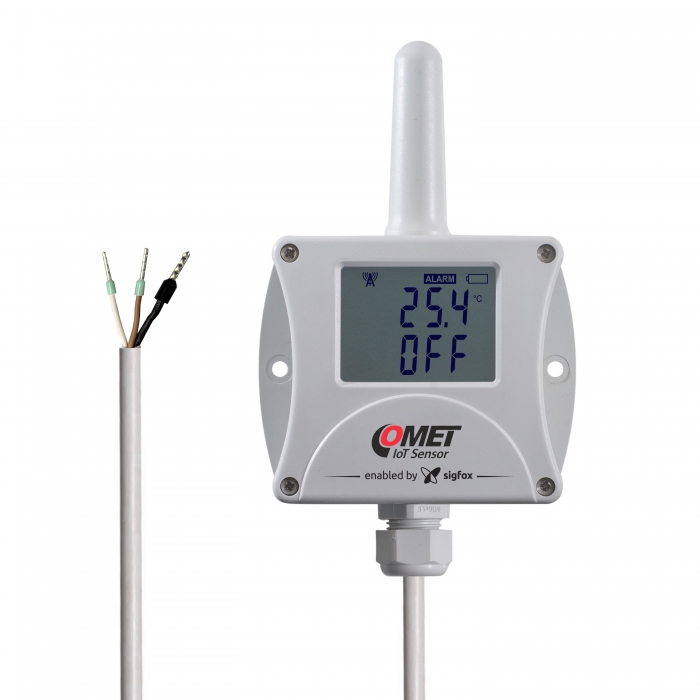

Wireless thermometer with two two-state inputs, Sigfox IoT
Wireless thermometer measures temperature from the built-in internal sensor and evaluates two binary inputs. It features a simple, compact design and is positioned directly in the measured area.

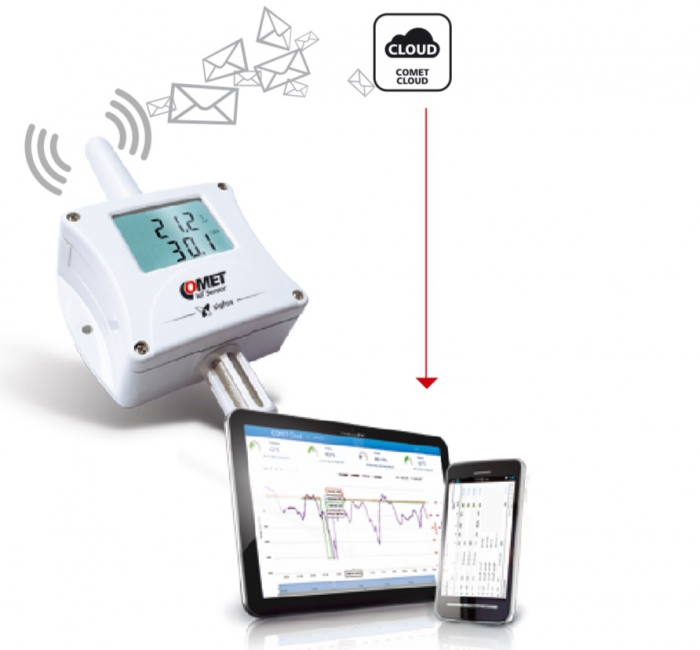

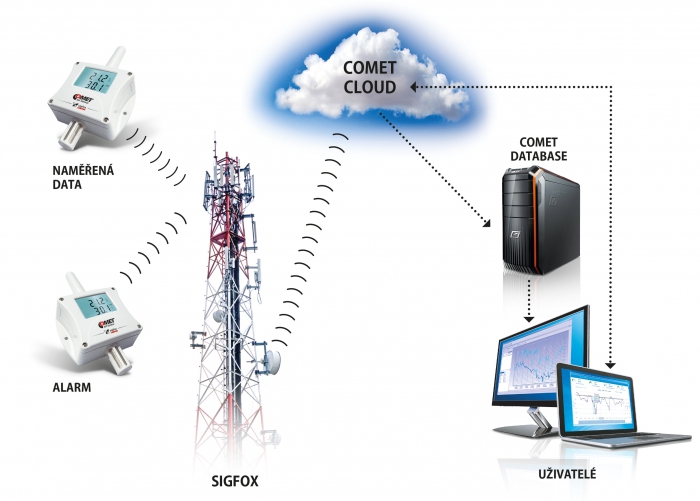

Measured values are displayed on the display and are regularly sent, in an adjustable time interval from 10 min to 24 h, by radio transmission in Sigfox to COMET Cloud. After the emergence of a new alarm (or the extinction of an alarm in progress), an extraordinary alarm message is sent at the latest within 10 minutes.
The device includes Traceable calibration certificate with declared metrological traceability of etalons is based on requirements of EN ISO/IEC 17025 standard.
Radio configuration zone RC1. More information about Sigfox Radio Configurations (RC).
Check the Sigfox coverage in your region.
-
codeW0850
-
Warranty3 years
Technical data
Measured value
Temperature
Two-state signal
TEMPERATURE SENSOR
Measuring range
-30 to +60 °C
Accuracy
±0.4 °C
Resolution
0.1 °C
Response time t90 of temperature measurement (temperature step 20°C, air flow approximately 1m/s)
10 minutes
BINARY INPUT
Parameters of the voltage contact
Input voltage level „L“:< 1.5 V;
Input voltage level „H“:> 4 V;
Minimum input voltage: 0 V;
Maximum input voltage:+30 V DC
Input voltage level „H“:> 4 V;
Minimum input voltage: 0 V;
Maximum input voltage:+30 V DC
Parameters of the voltage-free contact
Contact resistance for
GENERAL TECHNICAL DATA
Operating temperature
-30 to +60 °C
Channels
internal temperature sensor, binary input
Message transmission interval
adjustable 10 minutes, 20 minutes, 30 minutes,1 hour, 3 hours, 6 hours, 12 hours, 24 hours
Alarm message sending interval
10 minutes
Operating frequency
868 MHz
Maximum transmission power
25mW
Sigfox radiation class
0U
Radio configuration zone
RC1 (operation is possible in Europe, Iran, Oman and South Africa)
Typical range of transmitter
50 km in the field, 3 km in the city
Power
Lithium battery 3.6 V, AA size
Protection class
IP65

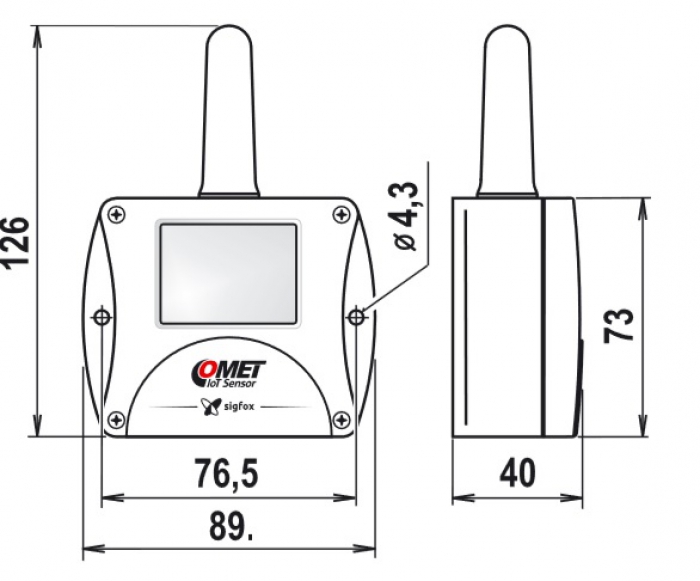

Dimensions
126 x 89 x 40mm
Weight (including batteries)
150g
Warranty
3 years

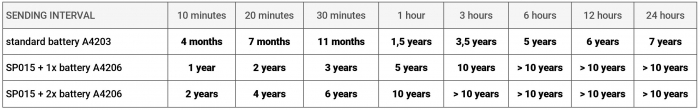

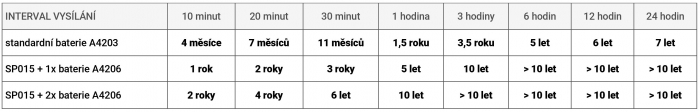

Battery lifetime
| Sending interval | 10 minutes | 20 minutes | 30 minutes | 1 hour | 3 hours | 6 hours | 12 hours | 24 hours |
|---|---|---|---|---|---|---|---|---|
| lithium battery A4203 - 2200mAh | 4 months | 7 months | 11 months | 1,5 years | 3,5 years | 5 years | 6 years | 7 years |
| battery holder (SP015) + 1x lithium battery A4206 - 8500mAh | 1 year | 2 years | 3 years | 5 years | 10 years | > 10 years | > 10 years | > 10 years |
| battery holder (SP015) + 2x lithium battery A4206 - 8500mAh | 2 years | 4 years | 6 years | 10 years | > 10 years | > 10 years | > 10 years | > 10 years |
