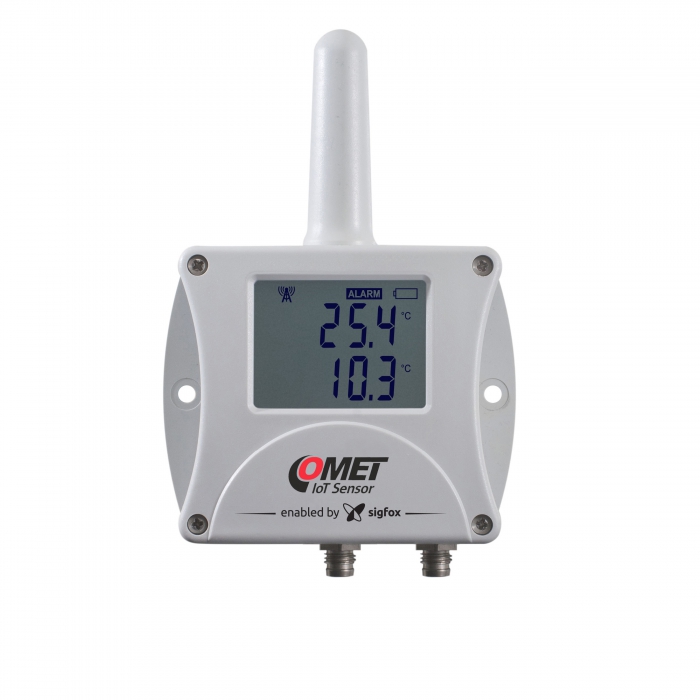

Wireless thermometer with three-channels, IoT Sigfox
Wireless thermometer measures temperature from the built-in internal sensor and from two external Pt1000 probes (not included).

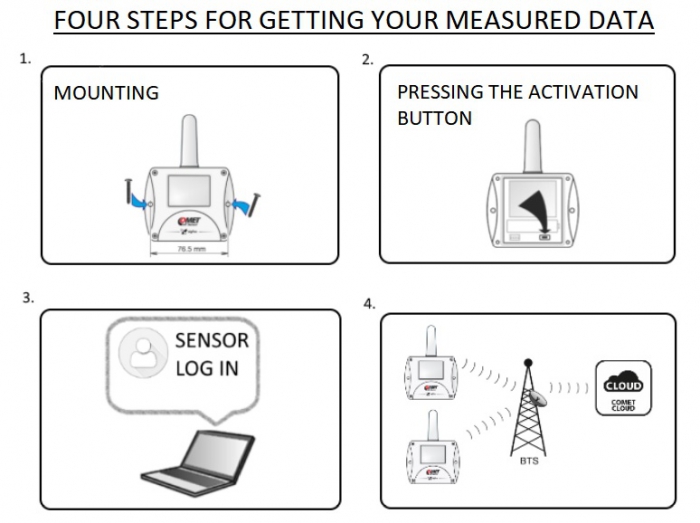

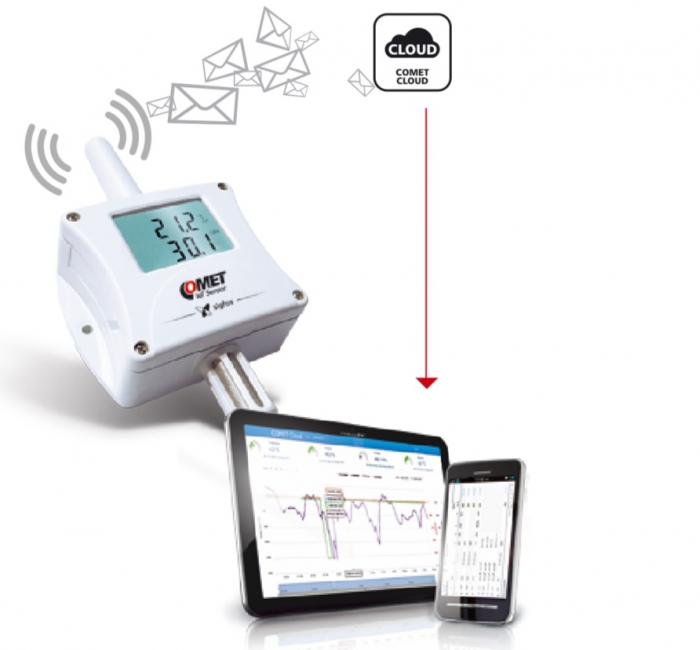

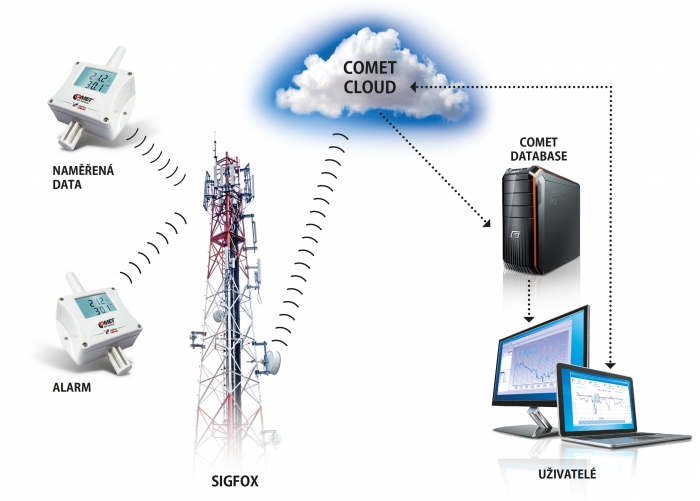

Measured values are displayed on the display and are regularly sent, in an adjustable time interval from 10 min to 24 h, by radio transmission in Sigfox to COMET Cloud. After the emergence of a new alarm (or the extinction of an alarm in progress), an extraordinary alarm message is sent at the latest within 10 minutes.
The device includes Traceable calibration certificate with declared metrological traceability of etalons is based on requirements of EN ISO/IEC 17025 standard.
Radio configuration zone RC1. More information about Sigfox Radio Configurations (RC).
Check the Sigfox coverage in your region.
-
codeW0832
-
Warranty3 years
Technical data
Measured value
Temperature
TEMPERATURE SENSOR
Measuring range
-30 to +60 °C
Accuracy
±0.4 °C
Resolution
0.1 °C
Response time t90 of temperature measurement (temperature step 20°C, air flow approximately 1m/s)
10 minutes
TEMPERATURE SENSOR - external probe Pt1000
Measuring range
-200 to +260 °C
Accuracy
±0.2 °C in the range -200 to +100 °C; ±0.2 % from reading from +100 to +260 °C
Resolution
0.1 °C
GENERAL TECHNICAL DATA
Operating temperature
-30 to +60 °C
Channels
internal temperature sensor, 2x external probe P1000
Message transmission interval
adjustable 10 minuteses, 20 minutes, 30 minutes,1 hour, 3 hours, 6 hours, 12 hours, 24 hours
Operating frequency
868 MHz
Maximum transmission power
25mW
Sigfox radiation class
0U
Radio configuration zone
RC1 (operation is possible in Europe, Iran, Oman and South Africa)
Typical range of transmitter
50 km in the field, 3 km in the city
Power
Lithium battery 3.6 V, AA size
Protection class
IP65

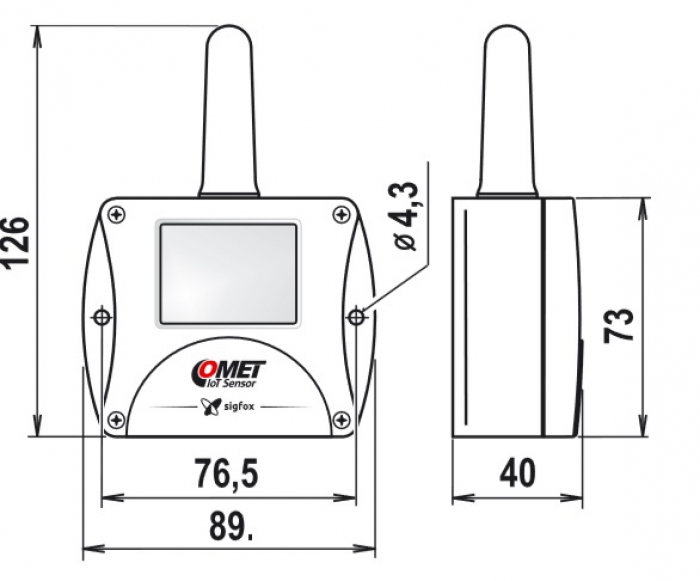

Dimensions
126 x 89 x 40mm
Weight (including batteries)
150g
Warranty
3 years

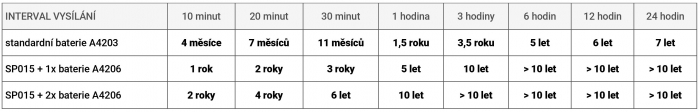

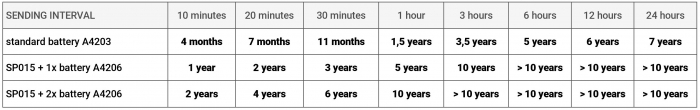

Battery lifetime
| Sending interval | 10 minutes | 20 minutes | 30 minutes | 1 hour | 3 hours | 6 hours | 12 hours | 24 hours |
|---|---|---|---|---|---|---|---|---|
| lithium battery A4203 - 2200mAh | 4 months | 7 months | 11 months | 1,5 years | 3,5 years | 5 years | 6 years | 7 years |
| battery holder (SP015) + 1x lithium battery A4206 - 8500mAh | 1 year | 2 years | 3 years | 5 years | 10 years | > 10 years | > 10 years | > 10 years |
| battery holder (SP015) + 2x lithium battery A4206 - 8500mAh | 2 years | 4 years | 6 years | 10 years | > 10 years | > 10 years | > 10 years | > 10 years |
Optional accessories and download
Pt1000TG8/E, temperature probe
Temperature range: -80 to 200°C
code
SN104E
Pt1000TG8/E, temperature probe, cable 2 m
Temperature range: -80 to 200°C
code
SN105E
Pt1000TG8/E, temperature probe, cable 5 m
Temperature range: -80 to 200°C
code
SN108E
Pt1000TG8/E, temperature probe, cable 10 m
Temperature range: -80 to 200°C
code
SN113E
Pt1000TG7/E, temperature probe
Temperature range: -50 to 200°C
code
SN164E
Pt1000TG7/E, temperature probe, cable 2 m
Temperature range: -50 to 200°C
code
SN165E
Pt1000TG7/E, temperature probe, cable 5 m
Temperature range: -50 to 200°C
code
SN166E
Pt1000TG7/E, temperature probe, cable 10 m
Temperature range: -50 to 200°C
code
SN167E
2301-220/E, temperature probe, cable 1 m
Temperature range: -30 to 220°C
code
SN168E
2021-150/E, temperature probe, cable 1 m
Temperature range: -30 to 150°C
code
SN169E
PTS350A-2/0, temperature probe, cable 2 m
Temperature range: -30 to 130°C
code
SN170E
Ambient temperature probe, 200-80/E
Temperature range: -30 to 80°C
code
SN171
2034-220/E, temperature probe, cable 1 m
Temperature range: -30 to 150°C
code
SN175E
2061-200/E, temperature probe, cable 1 m
Temperature range: -50 to 200°C
code
SN178E
2061-200/E, temperature probe, cable 2 m
Temperature range: -50 to 200°C
code
SN179E
2061-200/E, temperature probe, cable 5 m
Temperature range: -50 to 200°C
code
SN180E
2061-200/E, temperature probe, cable 10 m
Temperature range: -50 to 200°C
code
SN181E
PTS350A-5/E, temperature probe, cable 5 m
Temperature range: -30 to 130°C
code
SN182E
PTS350A-10/E, temperature probe, cable 10 m
Temperature range: -30 to 130°C
code
SN183E
Pt1000TGL40/E, temperature probe, cable 1 m
Temperature range: -30 to 80°C
code
SN185E
Pt1000TGL40/E, temperature probe, cable 2 m
Temperature range: -30 to 80°C
code
SN186E
Pt1000TGL40/E, temperature probe, cable 5 m
Temperature range: -30 to 80°C
code
SN187E
Pt1000TGL40/E, temperature probe, cable 10 m
Temperature range: -30 to 80°C
code
SN188E
Pt1000TR160/E, temperature probe, cable 1 m
Temperature range: -30 to 80°C
code
SN199E
Pt1000TR160/E, temperature probe, cable 2 m
Temperature range: -30 to 80°C
code
SN200E
Pt1000TR160/E, temperature probe, cable 5 m
Temperature range: -30 to 80°C
code
SN201E
Pt1000TR160/E, temperature probe, cable 10 m
Temperature range: -30 to 80°C
code
SN202E
Pt1000TR160/E, temperature probe, cable 15 m
Temperature range: -30 to 80°C
code
SN203E
Pt1000TR160/E, temperature probe, cable 20 m
Temperature range: -30 to 80°C
code
SN204E
2091-250/E, Stick-in probe, cable 1 m
Temperature range: -50 to 250°C
code
SN210E
2091-250/E, Stick-in probe, cable 2 m
Temperature range: -50 to 250°C
code
SN211E
2091-250/E, Stick-in probe, cable 5 m
Temperature range: -50 to 250°C
code
SN212E
2091-250/E, Stick-in probe, cable 10 m
Temperature range: -50 to 250°C
code
SN213E
Pt1000TG68/E, temperature probe, cable 2 m
Temperature range: -50 to 200°C
code
SN232E
Pt1000TG68/E, temperature probe, cable 5 m
Temperature range: -50 to 200°C
code
SN233E
Pt1000TG68/E, temperature probe, cable 10 m
Temperature range: -50 to 200°C
code
SN234E
Pt1000TR125/E, cryogenic temperature probe, cable 1 m
Temperature range: -190 to 150°C
code
SN239E
Pt1000TR125/E, cryogenic temperature probe, cable 2 m
Temperature range: -190 to 150°C
code
SN240E
Pt1000TR125/E, cryogenic temperature probe, cable 5 m
Temperature range: -190 to 150°C
code
SN241E
Pt1000TR125/E, cryogenic temperature probe, cable 10 m
Temperature range: -190 to 150°C
code
SN242E
Pt1000TR050S/E, temperature probe, cable 1 m
Temperature range: -50 to 400°C
Discontinued
Pt1000TR050S/E, temperature probe, cable 2 m
Temperature range: -50 to 400°C
Discontinued
Pt1000TR050S/E, temperature probe, cable 5 m
Temperature range: -50 to 400°C
Discontinued
Ultra thin temperature probe Pt1000TG3/E, ELKA connector
Temperature range: -50 to 200°C
code
SN252E
Temperature probe Pt1000TR050S/E, ELKA connector, cable 10 meters
Temperature range: -50 to 400°C
Discontinued
Temperature probe Pt1000TG8Ex/E, ELKA connector, for ATEX zone II
Temperature range: -30 to 180°C
code
SN263E
Temperature probe Pt1000TG8Ex/E, ELKA connector, for ATEX zone II, cable 2 meters
Temperature range: -30 to 180°C
code
SN264E
Temperature probe Pt1000TG8Ex/E, ELKA connector, for ATEX zone II, cable 5 meters
Temperature range: -30 to 180°C
code
SN265E
Temperature probe Pt1000TG8Ex/E, ELKA connector, for ATEX zone II, cable 10 meters
Temperature range: -30 to 180°C
code
SN266E
Temperature probe Pt1000TG8Ex/E, ELKA connector, for ATEX zone II, cable 15 meters
Temperature range: -30 to 180°C
code
SN267E
Temperature probe Pt1000TR050M/E, ELKA connector, cable 1 meter
Temperature range: -50 to 400°C
code
SN270E
Pt1000TR050M/E, temperature probe, cable 2 m
Temperature range: -50 to 400°C
code
SN271E
Temperature probe Pt1000TR050M/E, ELKA connector, cable 5 meters
Temperature range: -50 to 400°C
code
SN272E
Temperature probe Pt1000TR050M/E, ELKA connector, cable 10 meters
Temperature range: -50 to 400°C
code
SN273E
Lithium battery 3,6V/AA
code
A4203
Lithium battery 3,6V/C
code
A4206
Adapter for external supply of IoT sensor with radio output to Sigfox network
code
SP014
Holder for 3.6 V lithium battery
code
SP015
Holder for 3.6 V lithium battery with magnets
code
SP015M
Accredited temperature calibration
code
SLU001
Sigfox Access Station Micro
code
SMBS-T4
cable for transmitter adjustment via USB port
code
SP003
Holder for Sigfox sensors
code
SP017
Holder for mounting the COMET Transmitter on magnetic surfaces
code
SP102
COMET Cloud
code
cloud
code
cloud_app

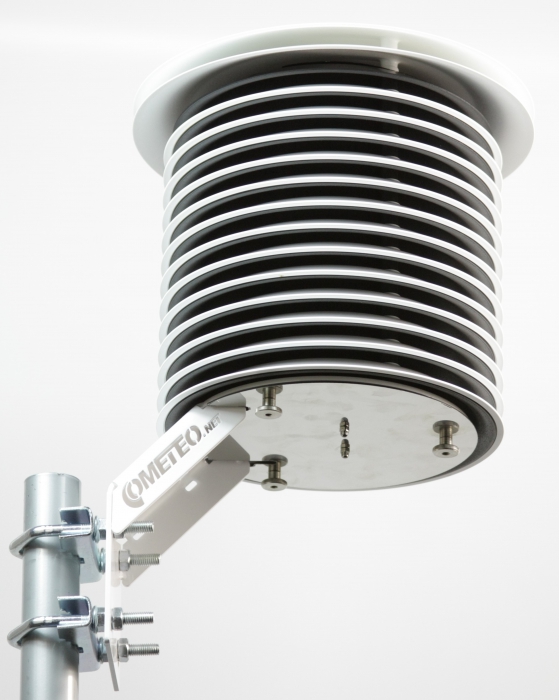

COMETEO Professional Multi-Plate Radiation Shield for Weather Sensors
