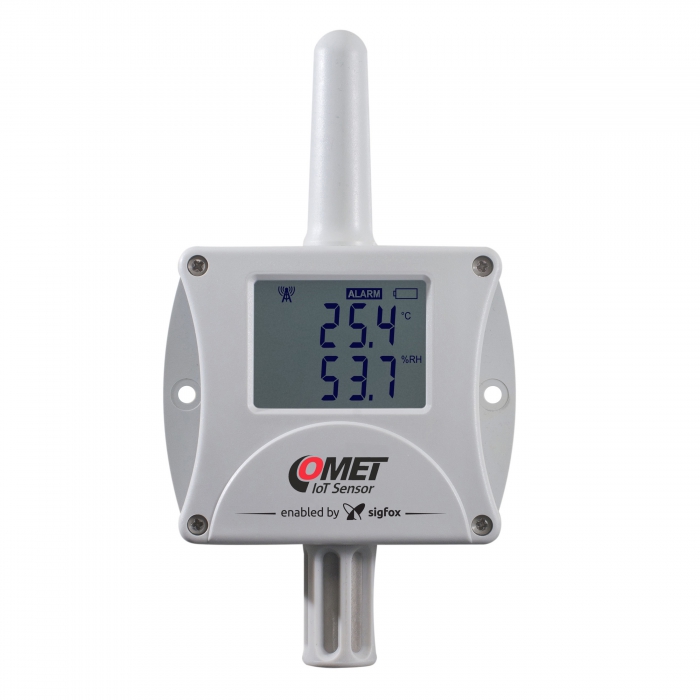

Wireless thermometer, hygrometer, Sigfox IoT

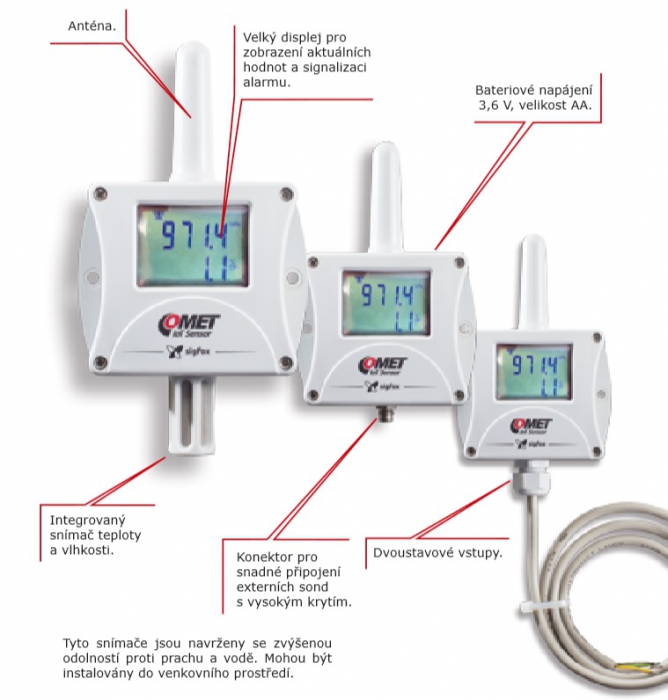

The wireless sensor measures temperature and humidity from the built-in internal sensor. It features a simple, compact design and is positioned directly in the measured area.

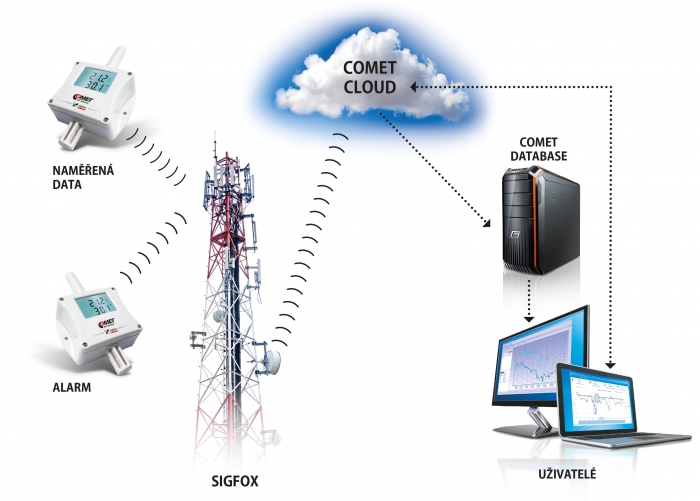

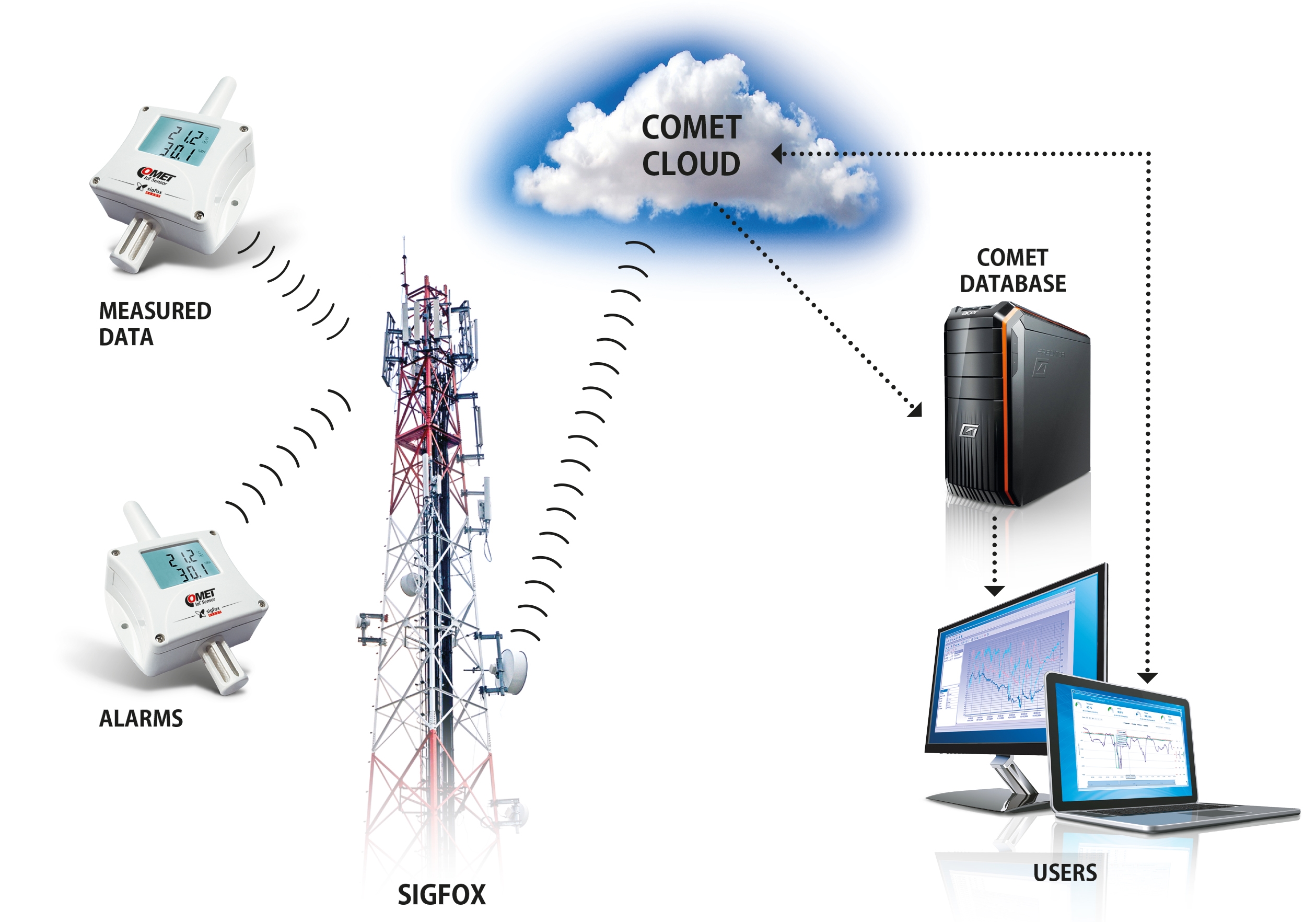

Measured values are displayed on the display and are regularly sent, in an adjustable time interval from 10 min to 24 h, by radio transmission in Sigfox to COMET Cloud. After the emergence of a new alarm (or the extinction of an alarm in progress), an extraordinary alarm message is sent at the latest within 10 minutes.

The device includes Traceable calibration certificate with declared metrological traceability of etalons is based on requirements of EN ISO/IEC 17025 standard.

Radio configuration zone RC1. More information about Sigfox Radio Configurations (RC).
Check the Sigfox coverage in your region.

code

W3810
Warranty

3 years

Add to quote

Technical data

Measured value

Temperature

Relative humidity

Counted values (dew point…)

TEMPERATURE SENSOR

Measuring range -30 to +60 °C

Accuracy ±0.4 °C

Resolution 0.1 °C

Response time t90 of temperature measurement (temperature step 20°C, air flow approximately 1m/s) 10 minutes

HUMIDITY SENSOR

Measuring range 0 to 100 % RH

Accuracy ±1.8 % RH from 0 to 90 % at 23 °C

Resolution 0.1% RH

DEW POINT

Measuring range -60 to +60 °C

Accuracy ±1.5 °C at ambient temperature T <25 °C and RH >30 %

Resolution 0.1 °C

GENERAL TECHNICAL DATA

Operating temperature -30 to +60 °C

Channels internal temperature and humidity sensor

Message transmission interval adjustable 10 minutes, 20 minutes, 30 minutes,1 hour, 3 hours, 6 hours, 12 hours, 24 hours

Alarm message sending interval 10 minutes

Operating frequency 868 MHz

Maximum transmission power 25mW

Sigfox radiation class 0U

Radio configuration zone RC1 (operation is possible in Europe, Iran, Oman and South Africa)

Typical range of transmitter 50 km in the field, 3 km in the city

Power Lithium battery 3.6 V, AA size

Protection class IP65 electronics, IP40 sensors

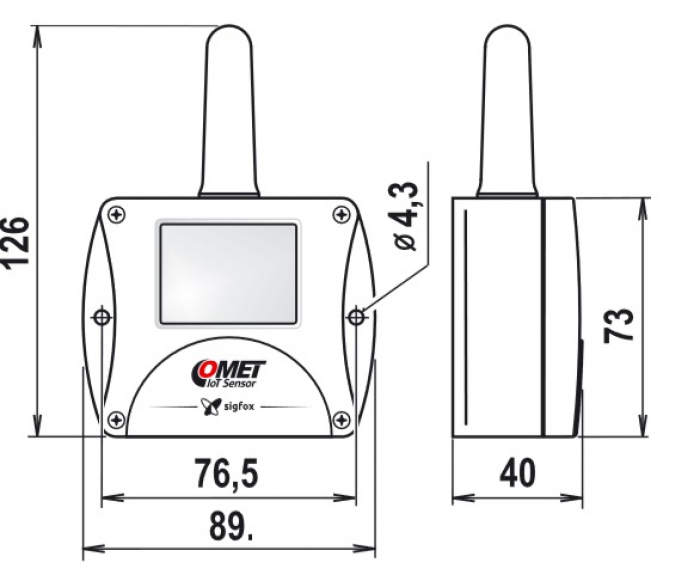

Dimensions 126 x 89 x 40mm

Weight (including batteries) 150g

Warranty 3 years

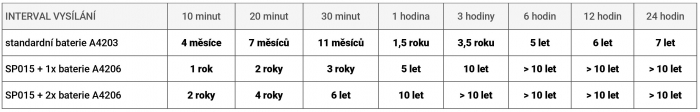

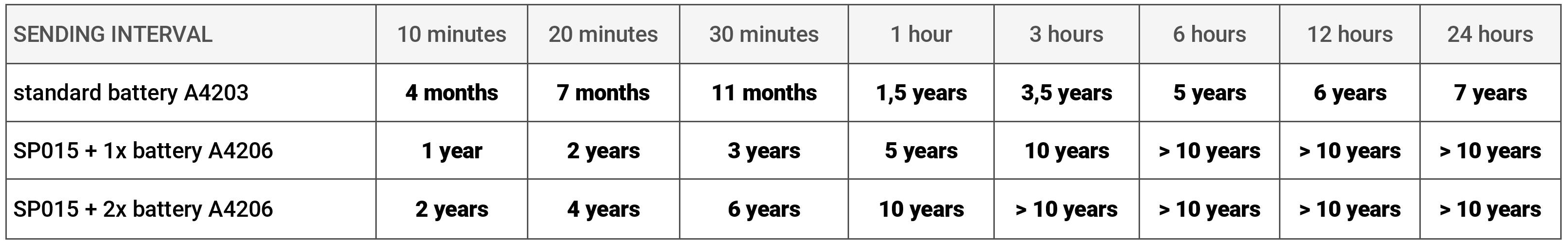

Battery lifetime

Sending interval	10 minutes	20 minutes	30 minutes	1 hour	3 hours	6 hours	12 hours	24 hours
lithium battery A4203 - 2200mAh	4 months	7 months	11 months	1,5 years	3,5 years	5 years	6 years	7 years
battery holder (SP015) + 1x lithium battery A4206 - 8500mAh	1 year	2 years	3 years	5 years	10 years	> 10 years	> 10 years	> 10 years
battery holder (SP015) + 2x lithium battery A4206 - 8500mAh	2 years	4 years	6 years	10 years	> 10 years	> 10 years	> 10 years	> 10 years

Download

Features

Applications:

Healtcare and laboratories - Monitoring of storage areas at temperatures up to -200 °C.

Industry and production - monitoring temperature and humidity in food, pharmaceutical, aerospace etc.

Production facilities and warehouses - Monitoring of storage conditions and production processes in the temperature range -200 ° C to + 600 ° C. Sending data to COMET Database or SCADA third-party systems.

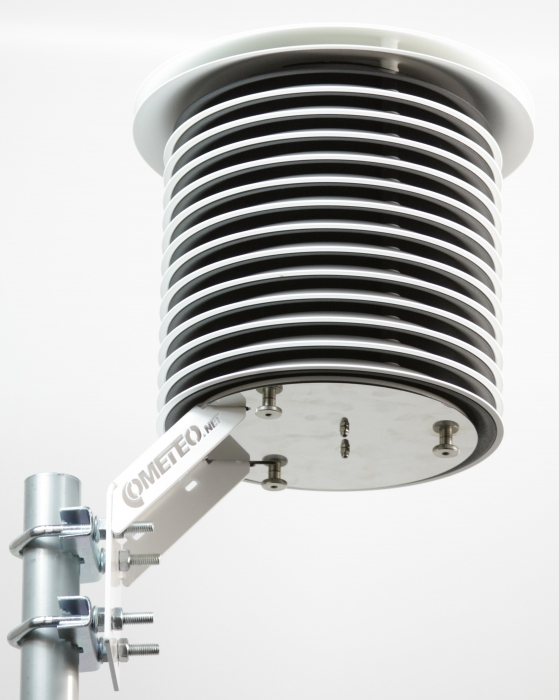

Metrology - COMET sensors together with COMET radiationshields are the ideal basis for weather stations for long-term weather, climate and air monitoring.

Data centers, server rooms - Temperature and humidity monitoring, data center monitoring, RACK stands, including flood status reports, opening / closing of doors (windows), motion, smoke. SNMP monitoring, remote alarms by email and Syslog.

Building management - Our instruments which measure temperature, humidity, atmospheric pressure and CO2 are an integral part of these industry-leading solutions.

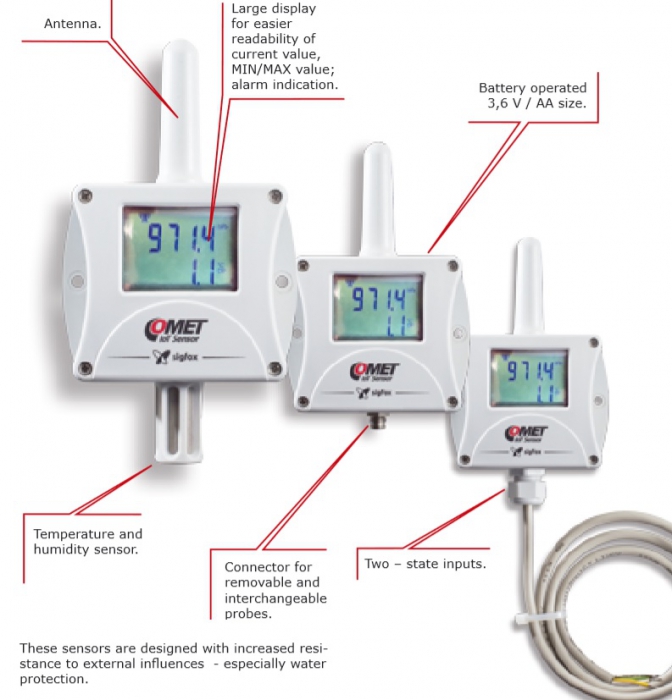

Features description:

* the features may vary depending on the device type

● accurate measurement of temperature, relative humidity, dew-point, barometric pressure, two-state events
● cheap wireless communication for long distances
● indication of alarms via SMS and e-mail

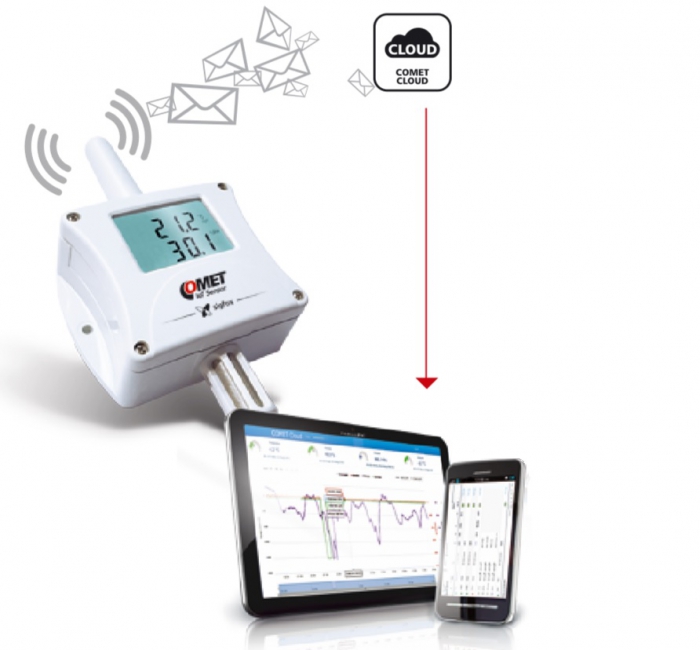

● COMET Cloud software for data analysis and storage

● easy to use software COMET Database for data analysis on PC
● rugged design
● long battery life up to 8 years
