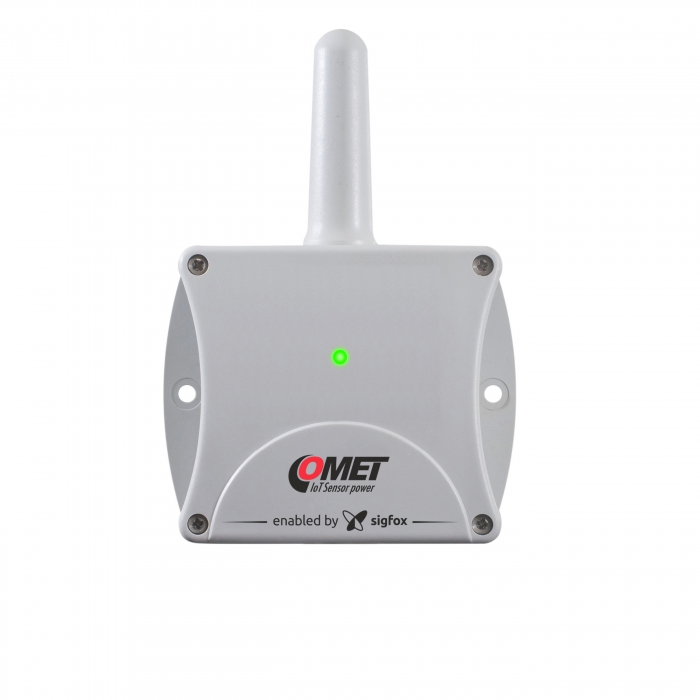

Wireless thermometer with built-in sensor, IoT Sigfox

The device measures the temperature from the built-in sensor with the possibility of installation directly into the measured space thanks to IP65 protection.

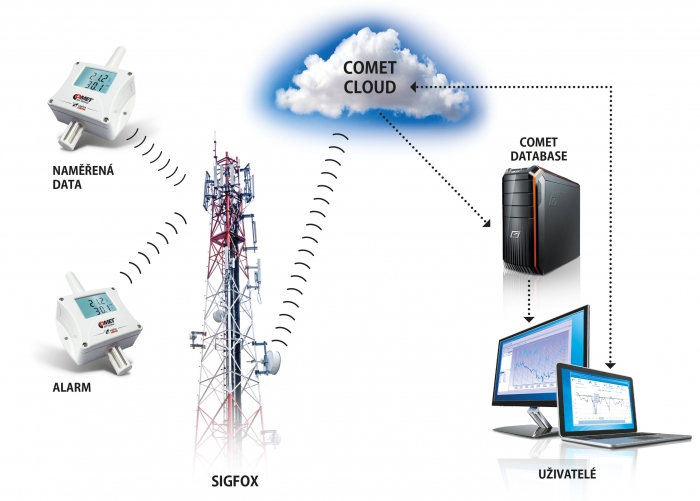

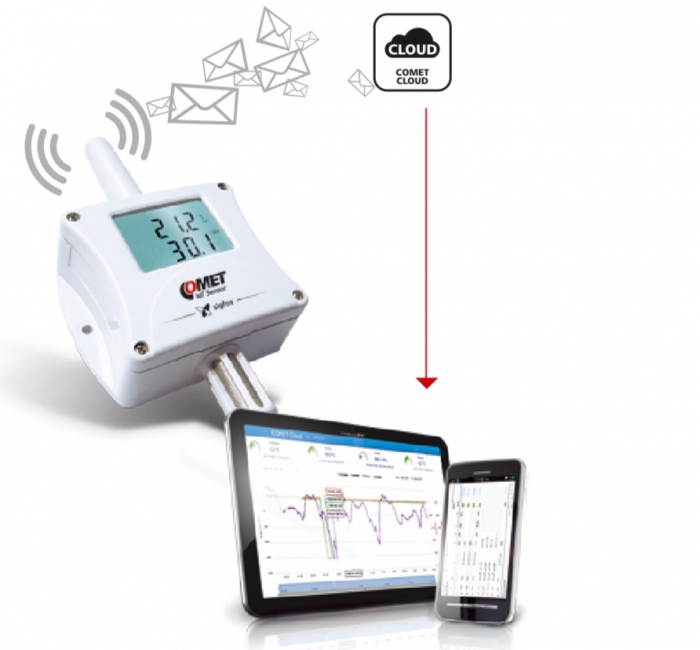

The measured values are sent in an adjustable time interval (10 min to 24 h) by radio transmission in the Sigfox network to the COMET Cloud, from which the user can view them using a personal computer or mobile device.

The instrument can monitor up to 2 alarm limits of the measured variable. Exceeding these limits is indicated by sending an emergency message. COMET Cloud transmits this alarm message via e-mail to the selected user. The device is suitable for applications that tolerate the delay of information delivered by Sigfox (max. 10 min).

Highlights:

  • wireless transmission of measured values and alarm states
  • battery power (battery life 1 year to 10 years)
  • LED indication of device status
  • remote setting of the device from COMET Cloud (maximum once a day)
  • IP65
  • traceable calibration certificate in accordance with EN ISO / IEC 17025

The availability of Sigfox network in a particular location

Check your Sigfox network availability before you buy your device. COMET devices in the Sigfox network can be used anywhere in the RC1 zone. Learn more about Sigfox (RC) Radio Zones.

  • code
    W0810P
  • Warranty
    3 years

Technical data

Measured value

Temperature

TEMPERATURE SENSOR

Measuring range -30 to +60 °C
Accuracy ±0.4 °C
Resolution 0.1 °C
Response time t90 of temperature measurement (temperature step 20°C, air flow approximately 1m/s) 10 minutes

GENERAL TECHNICAL DATA

Operating temperature -30 to +60 °C
Channels internal temperature sensor
Message transmission interval adjustable 10 minutes, 20 minutes, 30 minutes,1 hour, 3 hours, 6 hours, 12 hours, 24 hours
Alarm message sending interval 10 minutes
Operating frequency 868 MHz
Maximum transmission power 25mW
Sigfox radiation class 0U
Radio configuration zone RC1
Typical range of transmitter 50 km in the field, 3 km in the city
Power Lithium battery 3.6 V, C size
Protection class IP65
Dimensions 126 x 89 x 40mm
Weight (including batteries) 185g
Warranty 3 years

Battery lifetime

Sending interval 10 minutes 20 minutes 30 minutes 1 hour 3 hours 6 hours 12 hours 24 hours
1x lithium battery A4206 - 8500mAh 1 year 2 years 3 years 6 years 10 years > 10 years > 10 years > 10 years

Optional accessories and download

Lithium battery 3,6V/C

Lithium battery 3,6V/C

code A4206

Accredited temperature calibration

Accredited temperature calibration

code SLU001

Sigfox Access Station Micro

Sigfox Access Station Micro

code SMBS-T4
cable for transmitter adjustment via USB port

cable for transmitter adjustment via USB port

code SP003

Holder for Sigfox sensors

Holder for Sigfox sensors

code SP017
Holder for mounting the COMET Transmitter on magnetic surfaces

Holder for mounting the COMET Transmitter on magnetic surfaces

code SP102

COMET Cloud

COMET Cloud

code cloud

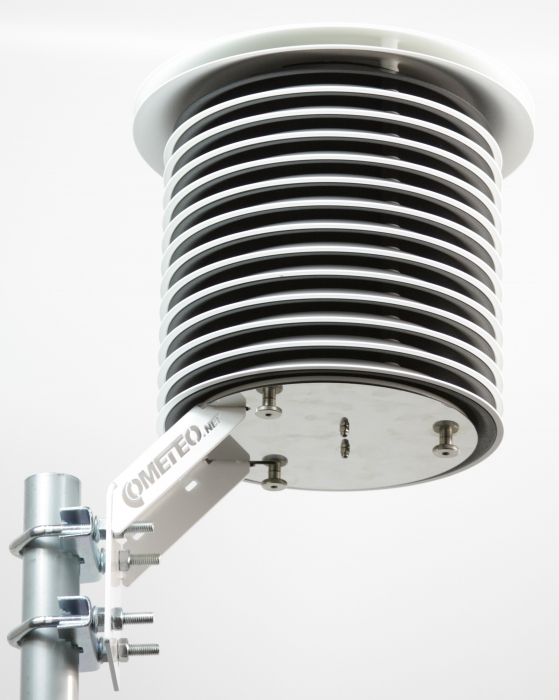

COMETEO Professional Multi-Plate Radiation Shield for Weather Sensors

COMETEO Professional Multi-Plate Radiation Shield for Weather Sensors

code F8000

Software

download-icon Comet Vision Software (2.3.8935.24346 dbapi 21.1)
16.56 MB
download-icon Conversions - application for recalculation of values
694.50 KB
download-icon COMET Cloud Lite - Android (Google Play)
download-icon COMET Cloud Lite - iOS (App Store)

Others

download-icon Terms and Conditions COMET System s.r.o.
133.12 KB

Manuals

download-icon Instruction Manual
1.68 MB
download-icon Quick Start Manual
636.95 KB
download-icon Safety Information
176.28 KB
download-icon Declaration of Conformity
104.39 KB

Catalogs

download-icon CATALOG - IoT Sensors powered by Sigfox
3.14 MB
download-icon Catalogue Sheets - COMET Sigfox Sensors
1.30 MB
