Temperature recorder with printer for semi-trailer
Complete solution for temperature record during the transport.
The device includes Traceable calibration certificate with declared metrological traceability of etalons is based on requirements of EN ISO/IEC 17025 standard.

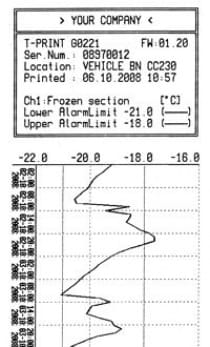

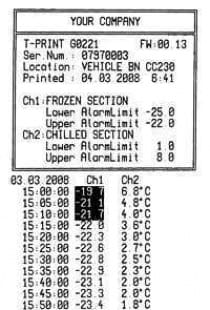

- print-out of temperature record during transport of food, pharmaceuticals, flowers, live animals and other goods
- designed specifically for external installation on semi-trailers
- easy installation
-
codeG0841
-
Warranty3 years
Technical data
Measured value
Temperature
Two-state signal
TEMPERATURE SENSOR - external probe Pt1000
Measuring range
-90 to +260 °C
Accuracy
±0.2 °C
Resolution
0.1 °C
GENERAL TECHNICAL DATA
Operating temperature
-30 to +65 °C
Channels
2x external temperature probe, 2x binary input
Memory
1MB (approx. 170 000 hodnot)
Recording interval
adjustable from 60 seconds to 60 minutes
Display and alarm refresh
each 10 s
Recording mode
cyclic - after filling memory oldest data is overwritten by new
Real time clock
year, leap year, month, day, hour, minute, second
Power
9 to 32 V dc, protected against alternator load shedding + internal Lithium battery
Consumption while printing/not printing
approx. 8 W/approx. 0,1 W
Protection class
IP65
Dimensions
250 x 242 x 110 mm
Weight
approx. 1650 g
Warranty
3 years
Features
Applications:
Healtcare and laboratories - Monitoring of storage areas at temperatures up to -200 ° C.
Food industry - Monitoring of critical processes according to the HACCP standard with the possibility of prompt notification of unforeseen events that could lead to the degradation of the goods.
Goods transport - Complete temperature monitoring during transport of pharmaceuticals, foodstuffs, flowers, ...
Features description:
* the features may vary depending on the device type● 2 hardware inputs for measuring of temperature and two-state events
● memory for half million values
● indication of alarm conditions via - SMS and integrated acoustic siren LEDs
● analytical software for data processing and configuration
● communication interfaces - USB, GPRS modem
● memory for half million values
● indication of alarm conditions via - SMS and integrated acoustic siren LEDs
● analytical software for data processing and configuration
● communication interfaces - USB, GPRS modem
Optional accessories and download
Pt1000TG8/0, temperature probe
Temperature range: -80 to 200°C
code
SN104
Pt1000TG8/0, temperature probe, cable 2 m
Temperature range: -80 to 200°C
code
SN105
Pt1000TG8/0, temperature probe, cable 5 m
Temperature range: -80 to 200°C
code
SN108
Pt1000TG8/0, temperature probe, cable 10 m
Temperature range: -80 to 200°C
code
SN113
2061-250/0 Temperature probe
Temperature range: -30 to 250°C
code
SN147
2061-250/0 2 m Temperature probe
Temperature range: -30 to 250°C
code
SN148
2061-250/0 5 m Temperature probe
Temperature range: -30 to 250°C
code
SN151
2061-250/0 10 m Temperature probe
Temperature range: -30 to 250°C
code
SN156
Pt1000TG7/0, temperature probe
Temperature range: -50 to 200°C
code
SN164
Pt1000TG7/0, temperature probe, cable 2 m
Temperature range: -50 to 200°C
code
SN165
Pt1000TG7/0, temperature probe, cable 5 m
Temperature range: -50 to 200°C
code
SN166
Pt1000TG7/0, temperature probe, cable 10 m
Temperature range: -50 to 200°C
code
SN167
2301-220/0, temperature probe, cable 1 m
Temperature range: -30 to 220°C
code
SN168
2021-150/0, temperature probe, cable 1 m
Temperature range: -30 to 150°C
code
SN169
PTS350A-2/0, temperature probe, cable 2 m
Temperature range: -30 to 130°C
code
SN170
2034-220/0, temperature probe, cable 1 m
Temperature range: -30 to 150°C
code
SN175
2061-200/0, temperature probe, cable 1 m
Temperature range: -50 to 200°C
code
SN178
2061-200/0, temperature probe, cable 2 m
Temperature range: -50 to 200°C
code
SN179
2061-200/0, temperature probe, cable 5 m
Temperature range: -50 to 200°C
code
SN180
2061-200/0, temperature probe, cable 10 m
Temperature range: -50 to 200°C
code
SN181
PTS350A-5/0, temperature probe, cable 5 m
Temperature range: -30 to 130°C
code
SN182
PTS350A-10/0, temperature probe, cable 10 m
Temperature range: -30 to 130°C
code
SN183
Pt1000TGL40/0, temperature probe, cable 1 m
Temperature range: -30 to 80°C
code
SN185
Pt1000TGL40/0, temperature probe, cable 2 m
Temperature range: -30 to 80°C
code
SN186
Pt1000TGL40/0, temperature probe, cable 5 m
Temperature range: -30 to 80°C
code
SN187
Pt1000TGL40/0, temperature probe, cable 10 m
Temperature range: -30 to 80°C
code
SN188
Pt1000TR160/0, temperature probe, cable 1 m
Temperature range: -30 to 80°C
code
SN199
Pt1000TR160/0, temperature probe, cable 2 m
Temperature range: -30 to 80°C
code
SN200
Pt1000TR160/0, temperature probe, cable 5 m
Temperature range: -30 to 80°C
code
SN201
Pt1000TR160/0, temperature probe, cable 10 m
Temperature range: -30 to 80°C
code
SN202
Pt1000TR160/0, temperature probe, cable 15 m
Temperature range: -30 to 80°C
code
SN203
Pt1000TR160/0, temperature probe, cable 20 m
Temperature range: -30 to 80°C
code
SN204
PTS380K/0 temperature sensor with a stainless steel connection head and connector
Temperature range: -30 to 100°C
code
SN205
2091-250/0, Stick-in probe, cable 1 m
Temperature range: -50 to 250°C
code
SN210
2091-250/0, Stick-in probe, cable 2 m
Temperature range: -50 to 250°C
code
SN211
2091-250/0, Stick-in probe, cable 5 m
Temperature range: -50 to 250°C
code
SN212
2091-250/0, Stick-in probe, cable 10 m
Temperature range: -50 to 250°C
code
SN213
2071-030/0, special probe with CINCH connector
Temperature range: -30 to 80°C
code
SN214
Pt1000TG68/0, temperature probe, cable 2 m
Temperature range: -50 to 200°C
code
SN232
Pt1000TG68/0, temperature probe, cable 5 m
Temperature range: -50 to 200°C
code
SN233
Pt1000TG68/0, temperature probe, cable 10 m
Temperature range: -50 to 200°C
code
SN234
Pt1000TR125/0, temperature probe, cable 1 m
Temperature range: -190 to 150°C
code
SN239
Pt1000TR125/0, temperature probe, cable 2 m
Temperature range: -190 to 150°C
code
SN240
Pt1000TR125/0, temperature probe, cable 5 m
Temperature range: -190 to 150°C
code
SN241
Pt1000TR125/0, cryogenic temperature probe, cable 10 m
Temperature range: -190 to 150°C
code
SN242
Pt1000TR050S/0, temperature probe, cable 1 m
Temperature range: -50 to 400°C
Discontinued
Pt1000TR050S/0, temperature probe, cable 2 m
Temperature range: -50 to 400°C
Discontinued
Pt1000TR050S/0, temperature probe, cable 5 m
Temperature range: -50 to 400°C
Discontinued
Ultra thin temperature probe Pt1000TG3/0, without connector
Temperature range: -50 to 200°C
code
SN252
Ultra thin temperature probe Pt1000TG3/0, without connector, cable 2 meters
Temperature range: -50 to 200°C
code
SN254
Ultra thin temperature probe Pt1000TG3/0, without connector, cable 5 meters
Temperature range: -50 to 200°C
code
SN255
Ultra thin temperature probe Pt1000TG3/0, without connector, cable 10 meters
Temperature range: -50 to 200°C
code
SN256
Temperature probe Pt1000TR050S/0, without connector, cable 10 meters
Temperature range: -50 to 400°C
Discontinued
Ambient temperature probe, 201-80/C
Temperature range: -30 to 80°C
code
SN258
Pt1000TR050M/0, temperature probe, cable 1 m
Temperature range: -50 to 400°C
code
SN270
Pt1000TR050M/0, temperature probe, cable 2 m
Temperature range: -50 to 400°C
code
SN271
Pt1000TR050M/0, temperature probe, cable 5 m
Temperature range: -50 to 400°C
code
SN272
Pt1000TR050M/0, temperature probe, cable 10 m
Temperature range: -50 to 400°C
code
SN273
AC/DC adapter 230Vac to 24Vdc/1A, switch-mode, EU
code
A1940eu
AC/DC adapter 230Vac to 24Vdc/1A, switch-mode, UK
code
A1940uk
AC/DC adapter 230Vac to 24Vdc/1A, switch-mode, US
code
A1940us
Accredited temperature calibration
code
SLU001
COMET Database
code
CDB
Software for COMET TPrints and GSM modems
code
SWR001
Magnetic door contact SA-200-A
code
SA200A
Magnetic door contact with cable length 10m
code
SA200A-10
Magnetic door contact with cable length 15m
code
SA200A-15
Magnetic door contact with cable length 2m
code
SA200A-2
Magnetic door contact with cable length 20m
code
SA200A-20
Magnetic door contact with cable length 30m
code
SA200A-30
Magnetic door contact with cable length 5m
code
SA200A-5
Spare roll of thermopaper for Gxxxx temperature recorders
code
PR033
Mounting set for G0841
code
QTPR022
code
BM512
code
PPO001
Software
SWR001 (Logger 4.1.12.0 dbapi 21.1)
Conversions - application for recalculation of values
Others
Terms and Conditions COMET System s.r.o.
Manuals
Instruction Manual
Declaration of Conformity
Catalogs
CATALOG - Dataloggers
CATALOG - Solution for temperature record during transport
