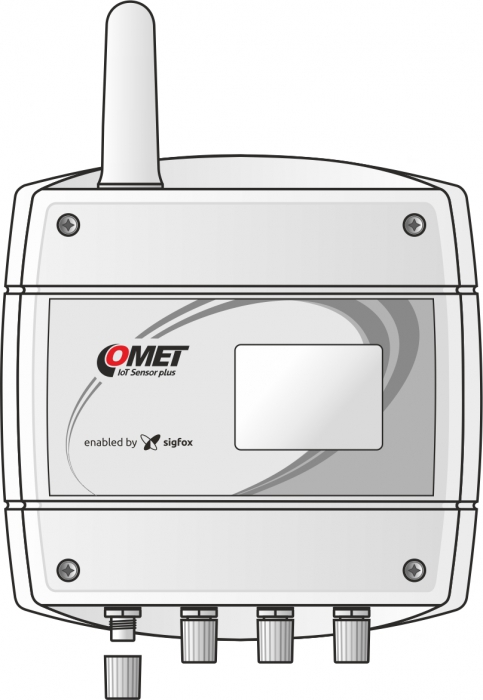

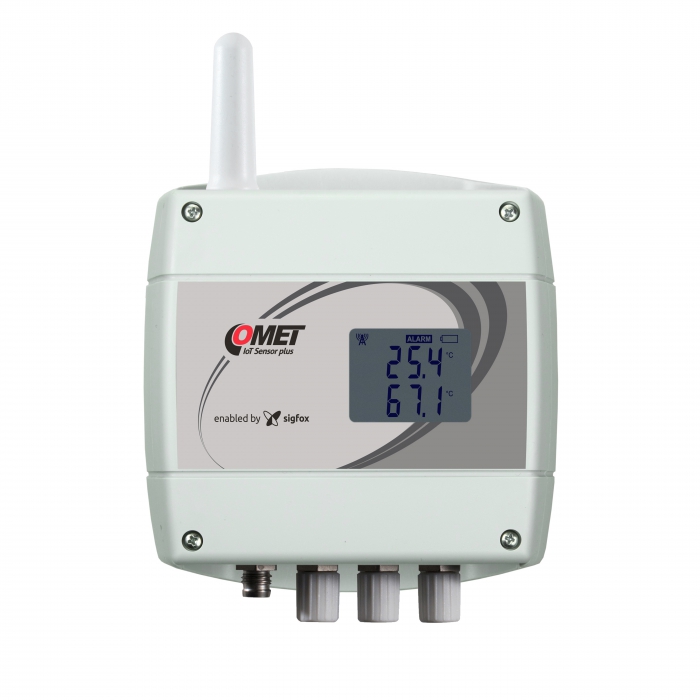

IoT Wireless Temperature Sensor for 4 external Pt1000 probes with ELKA connector, powered by Sigfox

IoT Wireless Temperature Sensor for 4 external Pt1000 probes with ELKA connector, powered by Sigfox
IoT Wireless Temperature Sensor for 4 external Pt1000 probes with ELKA connector, powered by Sigfox
IoT Wireless Temperature Sensor for 4 external Pt1000 probes with ELKA connector, powered by Sigfox
IoT Wireless Temperature Sensor for 4 external Pt1000 probes with ELKA connector, powered by Sigfox
IoT Wireless Temperature Sensor for 4 external Pt1000 probes with ELKA connector, powered by Sigfox
IoT Wireless Temperature Sensor for 4 external Pt1000 probes with ELKA connector, powered by Sigfox
IoT Wireless Temperature Sensor for 4 external Pt1000 probes with ELKA connector, powered by Sigfox
IoT Wireless Temperature Sensor for 4 external Pt1000 probes with ELKA connector, powered by Sigfox
IoT Wireless Temperature Sensor for 4 external Pt1000 probes with ELKA connector, powered by Sigfox
IoT Wireless Temperature Sensor for 4 external Pt1000 probes with ELKA connector, powered by Sigfox
IoT Wireless Temperature Sensor for 4 external Pt1000 probes with ELKA connector, powered by Sigfox
IoT Wireless Temperature Sensor for 4 external Pt1000 probes with ELKA connector, powered by Sigfox
IoT Wireless Temperature Sensor for 4 external Pt1000 probes with ELKA connector, powered by Sigfox
IoT Wireless Temperature Sensor for 4 external Pt1000 probes with ELKA connector, powered by Sigfox
IoT Wireless Temperature Sensor for 4 external Pt1000 probes with ELKA connector, powered by Sigfox
IoT Wireless Temperature Sensor for 4 external Pt1000 probes with ELKA connector, powered by Sigfox
IoT Wireless Temperature Sensor for 4 external Pt1000 probes with ELKA connector, powered by Sigfox
IoT Wireless Temperature Sensor for 4 external Pt1000 probes with ELKA connector, powered by Sigfox
IoT Wireless Temperature Sensor for 4 external Pt1000 probes with ELKA connector, powered by Sigfox
IoT Wireless Temperature Sensor for 4 external Pt1000 probes with ELKA connector, powered by Sigfox

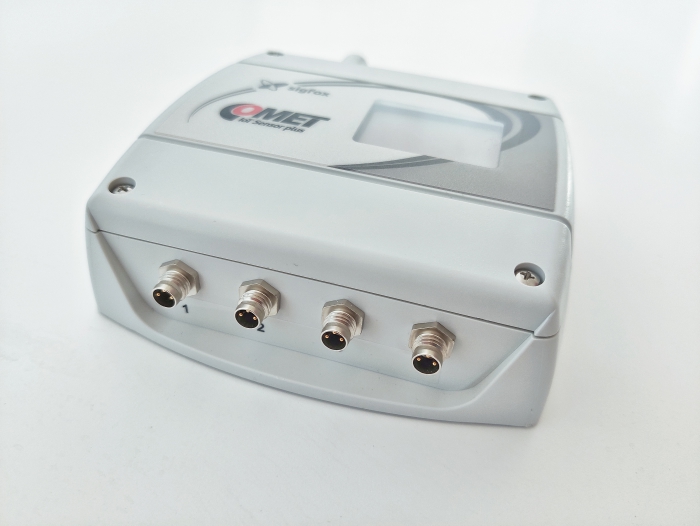

The device measures the temperature from four external Pt1000 probe on the cable with ELKA connector, which guarantees high protection IP 65 - you can choose them from an optional accessory.

The measured values are sent in an adjustable time interval (10 min to 24 h) by radio transmission in the Sigfox network to the COMET Cloud, from which the user can view them using a personal computer or mobile device.

The instrument can monitor up to 2 alarm limits for each measured temperature channel. Exceeding these limits is indicated by sending an emergency message. COMET Cloud transmits this alarm message via e-mail to the selected user. The device is suitable for applications that tolerate the delay of information delivered by Sigfox (max. 10 min).

Highlights:

  • wireless transmission of measured values and alarm states
  • temperature measurement in up to four places for the price of one subcription
  • battery power (C size 3.6 V)with low battery indication (battery life up to 10 years)

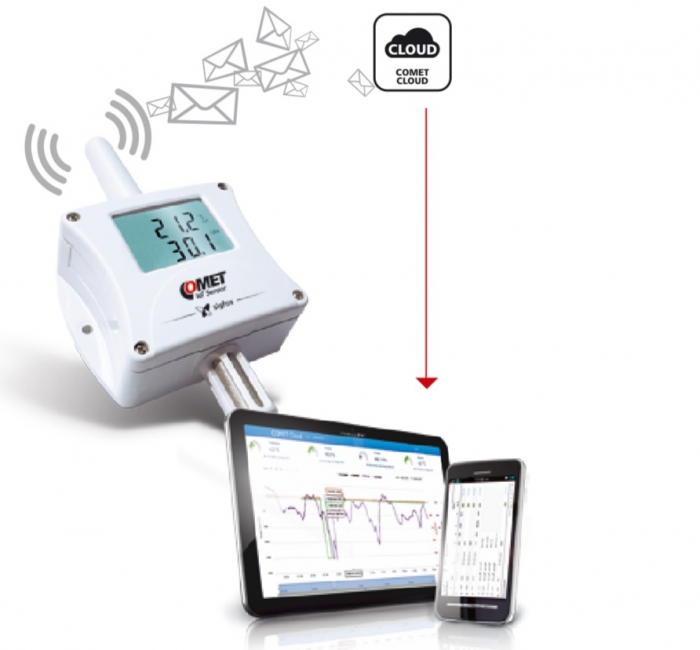

  • remote setting of the device from COMET Cloud (maximum once a day)
  • IP65 for usage of device on outside applications
  • Traceable calibration certificate in accordance with EN ISO / IEC 17025

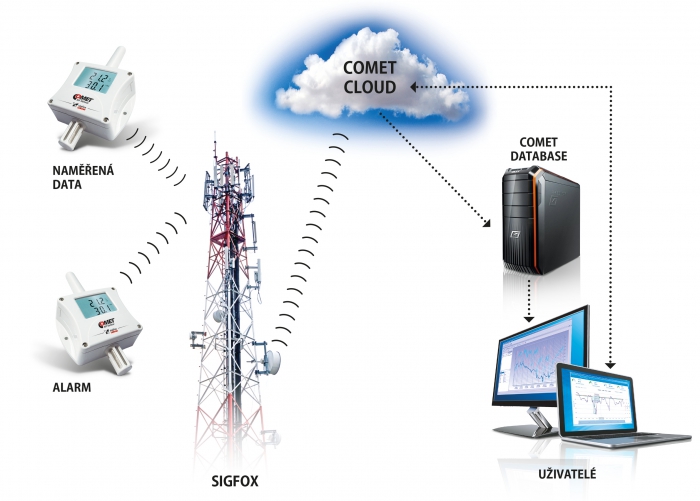

The availability of Sigfox network in a particular location:

Check your Sigfox network availability before you buy your device. COMET devices in the Sigfox network can be used anywhere in the RC1 zone. Learn more about Sigfox (RC) Radio Zones.

  • code
    W0841
  • Warranty
    3 years
Add to quote

Technical data

Measured value

Temperature

TEMPERATURE SENSOR - external probe Pt1000

Measuring range -200 to +260 °C
Accuracy ±0.2 °C in the range -200 to +100 °C; ±0.2 % from reading from +100 to +260 °C
Resolution 0.1 °C
Response time t90 of temperature measurement (temperature step 20°C, air flow approximately 1m/s) 10 minutes

GENERAL TECHNICAL DATA

Operating temperature -30 to +60 °C
Channels 4x external temperature probe; ELKA connector
Message transmission interval adjustable 10 minuteses, 20 minutes, 30 minutes,1 hour, 3 hours, 6 hours, 12 hours, 24 hours
Operating frequency 868 MHz
Maximum transmission power 25mW
Sigfox radiation class 0U
Radio configuration zone RC1 (operation is possible in Europe, Iran, Oman and South Africa)
Typical range of transmitter 50 km in the field, 3 km in the city

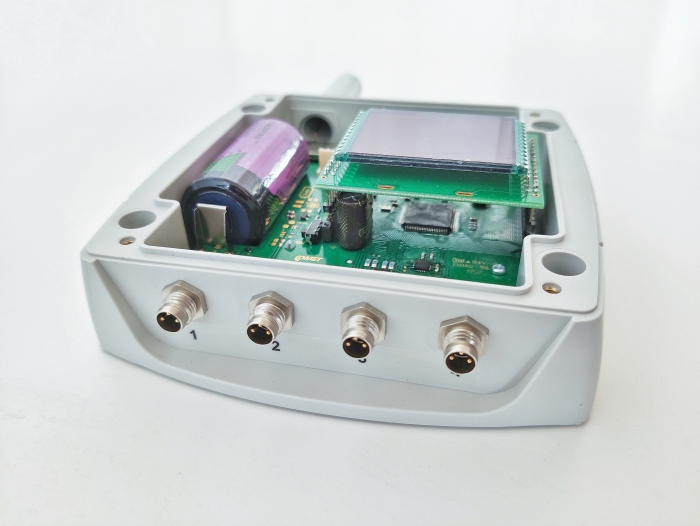

Power Lithium battery 3.6 V, C size, capacity 8.5 Ah
Number of battery slots 1
Protection class IP65
Dimensions 179 x 134 x 45 mm without connectors
Weight (including batteries) 350g
Warranty 3 years

Battery lifetime

Sending interval 10 minutes 20 minutes 30 minutes 1 hour 3 hours 6 hours 12 hours 24 hours
1x lithium battery A4206 - 8500mAh 1 year 2 years 3 years 5 years 10 years > 10 years > 10 years > 10 years

Optional accessories and download

Pt1000TG8/E, temperature probe

Pt1000TG8/E, temperature probe

Temperature range: -80 to 200°C
code SN104E
Pt1000TG8/E, temperature probe, cable 2 m

Pt1000TG8/E, temperature probe, cable 2 m

Temperature range: -80 to 200°C
code SN105E
Pt1000TG8/E, temperature probe, cable 5 m

Pt1000TG8/E, temperature probe, cable 5 m

Temperature range: -80 to 200°C
code SN108E
Pt1000TG8/E, temperature probe, cable 10 m

Pt1000TG8/E, temperature probe, cable 10 m

Temperature range: -80 to 200°C
code SN113E
Pt1000TG7/E, temperature probe

Pt1000TG7/E, temperature probe

Temperature range: -50 to 200°C
code SN164E
Pt1000TG7/E, temperature probe, cable 2 m

Pt1000TG7/E, temperature probe, cable 2 m

Temperature range: -50 to 200°C
code SN165E
Pt1000TG7/E, temperature probe, cable 5 m

Pt1000TG7/E, temperature probe, cable 5 m

Temperature range: -50 to 200°C
code SN166E
Pt1000TG7/E, temperature probe, cable 10 m

Pt1000TG7/E, temperature probe, cable 10 m

Temperature range: -50 to 200°C
code SN167E
2301-220/E, temperature probe, cable 1 m

2301-220/E, temperature probe, cable 1 m

Temperature range: -30 to 220°C
code SN168E
2021-150/E, temperature probe, cable 1 m

2021-150/E, temperature probe, cable 1 m

Temperature range: -30 to 150°C
code SN169E
PTS350A-2/0, temperature probe, cable 2 m

PTS350A-2/0, temperature probe, cable 2 m

Temperature range: -30 to 130°C
code SN170E
Ambient temperature probe, 200-80/E

Ambient temperature probe, 200-80/E

Temperature range: -30 to 80°C
code SN171
2034-220/E, temperature probe, cable 1 m

2034-220/E, temperature probe, cable 1 m

Temperature range: -30 to 150°C
code SN175E
2061-200/E, temperature probe, cable 1 m

2061-200/E, temperature probe, cable 1 m

Temperature range: -50 to 200°C
code SN178E
2061-200/E, temperature probe, cable 2 m

2061-200/E, temperature probe, cable 2 m

Temperature range: -50 to 200°C
code SN179E
2061-200/E, temperature probe, cable 5 m

2061-200/E, temperature probe, cable 5 m

Temperature range: -50 to 200°C
code SN180E
2061-200/E, temperature probe, cable 10 m

2061-200/E, temperature probe, cable 10 m

Temperature range: -50 to 200°C
code SN181E
PTS350A-5/E, temperature probe, cable 5 m

PTS350A-5/E, temperature probe, cable 5 m

Temperature range: -30 to 130°C
code SN182E
PTS350A-10/E, temperature probe, cable 10 m

PTS350A-10/E, temperature probe, cable 10 m

Temperature range: -30 to 130°C
code SN183E
Pt1000TGL40/E, temperature probe, cable 1 m

Pt1000TGL40/E, temperature probe, cable 1 m

Temperature range: -30 to 80°C
code SN185E
Pt1000TGL40/E, temperature probe, cable 2 m

Pt1000TGL40/E, temperature probe, cable 2 m

Temperature range: -30 to 80°C
code SN186E
Pt1000TGL40/E, temperature probe, cable 5 m

Pt1000TGL40/E, temperature probe, cable 5 m

Temperature range: -30 to 80°C
code SN187E
Pt1000TGL40/E, temperature probe, cable 10 m

Pt1000TGL40/E, temperature probe, cable 10 m

Temperature range: -30 to 80°C
code SN188E
Pt1000TR160/E, temperature probe, cable 1 m

Pt1000TR160/E, temperature probe, cable 1 m

Temperature range: -30 to 80°C
code SN199E
Pt1000TR160/E, temperature probe, cable 2 m

Pt1000TR160/E, temperature probe, cable 2 m

Temperature range: -30 to 80°C
code SN200E
Pt1000TR160/E, temperature probe, cable 5 m

Pt1000TR160/E, temperature probe, cable 5 m

Temperature range: -30 to 80°C
code SN201E
Pt1000TR160/E, temperature probe, cable 10 m

Pt1000TR160/E, temperature probe, cable 10 m

Temperature range: -30 to 80°C
code SN202E
Pt1000TR160/E, temperature probe, cable 15 m

Pt1000TR160/E, temperature probe, cable 15 m

Temperature range: -30 to 80°C
code SN203E
Pt1000TR160/E, temperature probe, cable 20 m

Pt1000TR160/E, temperature probe, cable 20 m

Temperature range: -30 to 80°C
code SN204E
2091-250/E, Stick-in probe, cable 1 m

2091-250/E, Stick-in probe, cable 1 m

Temperature range: -50 to 250°C
code SN210E
2091-250/E, Stick-in probe, cable 2 m

2091-250/E, Stick-in probe, cable 2 m

Temperature range: -50 to 250°C
code SN211E
2091-250/E, Stick-in probe, cable 5 m

2091-250/E, Stick-in probe, cable 5 m

Temperature range: -50 to 250°C
code SN212E
2091-250/E, Stick-in probe, cable 10 m

2091-250/E, Stick-in probe, cable 10 m

Temperature range: -50 to 250°C
code SN213E
Pt1000TG68/E, temperature probe, cable 2 m

Pt1000TG68/E, temperature probe, cable 2 m

Temperature range: -50 to 200°C
code SN232E
Pt1000TG68/E, temperature probe, cable 5 m

Pt1000TG68/E, temperature probe, cable 5 m

Temperature range: -50 to 200°C
code SN233E
Pt1000TG68/E, temperature probe, cable 10 m

Pt1000TG68/E, temperature probe, cable 10 m

Temperature range: -50 to 200°C
code SN234E
Pt1000TR125/E, cryogenic temperature probe, cable 1 m

Pt1000TR125/E, cryogenic temperature probe, cable 1 m

Temperature range: -190 to 150°C
code SN239E
Pt1000TR125/E, cryogenic temperature probe, cable 2 m

Pt1000TR125/E, cryogenic temperature probe, cable 2 m

Temperature range: -190 to 150°C
code SN240E
Pt1000TR125/E, cryogenic temperature probe, cable 5 m

Pt1000TR125/E, cryogenic temperature probe, cable 5 m

Temperature range: -190 to 150°C
code SN241E
Pt1000TR125/E, cryogenic temperature probe, cable 10 m

Pt1000TR125/E, cryogenic temperature probe, cable 10 m

Temperature range: -190 to 150°C
code SN242E
Pt1000TR050S/E, temperature probe, cable 1 m

Pt1000TR050S/E, temperature probe, cable 1 m

Temperature range: -50 to 400°C
Discontinued
Pt1000TR050S/E, temperature probe, cable 2 m

Pt1000TR050S/E, temperature probe, cable 2 m

Temperature range: -50 to 400°C
Discontinued
Pt1000TR050S/E, temperature probe, cable 5 m

Pt1000TR050S/E, temperature probe, cable 5 m

Temperature range: -50 to 400°C
Discontinued
Ultra thin temperature probe Pt1000TG3/E, ELKA connector

Ultra thin temperature probe Pt1000TG3/E, ELKA connector

Temperature range: -50 to 200°C
code SN252E
Temperature probe Pt1000TR050S/E, ELKA connector, cable 10 meters

Temperature probe Pt1000TR050S/E, ELKA connector, cable 10 meters

Temperature range: -50 to 400°C
Discontinued
Temperature probe Pt1000TG8Ex/E, ELKA connector, for ATEX zone II

Temperature probe Pt1000TG8Ex/E, ELKA connector, for ATEX zone II

Temperature range: -30 to 180°C
code SN263E
Temperature probe Pt1000TG8Ex/E, ELKA connector, for ATEX zone II, cable 2 meters

Temperature probe Pt1000TG8Ex/E, ELKA connector, for ATEX zone II, cable 2 meters

Temperature range: -30 to 180°C
code SN264E
Temperature probe Pt1000TG8Ex/E, ELKA connector, for ATEX zone II, cable 5 meters

Temperature probe Pt1000TG8Ex/E, ELKA connector, for ATEX zone II, cable 5 meters

Temperature range: -30 to 180°C
code SN265E
Temperature probe Pt1000TG8Ex/E, ELKA connector, for ATEX zone II, cable 10 meters

Temperature probe Pt1000TG8Ex/E, ELKA connector, for ATEX zone II, cable 10 meters

Temperature range: -30 to 180°C
code SN266E
Temperature probe Pt1000TG8Ex/E, ELKA connector, for ATEX zone II, cable 15 meters

Temperature probe Pt1000TG8Ex/E, ELKA connector, for ATEX zone II, cable 15 meters

Temperature range: -30 to 180°C
code SN267E
Temperature probe Pt1000TR050M/E, ELKA connector, cable 1 meter

Temperature probe Pt1000TR050M/E, ELKA connector, cable 1 meter

Temperature range: -50 to 400°C
code SN270E
Pt1000TR050M/E, temperature probe, cable 2 m

Pt1000TR050M/E, temperature probe, cable 2 m

Temperature range: -50 to 400°C
code SN271E
Temperature probe Pt1000TR050M/E, ELKA connector, cable 5 meters

Temperature probe Pt1000TR050M/E, ELKA connector, cable 5 meters

Temperature range: -50 to 400°C
code SN272E
Temperature probe Pt1000TR050M/E, ELKA connector, cable 10 meters

Temperature probe Pt1000TR050M/E, ELKA connector, cable 10 meters

Temperature range: -50 to 400°C
code SN273E

Lithium battery 3,6V/C

Lithium battery 3,6V/C

code A4206

Accredited temperature calibration

Accredited temperature calibration

code SLU001

Sigfox Access Station Micro

Sigfox Access Station Micro

code SMBS-T4
cable for transmitter adjustment via USB port

cable for transmitter adjustment via USB port

code SP003

Holder for mounting the COMET Transmitter on magnetic surfaces

Holder for mounting the COMET Transmitter on magnetic surfaces

code SP103

COMET Cloud

COMET Cloud

code cloud

code cloud_app

code BM512

code PPO001

Software

download-icon COMET Cloud Lite - Android (Google Play)
download-icon COMET Cloud Lite - iOS (App Store)

Others

download-icon Terms and Conditions COMET System s.r.o.
133.12 KB

Manuals

download-icon Instruction Manual
2.39 MB
download-icon Quick Start Manual
1.24 MB
download-icon Safety Information
176.28 KB
download-icon Declaration of Conformity
104.39 KB

Catalogs

download-icon CATALOG - IoT Sensors powered by Sigfox
3.14 MB
download-icon Catalogue Sheets - COMET Sigfox Sensors
1.30 MB

Related products

COMET Cloud

COMET Cloud

code cloud
IoT Wireless Temperature Sensor for 4 external Pt1000 probes with CINCH connector, powered by Sigfox

IoT Wireless Temperature Sensor for 4 external Pt1000 probes with CINCH connector, powered by Sigfox

code W0841E
Wireless thermometer with built-in sensor, Sigfox IoT

Wireless thermometer with built-in sensor, Sigfox IoT

code W0810
Wireless thermometer, hygrometer barometer, síť Sigfox IoT

Wireless thermometer, hygrometer barometer, síť Sigfox IoT

code W7810
Wireless thermometer with three-channels, IoT Sigfox

Wireless thermometer with three-channels, IoT Sigfox

code W0832
Wireless thermometer with two two-state inputs, Sigfox IoT

Wireless thermometer with two two-state inputs, Sigfox IoT

code W0850
Wireless thermometer, hygrometer, Sigfox IoT

Wireless thermometer, hygrometer, Sigfox IoT

code W3810
Wireless thermometer, hygrometer for external probe, Sigfox IoT

Wireless thermometer, hygrometer for external probe, Sigfox IoT

code W3811
Wireless thermometer, hygrometer, barometer for external probe, Sigfox IoT

Wireless thermometer, hygrometer, barometer for external probe, Sigfox IoT

code W7811
IoT Wireless Temperature, Relative Humidity, CO2 and atmospheric pressure Datalogger with built-in 2G modem

IoT Wireless Temperature, Relative Humidity, CO2 and atmospheric pressure Datalogger with built-in 2G modem

code U4440M

Contact

COMET AFRICA
Suite 32, Cornerstone Business Park
Brackengate, Hamman Road
Brackenfell, 7560
Cape Town, South Africa

E-mail: info@comet-africa.com

Telephone customer support
Phone: +27 21 975 2111

What we do

COMET AFRICA specialises in the supply, design and implementation of cold chain management solutions. With many years’ experience in cold chain management, COMET AFRICA has grown by adding new products to its market offering, namely: SMS notification, GPRS Remote Data Access, Online Data Hosting, IOT sensors and Custom Software for turnkey solutions.

We have a number of distribution points throughout Africa, including Kenya, Uganda, Ghana, Zambia, Botswana and Lesotho.

We offer a wide range of products from Hand Held devices and Loggers, to fully integrated Temperature, Humidity, CO2 and Pressure monitoring, recording, alarming and notifying systems.

The business philosophy of COMET AFRICA is to continually expand by upgrading products and services to keep up with changing technology.

The Success of COMET AFRICA to date has resulted from the delivery of high end products and solutions to the industrial sector with continued attention to customer service.



© Copyright 2024 COMET SYSTEM, s.r.o. | Webdesign by Spaneco
